GSXP12HRN
2 – 4

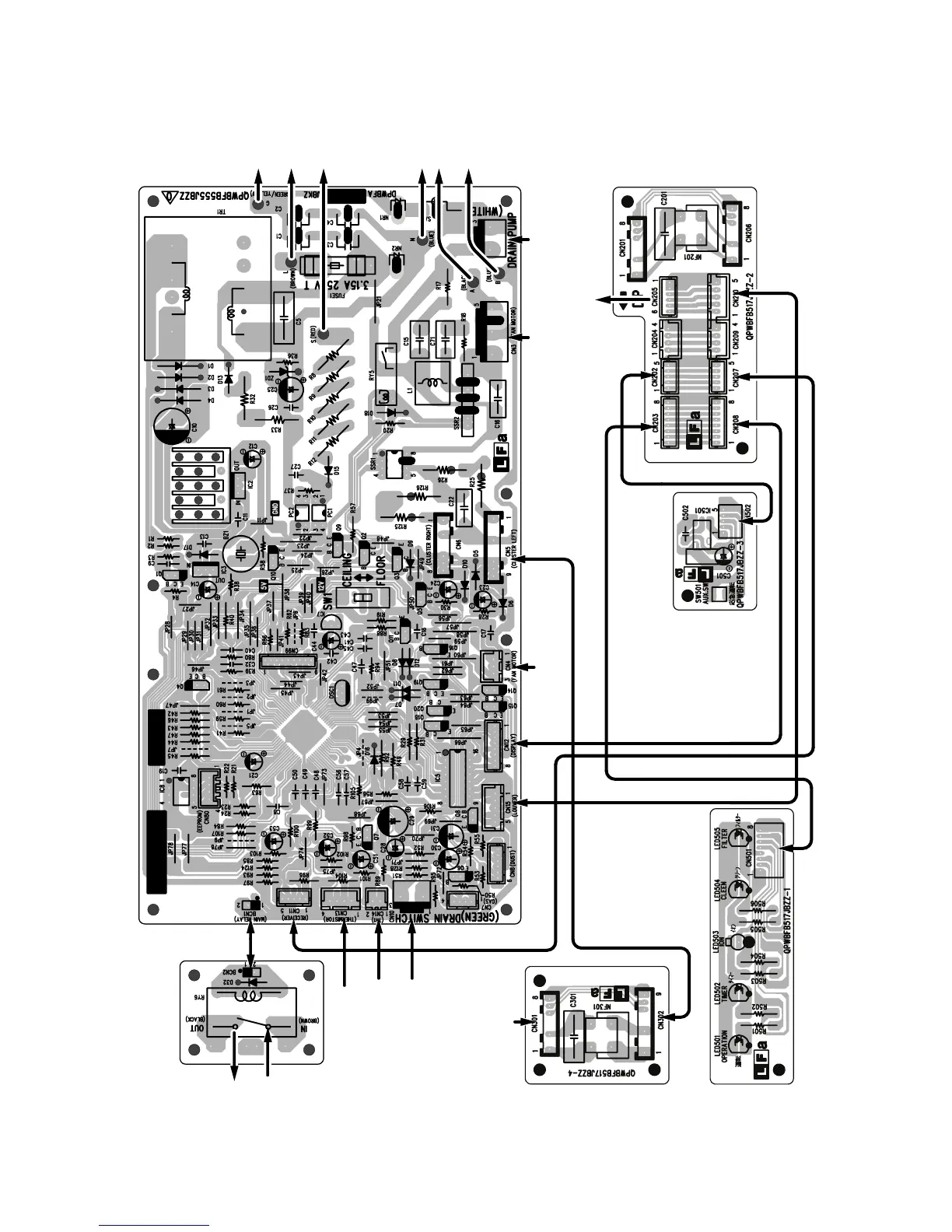

1.2. Printed Wiring Board
from
DRAIN PUMP
(WHITE CONNECTOR)
(OPTION)
from
FAN MOTOR
from
CLUSTER UNIT
(LEFT)
from
FAN MOTOR
to
LOUVER M
from
PIPE THERMISTOR
from
ROOM THERMISTOR
to
CONTROL BOX
to
"L" OF TB1
to
"2" OF TB2
to
FAN M CAPACITOR
to
"N" OF TB1
to
"1" OF TB2
from
"L" OF TB1
}
from
DRAIN PUMP(OPTION)
(GREEN CONNECTOR)
or
SHORTEN CIRCUIT ATACHMENT
}
