GSXP12HRN

5 – 1

GSXP12HRN

Service Manual

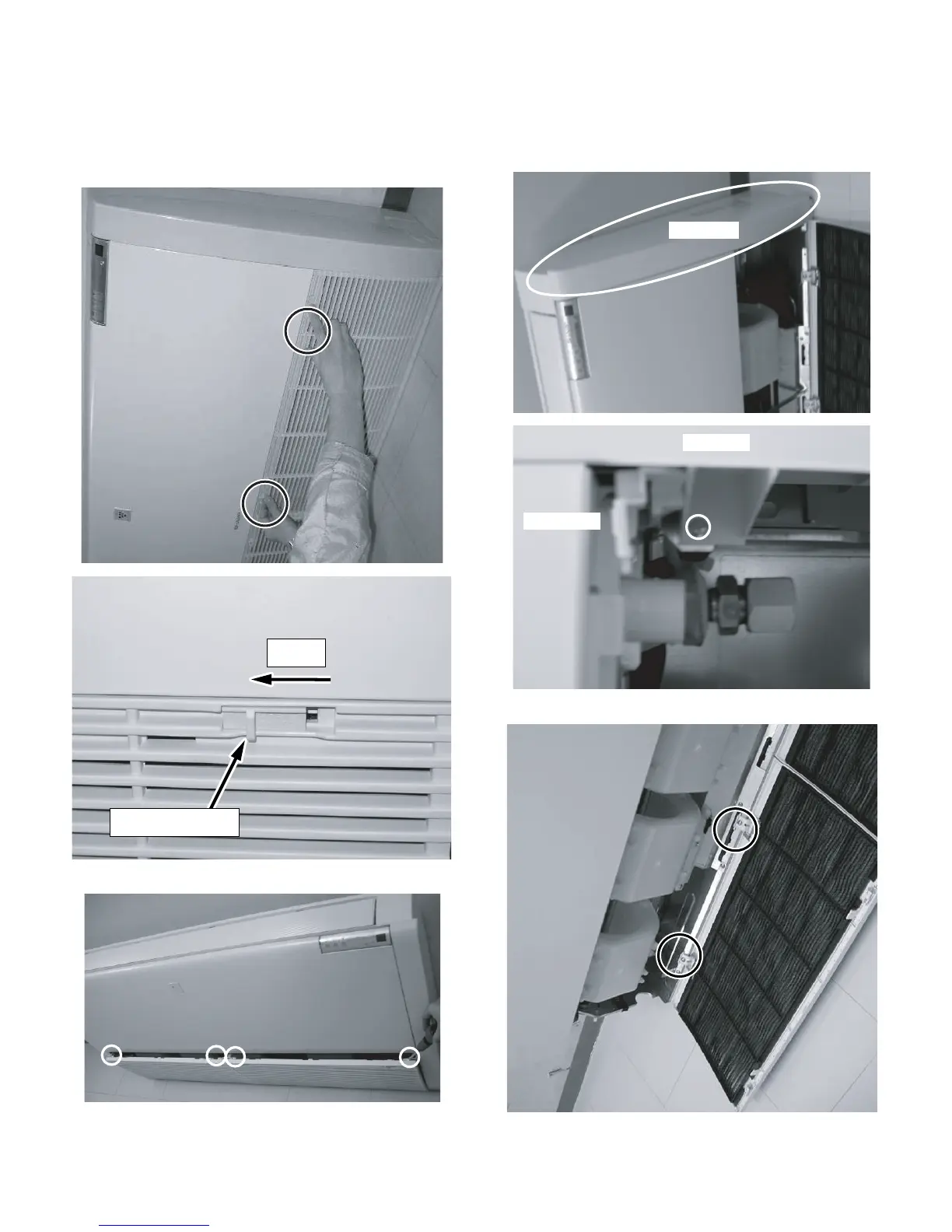

CHAPTER 5. DISASSEMBLING PROCEDURE

[1] DISASSEMBLY OF INDOOR UNIT

CAUTION: DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY SERVICING.

1) Slide 2 Grille hooks to the left, and open the Grille. (Right and left

Grille.)

2) Remove 4 screws fixing the Girlls.

3) Remove the screw fixing the Side cover. (Right and left Side cover.)

4) Remove 2 screws fixing the Grille. (Right and left Grille.)

GRILLE HOOK

Slide

Side Cover

Front Panel
