GSXP12HRN

1 – 4

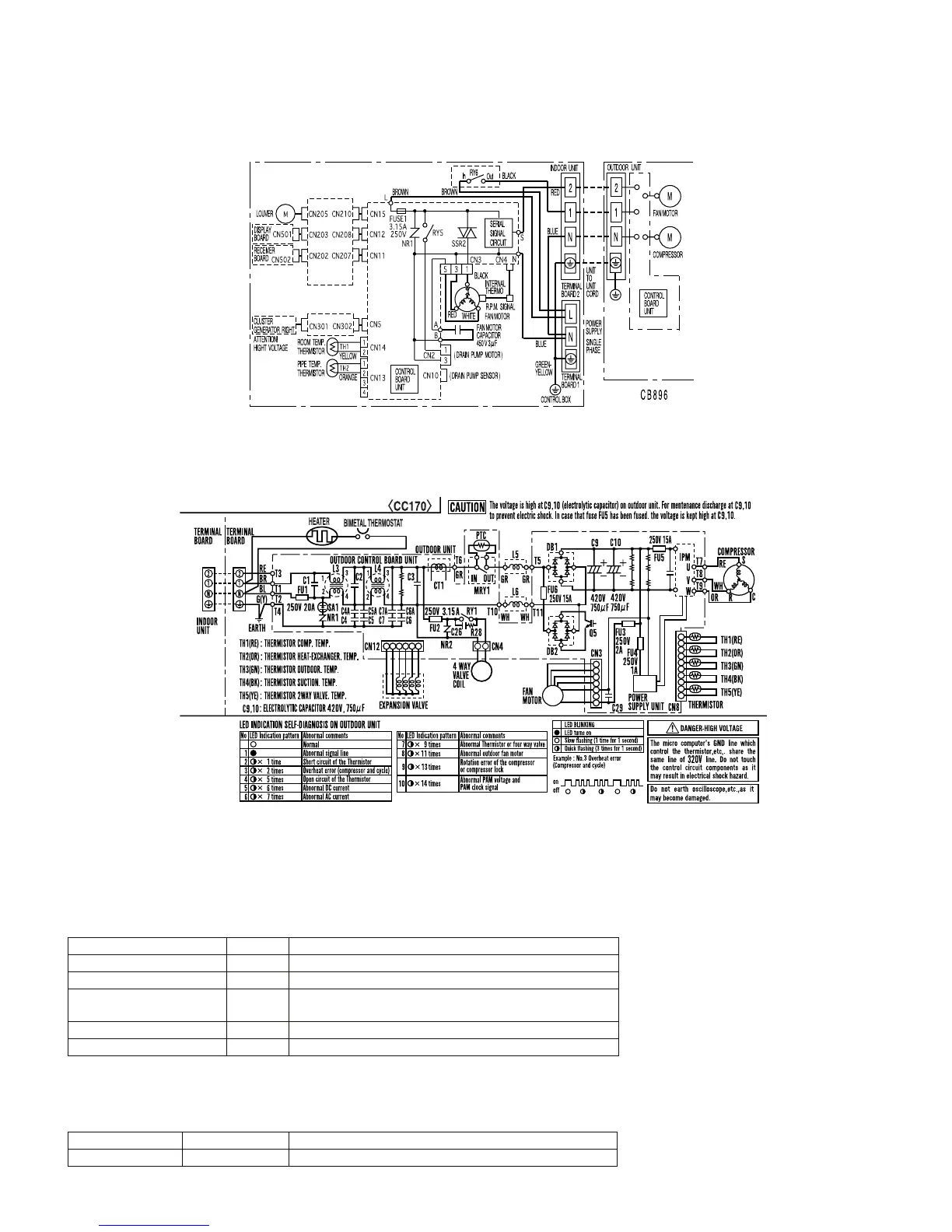

[3] WIRING DIAGRM

1. Indoor unit

1.1. GS-XP12HR-N

2. Outdoor unit

2.1. AE-X12FR-N

[4] ELECTRICAL PARTS

1. Indoor unit

1.1. GS-XP12HR-N

2. Outdoor Unit

2.1. AE-X12FR-N

DESCRIPTION MODEL REMARKS

Indoor fan motor MLB052 220 - 240V, 50Hz

Indoor fan motor capacitor – 450V, 3µF

Transformer – Primary; AC 220 - 240V, 50Hz

Secondary; AC19V, 50Hz

FUSE1 – QFS-GA062JBZZ (250V, 3.15A)

FUSE2 – QFS-GA064JBZZ (250V, 1A)

DESCRIPTION MODEL REMARKS

Compressor 5RS92XDF D.C. brush-less motor
