4 – 1
GSXP12HRN
Service Manual

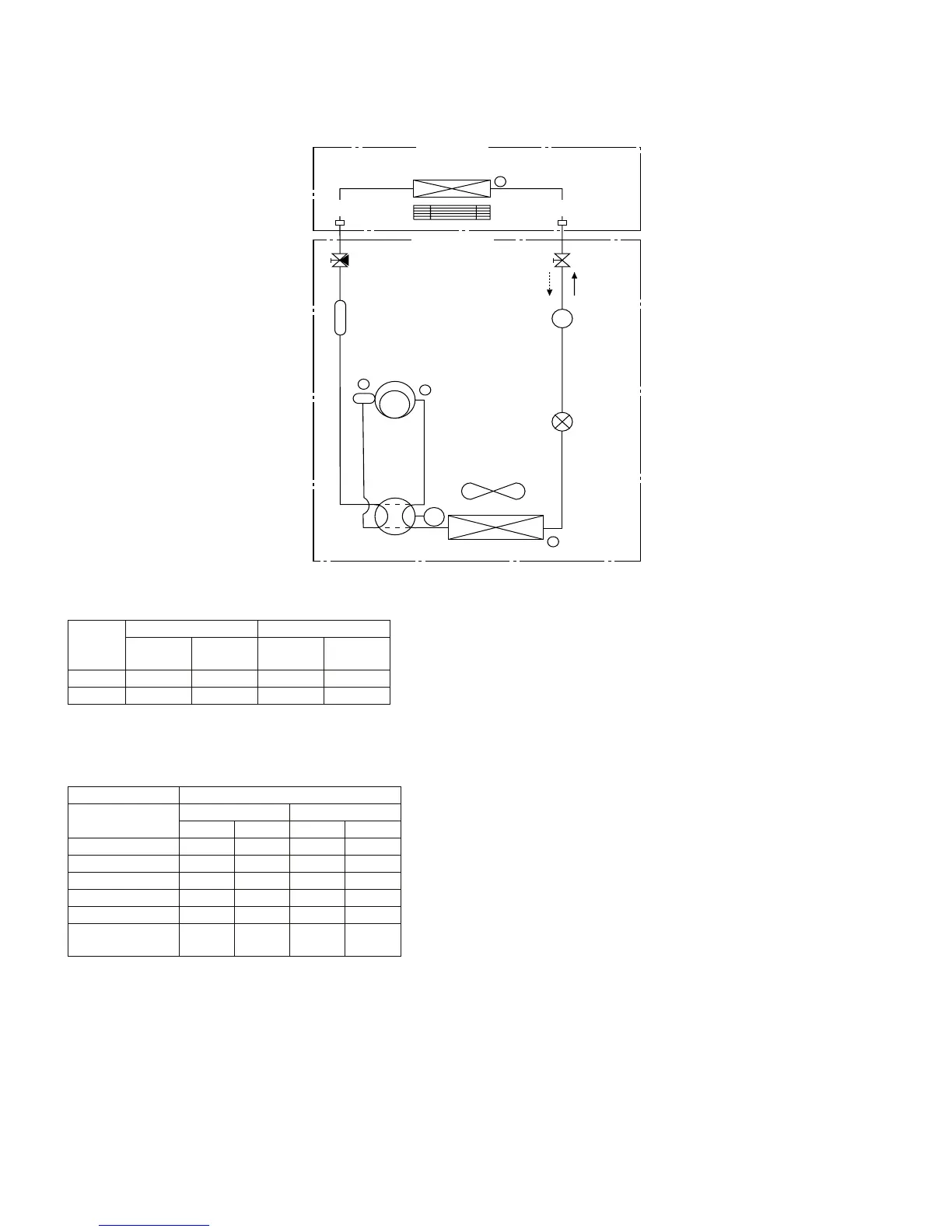

CHAPTER 4. REFRIGERATION CYCLE
[1] FLOW FOR REFRIGERANT
[2] STANDARD CONDITION
* REFRIGERANT PIPE LENGTH 5.0m
[3] TEMPERATURE AT EACH PART AND PRESSURE IN 3-WAY VALVE
[4] PERFORMANCE CURVES
NOTE
1) Indoor fan speed: Hi
2) Vertical adjustment louver "0°”, Horizontal adjustment louver "front"
3) Indoor air temp. : Cooling 27°C, Heating 20°C
4) Power source : 230V, 50Hz
Indoor side Outdoor side
Dry-bulb
Temp.
Relative
Humidity
Dry-bulb
Temp.
Relative
Humidity
Cooling 27°C47%35°C 40%
Heating 20°C– 7°C 87%
Model GS-XP12HR-N
Operation mode MAX. TEST RUN
Cool Heat Cool Heat
No. R.P.M. 5000 5600 2500 2500
1 73.6°C 70.4°C68°C55°C
241°C2°C38°C3°C
314°C34°C16°C27°C
415°C1°C17°C4°C
3-way valve pres-
sure (MPaG)
0.81 2.72 1.03 1.93
Strainer
s
1
4
C
2
Accumulator
3
Expansion
valve
Heating Cooling
Outdoor unit
Condenser
Evaporator
Indoor unit
Reverse valve
Comp-
ressor
Flare coupling Flare coupling
3-way
valve
2-way
valve
Silencer
Coil
