GSXP12HRN
5 – 2

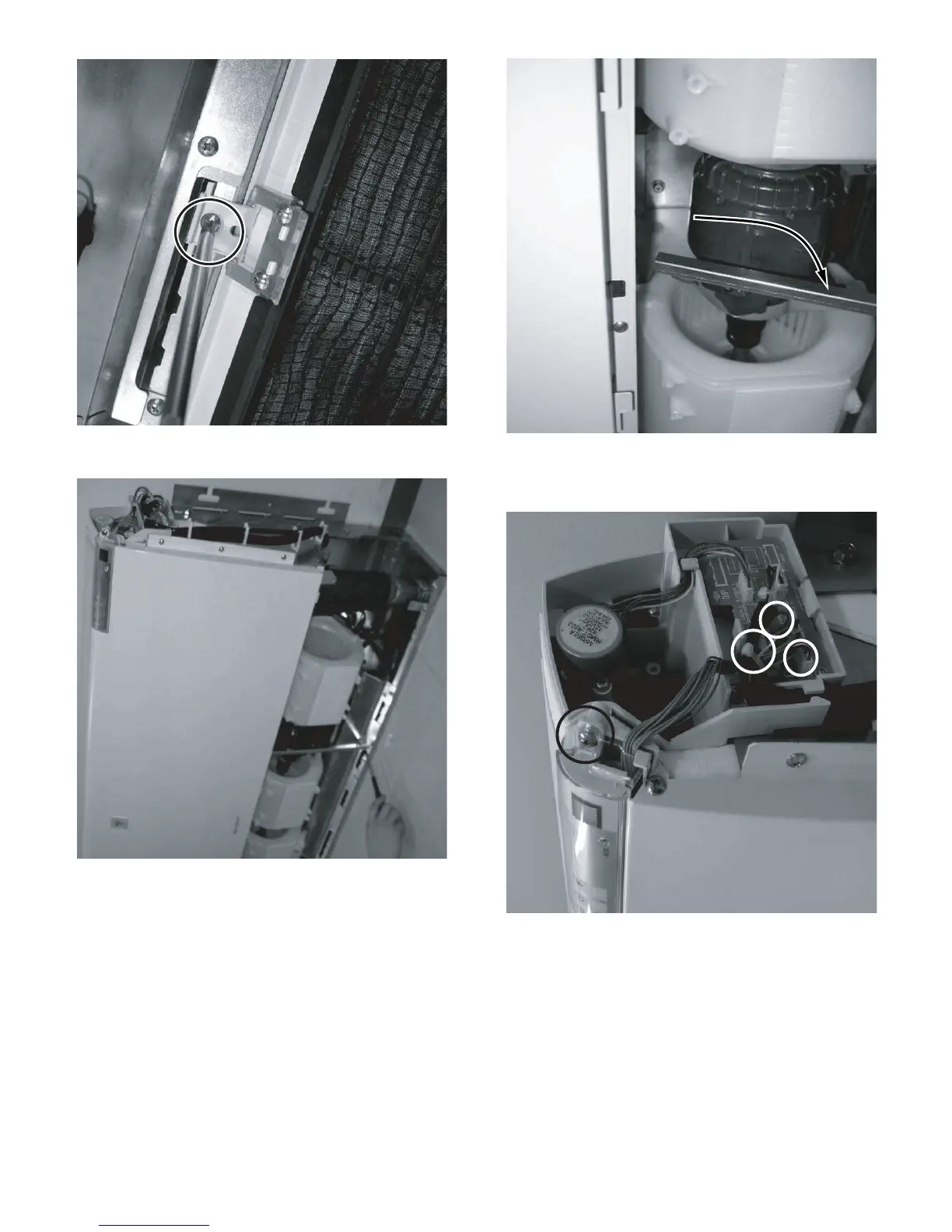

5) Remove 1 screw fixing the Angle.
Remove the Angle to the direction of arrows.
6) Cut the fixing band.
Disconnect 2 connectors (CN202, CN203).
Remove the screw fixing the Display unit.
