MONITOR DESCRIPTION
LINE VOLTAGE SELECTOR: Switch to select the input voltage range of the device (100 to 230V~, 47 to 63
Hz.).
The use of ACCESSORY equipment not complying with the equivalent safety requirements of this equipment may
lead to a reduce level of safety of the resulting system. Consideration relating to the choice shall include:
• Use of the accessory in the PATIENT VICINITY
• Evidence that the safety certification of the ACCESSORY has been performed in accordance to the
appropriate IEC 60601-1 and / or IEC 60601-1-1 harmonized national standard.

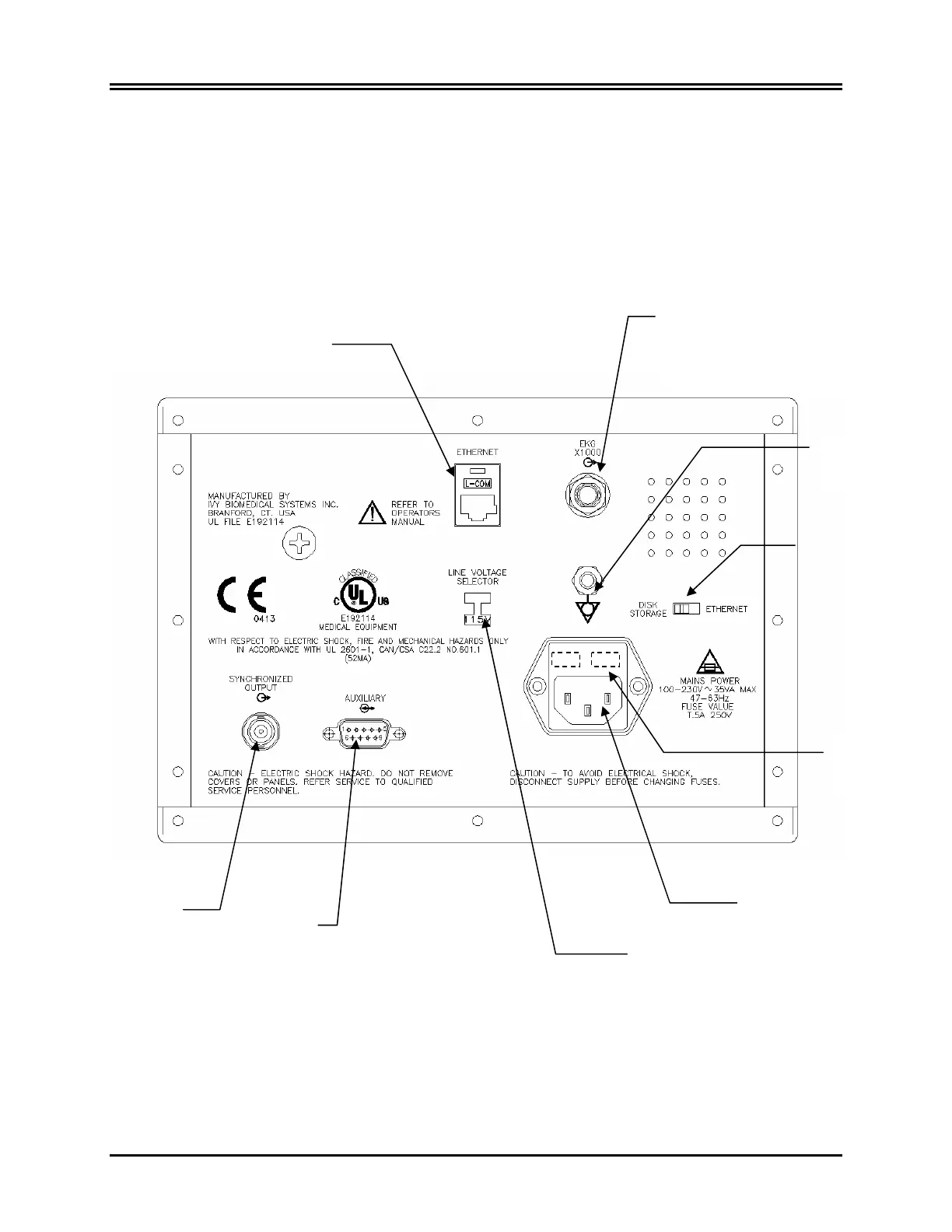

Rear Panel
Data Transfer
Mode Switch
PEQ
Ground
ECG X1000 and
Synchronized
Output
(ECG X500 for GEMS only)
Ethernet Output
(Model 3150 only)
Line Voltage
Selector
Fuses
(Behind the
p
anel
)
Power entry
module
AUXILIARY
(Optional)
BNC connector
Synchronized
Output
Fuse Ratings
The fuses are located behind the cover of the power entry module. To replace the fuses, remove the cover and
replace them only with same type and rating T.5A, 250V (Metric 5x20mm).
Model 3000 Series Service Addendum
17
