J.P. SELECTA AUTESTER ST DRY PV-B print 18L User Manual

INSTRUCTION MANUAL CODE 80416 REV D 12/2023 Page: 38
J.P. SELECTA s.a.u. Autovía A-2 Km 585.1 Abrera 08630 (Barcelona) España Tel 34 937 700 877 Fax 34 937 702 362
e-mail: selecta@jpselecta.es - website: http://www.grupo-selecta.com
5.1.4 Program key (4)
Press this button for 3 seconds, it will enter into the cycle program choice menu, and then please press (1) or (2) buttons to choose
the cycle program as you need.
5.1.5 Start/Stop key (5)
This button is used for conrmation on the start or end the cycle and removing the malfunction of program. After you choosing a
certain program, please press this button to conrm it. Press the machine again will start a working cycle. Keep pressing it for 5
seconds during a program any time, the cycle will be terminated.
CAUTION: PLEASE CONTACT YOUR DISTRIBUTOR OR AUTHORIZED PERSON WHEN ERROR CODE IS DISPLAYED.
6. Operation
6.1 Starting
Switching On
Please connect the power cord before you start the operation. The power switch to control the unit turn on or o. It is
located back right corner of the sterilizer. When you turn the power on, you may see followed window:
Distilled Water Adding
After you connecting to the power and select the corresponding program, if the screen shows an WATER FILLING ARROW
as above, which means the water in the water storage tank is of its lowest level and you have to add water in.
If the ARROW appears on the screen, even you press “start/stop” button, it will not work either, so you need to add distilled
water in until the lowest required level can be reached. You can ll in water automatically or by manual on the top of the
machine.
Automatically: Connect the water tube with the machine left lower corner inlet connector as right picture arrow marked,
please see the picture, and press UP button for 3 seconds; by manual: open up the top cover, to ll in water according to
the pic 3, stop lling in water again when you hear beep sound.
Steam Sterilizer Operation Manual
No. ASS0010
REV-D
Page 28 of 48
Chapter 6 Operation Process
6.1 Switching On

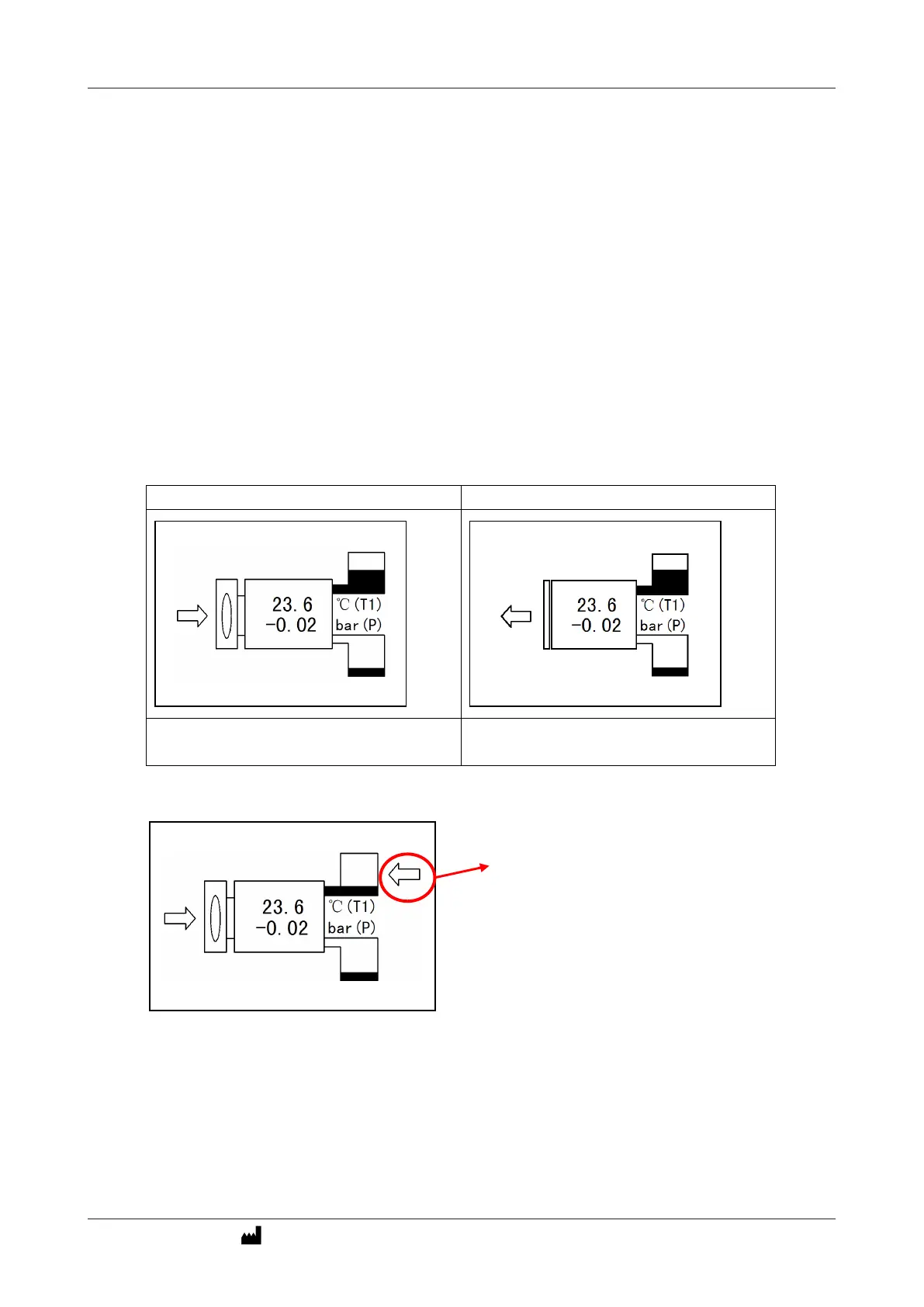

Please connect the power cord before you start the operation. The power switch to control the
unit turn on or off. It is located back right corner of the sterilizer. When you turn the power on,
you may see followed window:
Door is open before turn on power switch
Door is closed before turn on power switch
Close the door and then do next step
Open the door first, then to close the door follow
the information on window, and do next step
6.2 Distilled Water Adding
After you connecting to the power and select the corresponding program, if the screen shows
an WATER FILLING ARROW as above, which means the water in the water storage tank is of
its lowest level and you have to add water in.
If the ARROW appears on the screen, even you press “start/stop” button, it will not work either,
OPEN THE DOOR BEFORE WORKING
CLOSE THE DOOR
OPEN THE DOOR BEFORE WORKING
OPEN THE DOOR
OPEN THE DOOR BEFORE WORKING
CLOSE THE DOOR
Distilled water tank
empty alarm
Steam Sterilizer Operation Manual
No. ASS0010
REV-D
Page 28 of 48
Chapter 6 Operation Process
6.1 Switching On
Please connect the power cord before you start the operation. The power switch to control the
unit turn on or off. It is located back right corner of the sterilizer. When you turn the power on,
you may see followed window:
Door is open before turn on power switch
Door is closed before turn on power switch
Close the door and then do next step
Open the door first, then to close the door follow
the information on window, and do next step
6.2 Distilled Water Adding
After you connecting to the power and select the corresponding program, if the screen shows
an WATER FILLING ARROW as above, which means the water in the water storage tank is of
its lowest level and you have to add water in.
If the ARROW appears on the screen, even you press “start/stop” button, it will not work either,
OPEN THE DOOR BEFORE WORKING
CLOSE THE DOOR
OPEN THE DOOR BEFORE WORKING
OPEN THE DOOR
OPEN THE DOOR BEFORE WORKING
CLOSE THE DOOR
Distilled water tank
empty alarm
