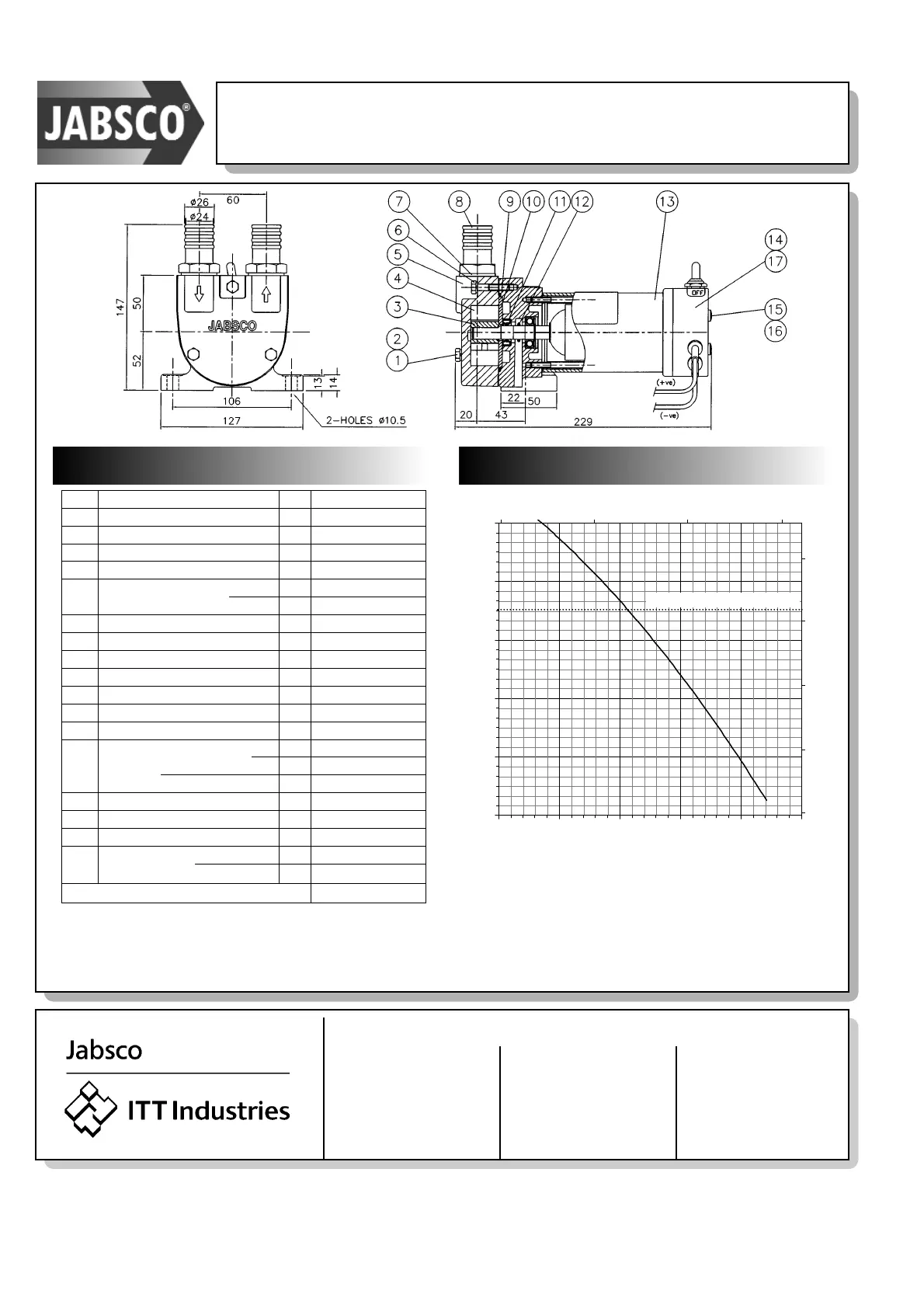

Key Description Qty Part No.
1 Bolt
M6 x 42
2 X3000-191F
2 Spring washer 3 X3081-091F
3 Rotor 1 50242-0000
4 Vane* 4 Use SK421-0000
5 Body
BSP
1 50244-2000
NPT
1 50244-9000
6 Bolt
M6 x 30
1 X3000-186F
7 Sealing Washer 2 SP1613-1415
8 Port adaptor 2 23543-1000
9 O-Ring* 1 X4020-264A
10 Backplate 1 50246-0000
11 Seal* 1 SP2701-0504
12 O-Ring* 1 X4020-211A
With Switch
12V
1 98012-9295B
13 Motor & Fuse
24V
1 98012-9296B
Basic
24V
1 98012-9297B
14 Switch box assembly 1 96070-6020B
15 Screw
(
Pack 10) 2 91046-6001B
16 Sealing washer
(Pack 10) 2 91608-6001B
17 Fuse
(Pack 10)
20 Amp (12V)
1 92005-6020B
10 Amp (24V)
1 92005-6010B
Service kit contains items marked * SK421-0000
Note
All performance information is based on diesel fuel at 20°C (68°F).
On production product, this may vary by up to 10%.
Maximum recommended total head of diesel fuel is 10 metres.
Current Draw 12V = 12 Amps @ 3m head
24V = 6 Amps @ 3m head
Maximum Current 12V = 20 Amps
24V = 10 Amps
Safety
Do not use for pumping petrol, gasoline or products with a flash point
below 37°C (99°F).
Do not dry run.
01/03
VR050 Diesel Refuelling Pump
USA UK GERMANY
Jabsco Jabsco Jabsco GmbH
20 Icon Bingley Road Oststrasse 28
Foothill Ranch Hoddesdon 22844 Norderstedt
CA 92610 Hertfordshire, EN11 0BU
Tel : +1 949 609 5106 Tel : +44 (0) 1992 450 145 Tel : +49 (0) 40 53 53 73 0
Fax : +1 949 859 1153 Fax : +44 (0) 1992 467 132 Fax : +49 (0) 40 53 53 73 11
Warranty: All products of the company are sold and all services of the company are offered subject to the company’s warranty and terms and conditions of sale, copies of which will be furnished upon request.
The information provided herein is for guidance only, it does not constitute a guarantee of the performance or specification of any individual product or component.
©Copyright 2003 ITT Industries - Jabsco
43010-0021
Parts List
