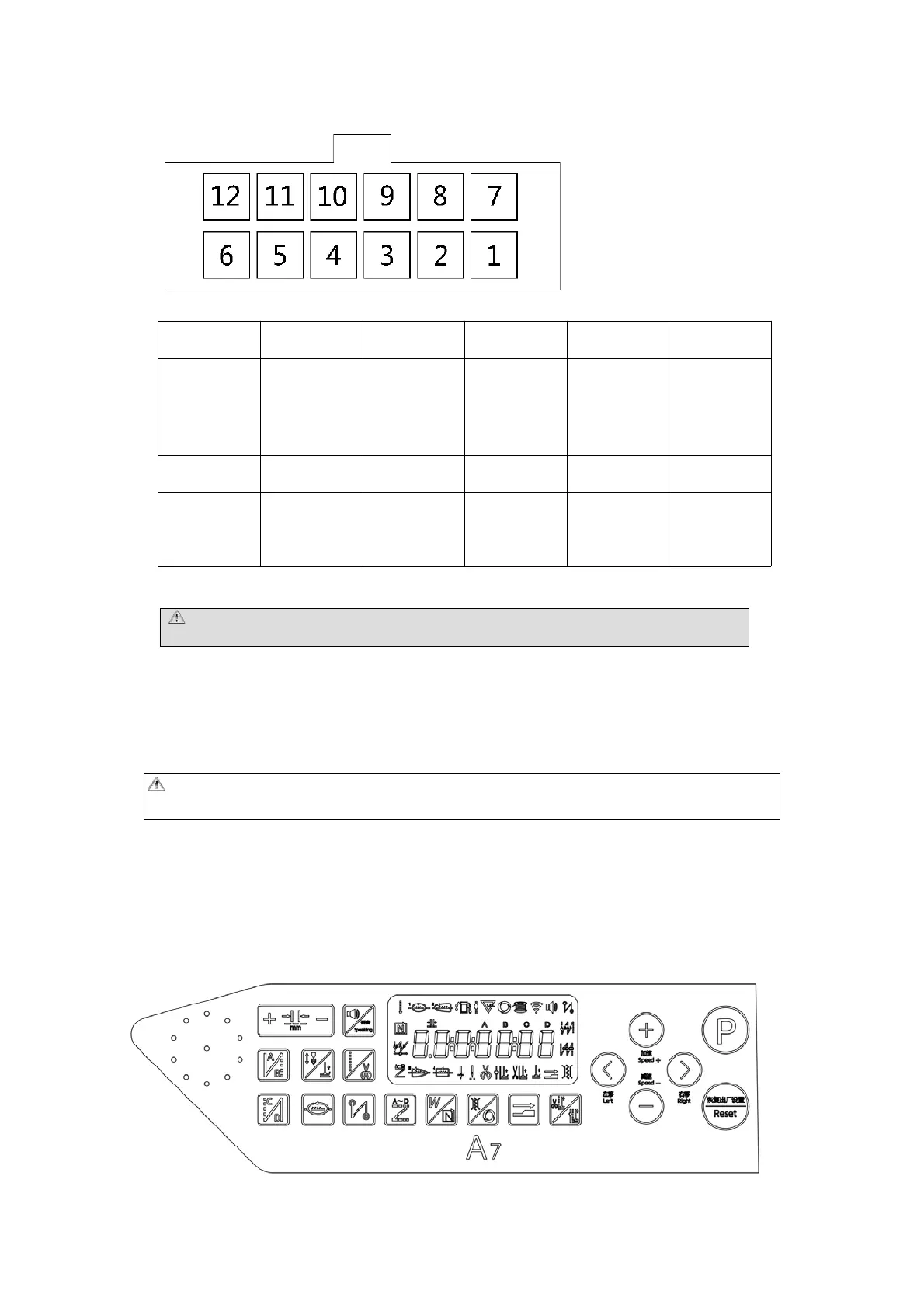

1.2.3 12P function port corresponding table
1.3 Wiring and Grounding
We must prepare the system grounding project, a qualified electrical engineer is requested for the construction. Product is
energized and ready for use; you must ensure that the power outlet the AC input is securely grounded. The grounding wire is
yellow and green lines, it must be connected to the grid and reliable security protection on the ground to ensure safe use, and
prevent abnormal situation.
2 Operation Panel Instructions
2.1 Operation Panel Display Instruction
According to the system working state, the LCD module of operation panel will display the current sewing mode,
parameters, start / end back tacking, and presser foot, needle position, soft start sewing etc. Function mark of the operation
panel is as follows:
123456
Wire cutting
Electromagnet
power supply
+33V
//Loose line
Electromagnet
power supply
+33V
Lifting foot
Electromagnet
power supply
+33V
Clamp line
Electromagnet
power supply
+33V
7 8 9 10 11 12
Wire cutting
electromagnet
signal
//Loose line
Electromagnet
signal
Lifting foot
Electromagnet
signal
Clamp line
Electromagnet
signal
：If it is difficult for inserting plug into socket, please check whether they are matching with each other, or the
inserting direction is correct!
： All power lines, signal lines, ground lines, wiring not to be pressed into other objects or excessive distortion, to
ensure safe use!
