2
/
8

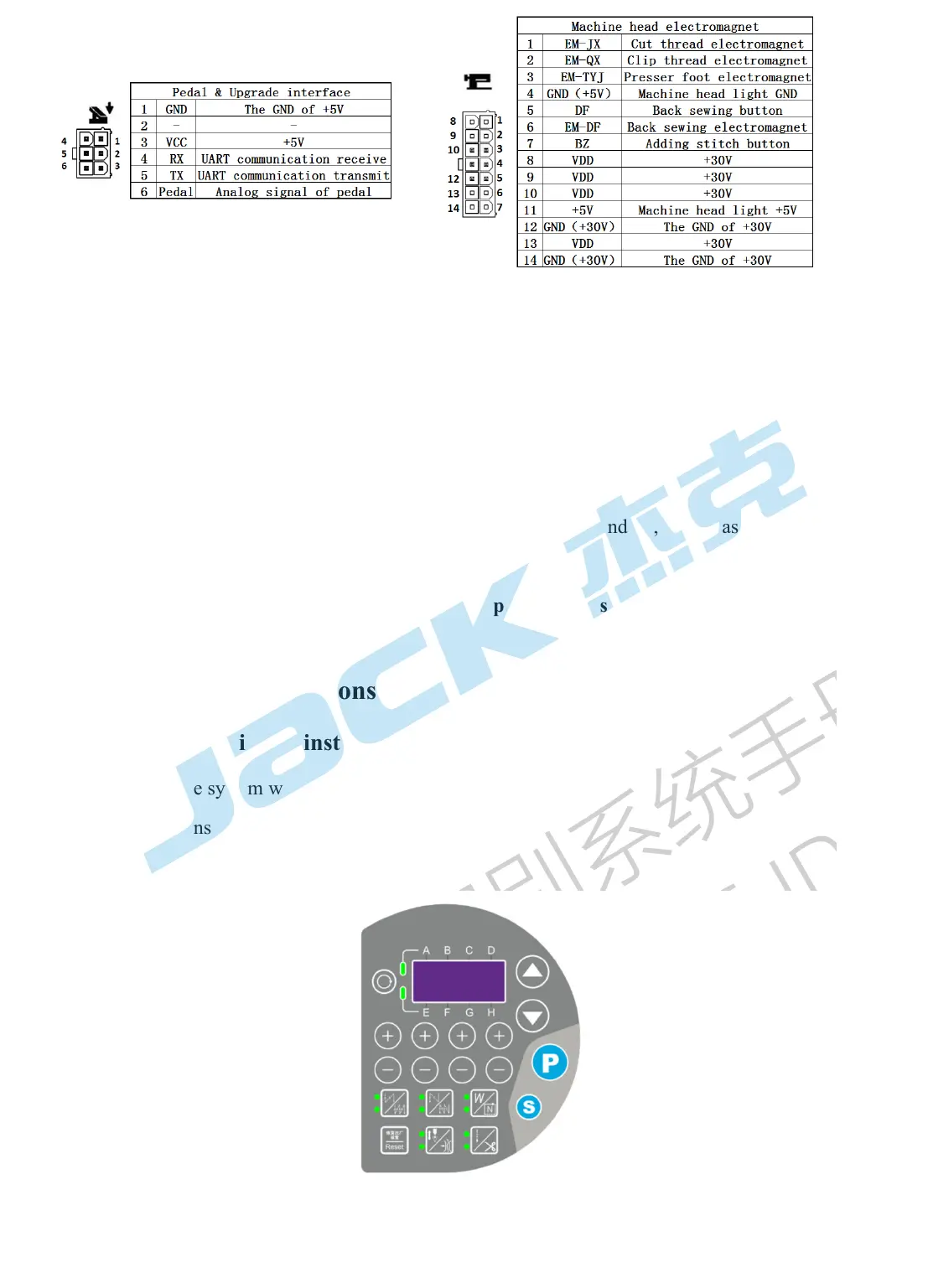

1-2 Controller interface definition
Note: please check if the plug and socket match or the direction of the plug is right when we can’t
plug in under normal condition.
1.3 Wiring and grounding
Please make qualified grounding system with professional technicians. Make sure the AC plug is
grounded safely before power on. The yellow and green wire is for grounding, and please make sure it is
grounded before operating thus can prevent abnormal conditions.
Note: please don’t twist or press while grounding power wire, signal wire, grounding wire etc for
making sure safety
2 Operation panel instructions
2.1Operation panel display instructions
According to the system working state, The Digital pipe of the operation panel will display the current
sewing status Contains (stop needle position, thread trimming indicaton). The operation panel looks as
follows.
2-1 operation panel
