© 2020 Jackson Labs Technologies, Inc. 7
LTE-Lite User Manual

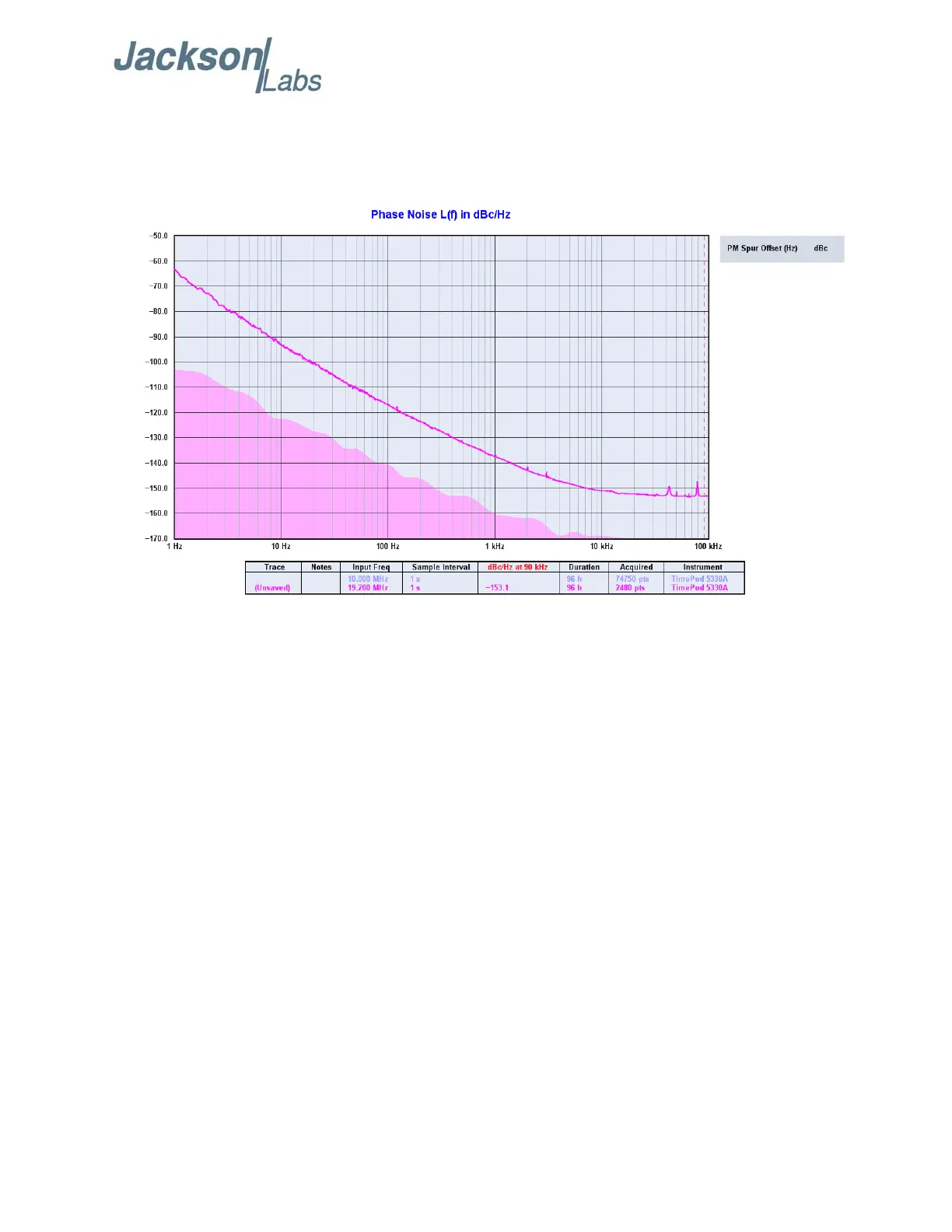

The following plot shows a typical Phase Noise plot of the TCXO buffered RF output for the
LTE-Lite Evaluation Board. The unit had been operating for 1 day, and was completely shielded from
airflow by placing the unit into an airtight enclosure.
Figure 2.5 Typical Phase Noise plot of 19.2MHz LTE-Lite Evaluation Board
