LTE-Lite User Manual

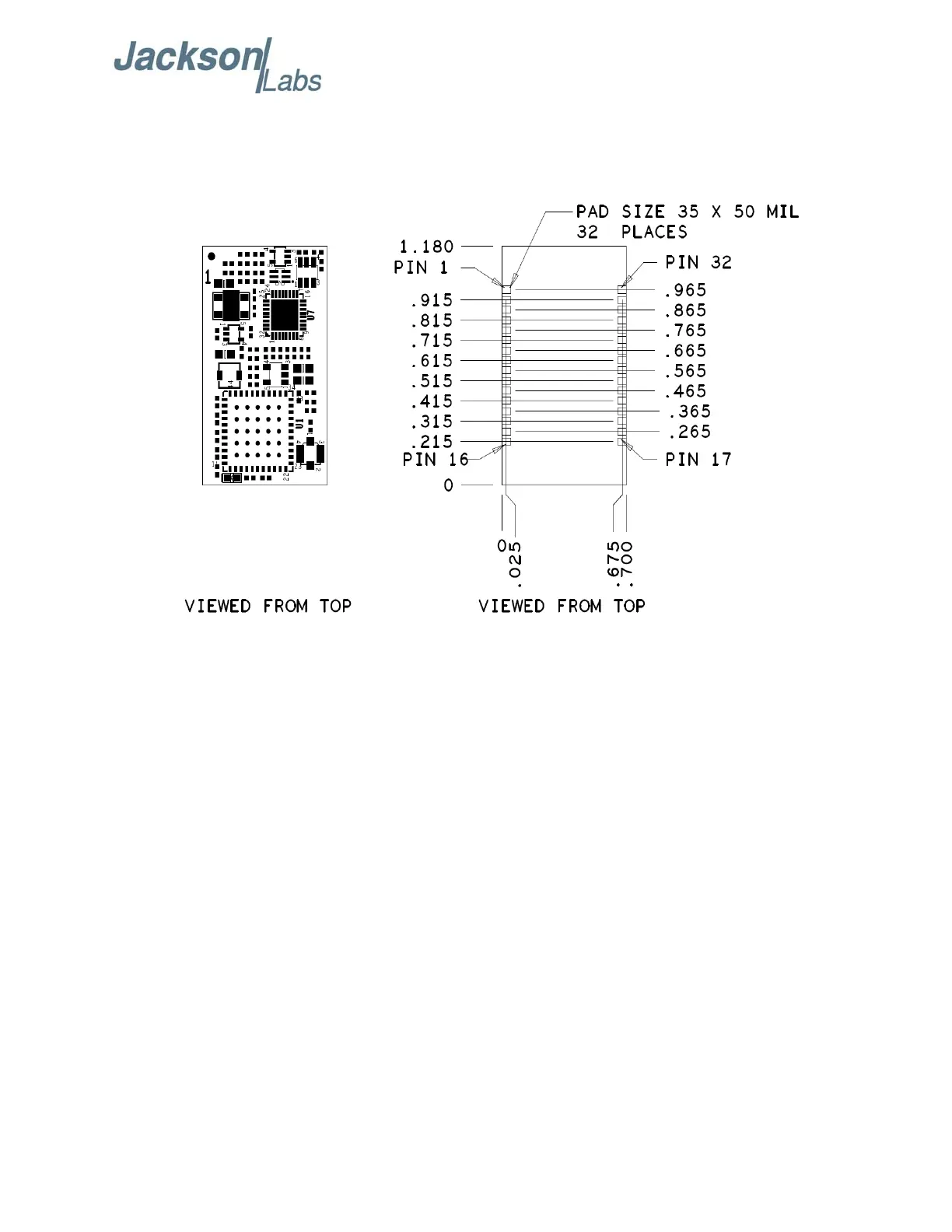

2.1.7 LTE-Lite SMT Module Mechanical Dimensions

Figure 2.7 Mechanical dimensions of the LTE-Lite SMT Module

2.1.8 LTE-Lite Evaluation Board Schematics

The following schematics may be used as an example of how to connect the LTE-Lite SMT Module,

and to maximize the features of the LTE-Lite SMT Module. Please note that IC U4 is the actual

LTE-Lite SMT module.
