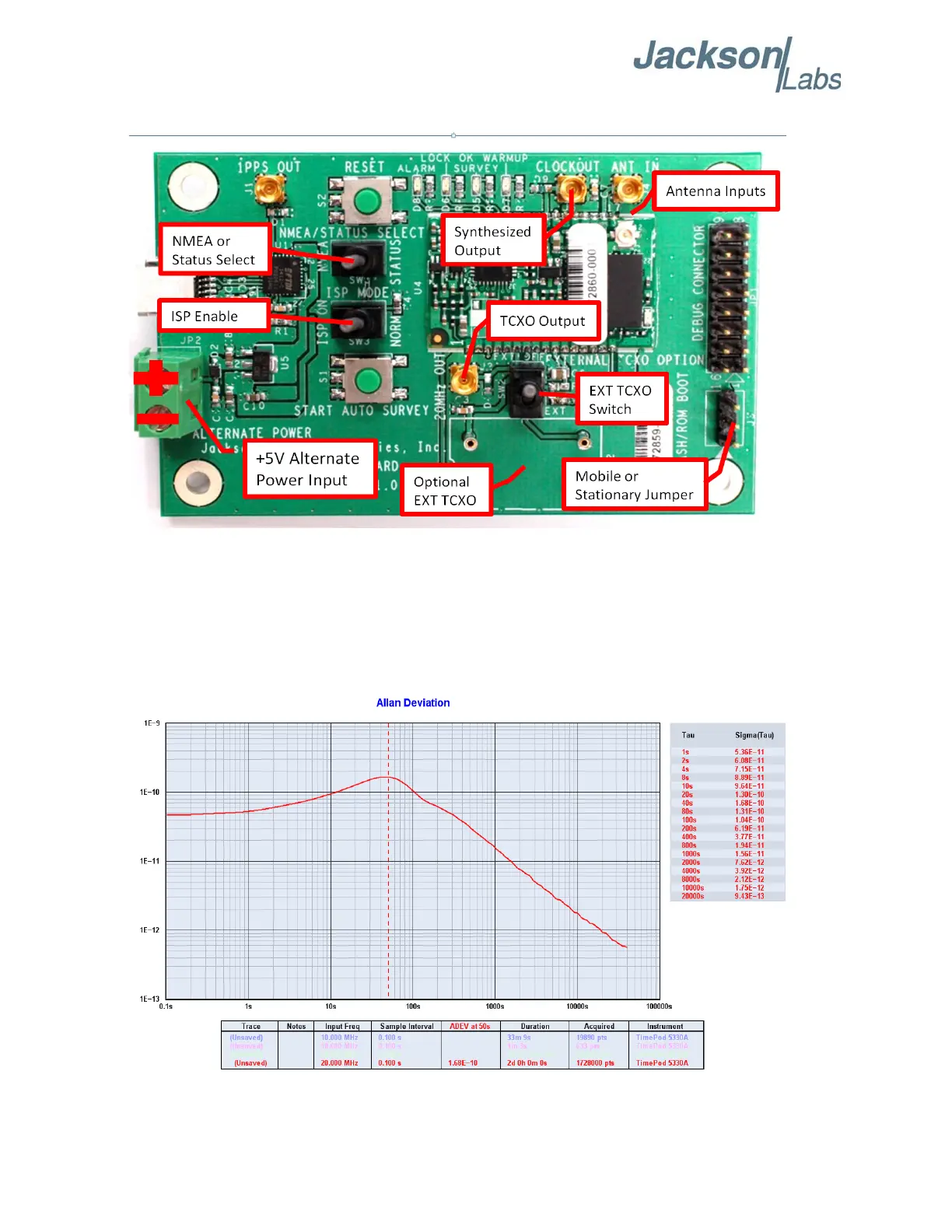

Figure 2.3 Major connections of the LTE-Lite Evaluation Board
2.1.5 Typical Phase Noise and ADEV Plots
The following plot shows a typical ADEV plot for the LTE-Lite Evaluation Board. The unit had been
operating for 5+ days, has not been moved or vibrated in any way, and was completely shielded from
airflow by placing the unit into an airtight enclosure.
Figure 2.4 Typical ADEV plot of 20MHz LTE-Lite Evaluation Board
