2.3.3 Using the LTE-Lite SMT Module Synthesized Frequency
Output
The following schematics show an example of how to use the un-buffered synthesized RF output of
the LTE-Lite SMT Module.

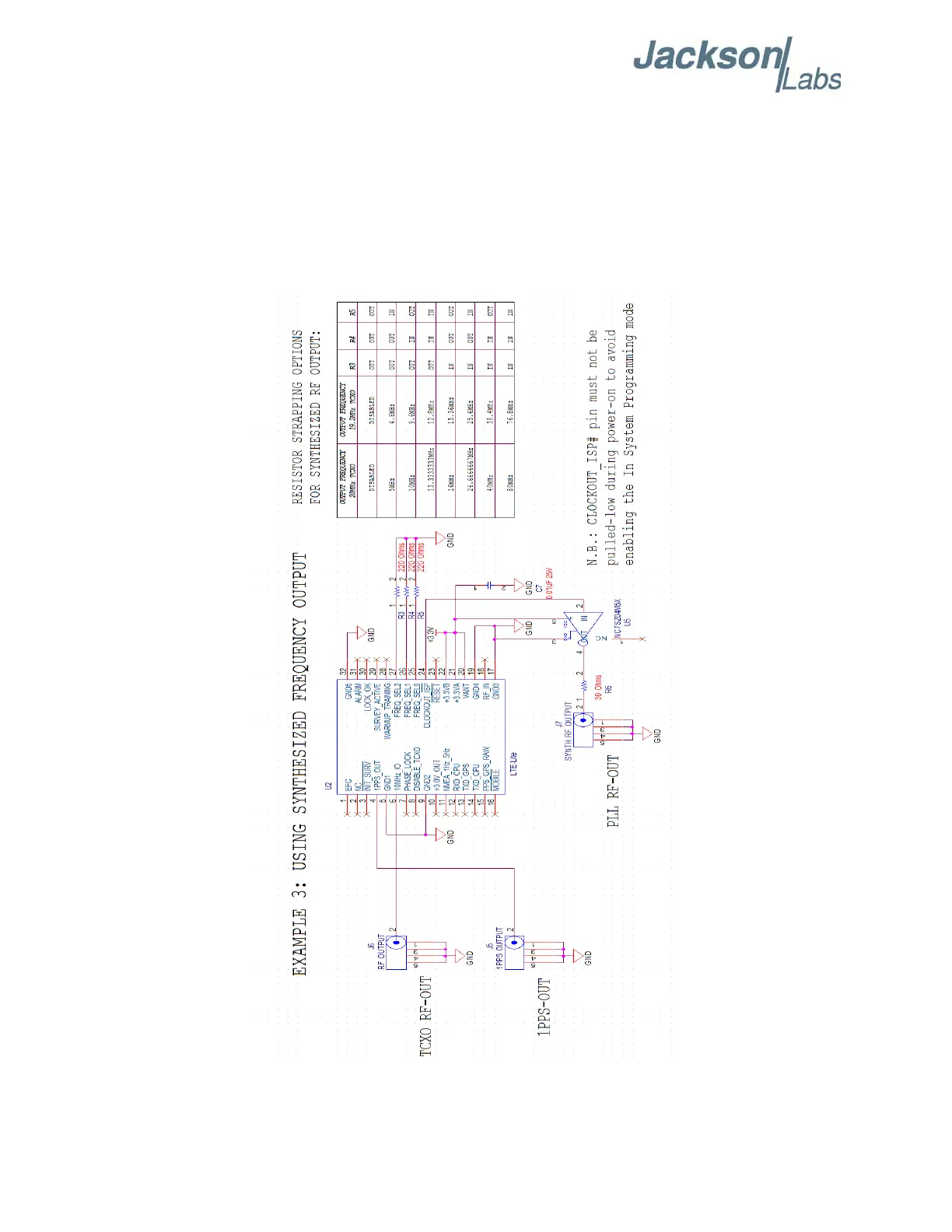

Figure 2.11 Using the synthesized frequency output of the LTE-Lite SMT Module
