Jackson Avenger HT - Control Panel Weldment Assemblies

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: N/A
SECTION 5: PARTS SECTION
20

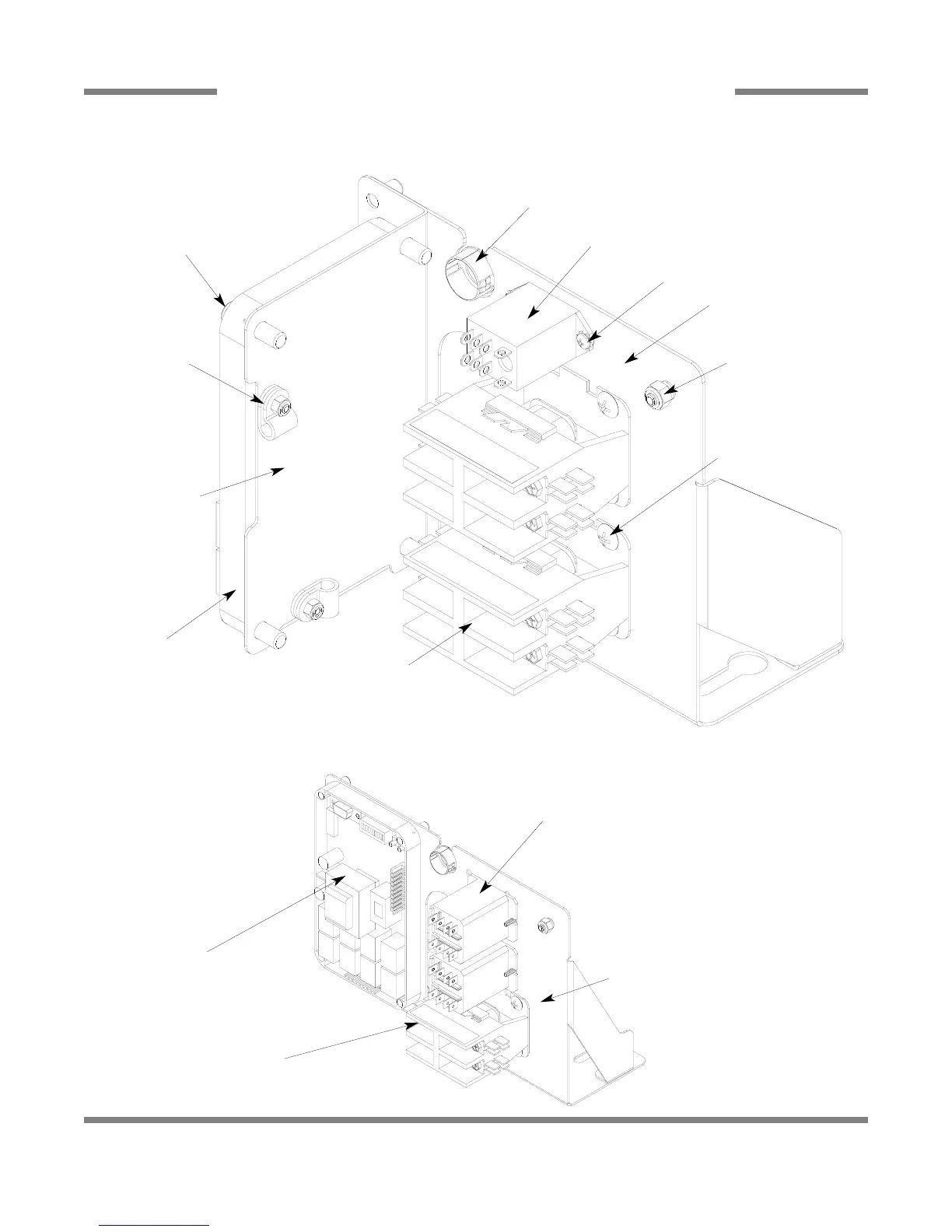

CONTROL PANEL WELDMENT ASSEMBLIES
Control Panel Weldment
05700-003-31-48
Bushing, Snap
05975-003-35-21
Universal Timer
05945-003-33-09
Screw, 10-32 x 1”
(4 per Asm)
05305-002-19-42
Timer Mounting
Bracket,
Avenger™HT Only
05700-003-36-05
Screw, 10-32 x 3/8”
05305-173-12-00
Contactor, 240V
(2 per Avenger™ HT Asm.)
05945-002-74-20
Relay, 240V
05945-111-89-75
Screw, 6-32 x 3/8
05305-002-25-91
Locknut, 10-24 w/
Nylon Insert
(1 per Asm)
05310-373-01-00
P Clamp 1/4”
05975-002-61-42
Locknut, 6-32 w/ Nylon
Insert
05310-373-03-00
Complete Control Panel
Weldment Assembly
Avenger™HT
05700-003-31-47
Complete Control Panel
Weldment Assembly
Avenger™LT
05700-003-46-74
Unless specified here,
other components are the
same as above.
Avenger™HT Complete Control Panel Assembly
Avenger™LT Complete Control Panel Assembly
Contactor, 110V
(1 per Avenger™LT Asm.)
05945-109-05-69
Control Panel Weldment
05700-003-46-73
Relay, 20A
05945-002-90-51
Universal Timer
05945-003-33-09
