Jackson Avenger HT - Wash Motor;Drain Plumbing; Avenger LT Wash Manifold Assembly

Avenger™ Series Technical Manual 7610-003-34-01
Issued: 10-07-2007 Revised: 11-20-2007
SECTION 5: PARTS SECTION
33

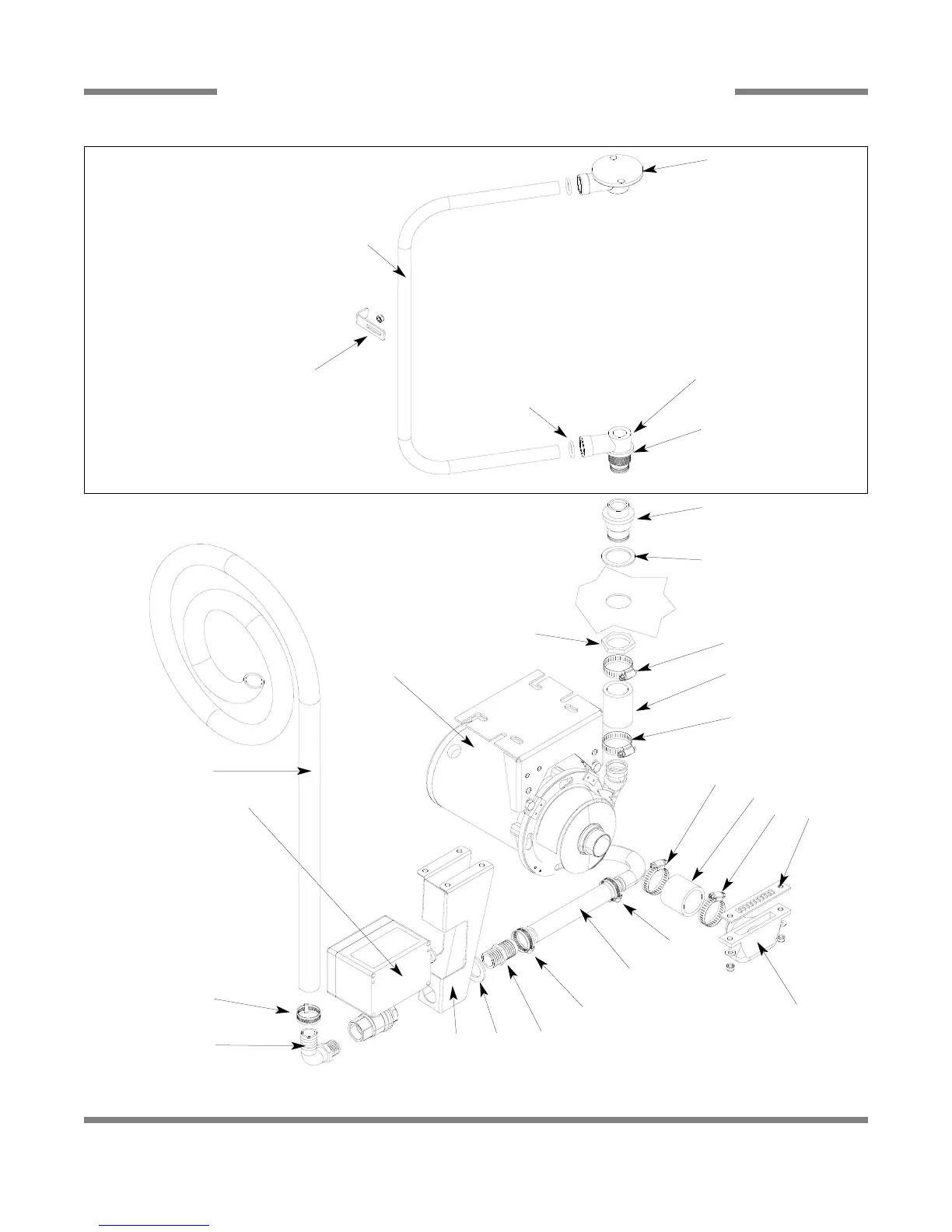

WASH MOTOR/DRAIN PLUMBING/ AVENGER™LT WASH MANIFOLD ASSEMBLY
2
1
3
4
4
5
6
4
See Motor and Pump
Assembly Page
14
9
9
10
11
12
13
Ball Valve Assembly
AVENGER™LT 115V &
AVENGER™HT 480V:
04730-003-34-60
AVENGER™HT 240V:
04730-003-33-64
15
9
4
7
8
For the Avenger™LT
replace item 1 below with
this manifold.
Area within this box is an overall
view of the Avenger™LT wash
manifold assembly.
18
16
1a
17
19
