TRI-KING

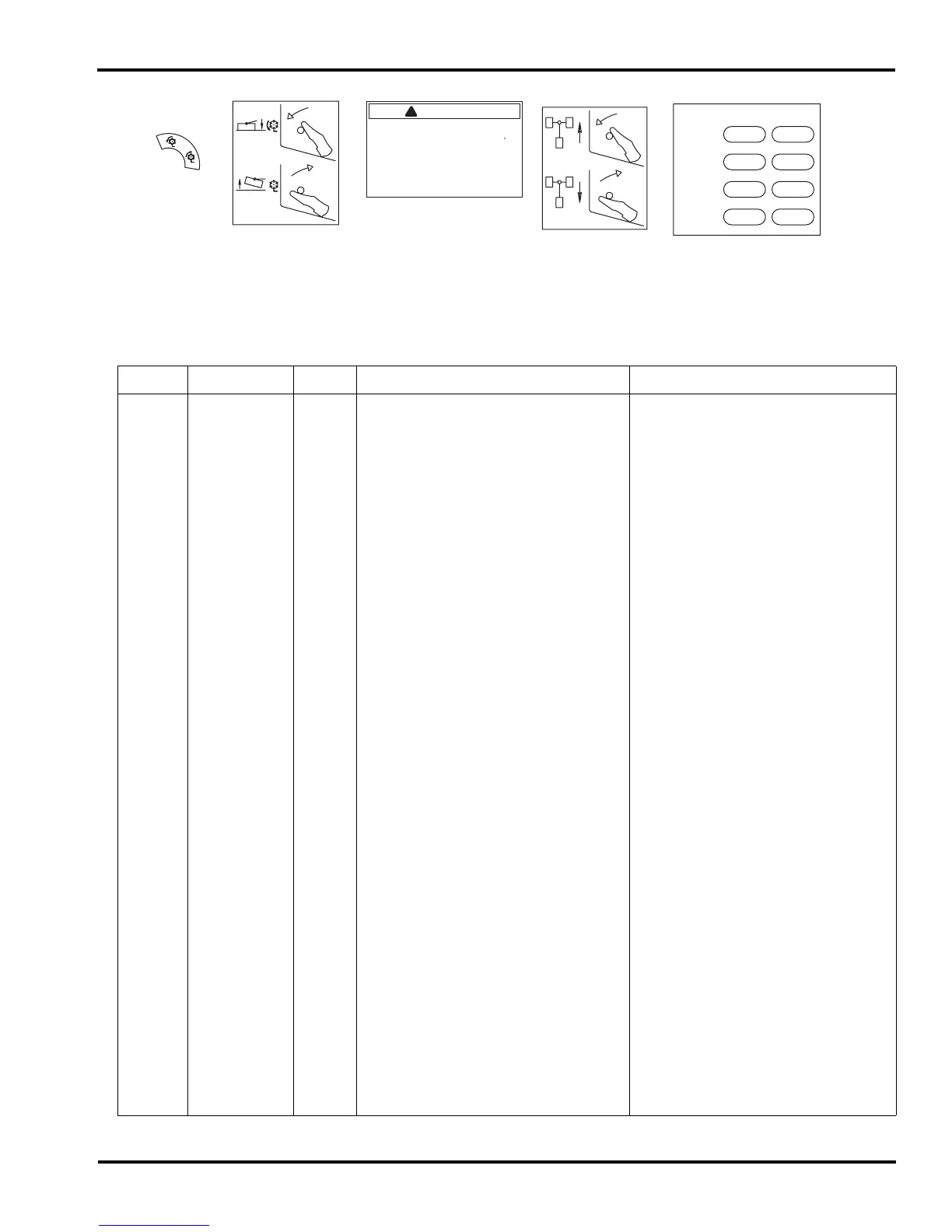

Item Part No. Qty. Description Serial Numbers/Notes
1
367160 1 Decal, Battery Caution
2 367159 1 Decal, Battery Danger
3 2812032 1 Decal, Hydraulic Fluids
4 361615 1 Decal, Oil Overfill
5 4124358 1 Decal, Right Side Stripe
6 4124357 1 Decal, Left Side Stripe
7 4124790 1 Decal, Jacobsen 12”
8 4125789 1 Decal, Jacobsen 10”
9 3004653 1 Decal, Operating Instructions Gas
9 3003590 1 Decal, Operating Instructions Diesel
10 3002053 1 Decal, Backlap Switch
11 340623 1 Decal, Spanish Caution
12 3003349 1 Decal, Lift/Lower
13 3003594 1 Decal, Caution
14 3003348 1 Decal, Forward/Reverse
15 3004983 1 Decal, Dash Overlay Gas
15 3003350 1 Decal, Dash Overlay Diesel
16 3003606 1 Decal, Fuse Panel
17 363995 1 Decal, Antifreeze Diesel
18 339237 1 Decal, Heat Warning Located on Hood Pivot
19 365956 1 Decal, Radiator Warning Diesel - Located on Radiator
20 4124759 1 Decal, Jacobsen Emblem
21 4111408 1 Decal, Biodegradable Fluids
22 4124690 2 Decal, Tri-King 1800G Gas
22 4124691 2 Decal, Tri-King 1900D Diesel
23 3004207 1 Decal, Opening Hood
24 REF 1 Serial Plate On Left Front Wheel Motor Mount
25 4125772 1 Decal, Patent
26 4117468 1 Decal, Noise 105 dB
27 2811597 1 Decal, Parking Brake Light
28 4124721 1 Decal, GreensCare
> 29 4141266 1 Decal, Oil
Read manual before operating machine.
Use caution while operating on slopes, especially when grass
is wet. Wet grass reduces traction and steering control
● Do not use this machine on slopes greater than 16.2
● Always keep reels in mow position when operating
on slopes and travel at reduced speeds.
● Do not make sharp maneuvers when on slopes.
● Keep shields in place and hardware securely fastened.
● Before you clean, adjust or repair this equipment,
disengage all drives, stop engine and apply brake.
● Keep hands, feet and clothing away from moving parts.
● Never carry passengers.
● Keep b
ystanders away.
!
WARNING
FUSE PANEL
SPARE
SPARE
SPARE
SPARE
3
3
7.5
7.5
GAGES
3WD
VALVE
REEL
CLUTCH
LIGHTS
(OPTIONAL)
12
13
14
10
16
