106
> Change from previous re
vision
LF 3400 / LF 3800

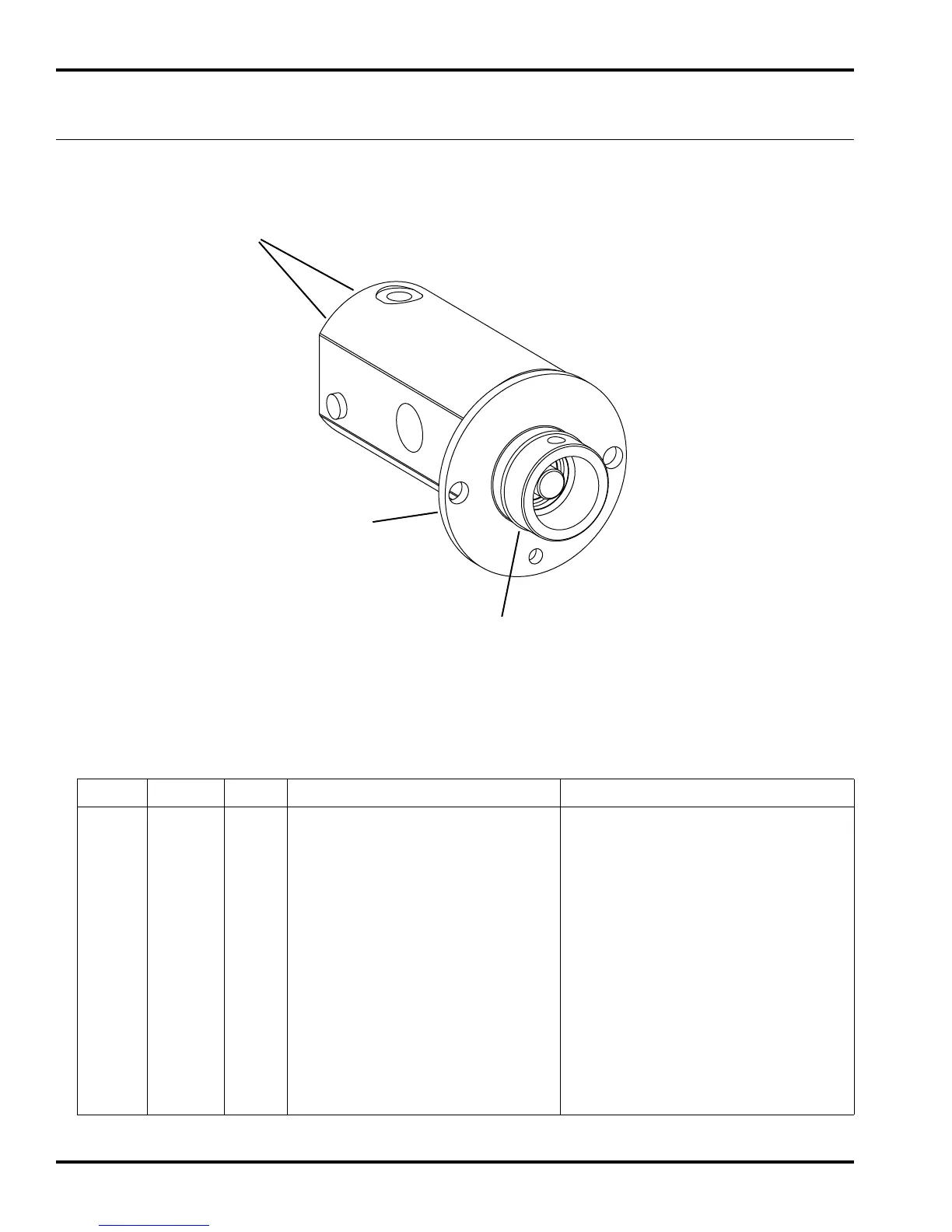

53.1 Reel Motor
Part Number 2822503
Serial No. All
Item
Part No.
Qty.
Description
Serial Numbers/Notes
1
5001068
1
O-Ring
2
5003140
2
Relief Valve
3
5003688
1
Face Plate
5003589
1
Seal Kit
1
2
3
105
107
Table of Contents
Table of Contents
2
Service Parts
3
Safety
4
Operating Safety
4
Important Safety Notes
5
Specifications
6
Product Identification
6
V1305-E Engine
6
V1505-E Engine
6
V1505-TE Engine
7
Tractor
7
Weights and Dimensions
7
Cutting Units
8
Accessories
8
Support Literature
8
Adjustments
9
General
9
Bedknife-To-Reel
9
Bedknife Adjustment
10
Cutting Height
10
Flash Attach
11
Down Pressure
11
Mow Speed
12
Belt
12
Brakes
12
Neutral Adjustment
13
Forward / Reverse Speed
13
Front Reel Limit Switch
14
Wing Reel Limit Switch (7 Gang Only)
14
Steering Toe-In
15
Torque Specification
16
Maintenance
17
General
17
Engine
17
Engine Oil
17
Air Filter
18
Fuel
18
Fuel System
18
Battery
19
Jump Starting
19
Charging Battery
19
Muffler and Exhaust
20
Hydraulic Hoses
20
Hydraulic Oil
20
Hydraulic Filters
21
Electrical System
21
Radiator
22
Rollover Protection Structure (ROPS)
22
Tires
22
Wheel Mounting Procedure
23
Care and Cleaning
23
Reel Backlapping
24
Storage
25
Troubleshooting
26
General
26
Controller Lamps
27
Electrical Circuits
28
Maintenance & Lubrication Charts
29
General
29
Maintenance Chart
29
Lubrication Chart
30
Parts Catalog 7
31
Parts Catalog 7.1 Table of Contents
31
Decals
32
Hood
34
Seat Pan
36
Instrument Panel
38
Instrument Panel
40
Traction Pedal Linkage
42
Brake Pedal Linkage
44
Frame and Front Axle
46
2WD Steering
48
4WD Steering
50
Tilt Steering
52
Radiator and Air Cleaner
54
Engine Assembly and Mounting
56
Engine Exhaust
58
Pump Mounting
59
Fuel and Hydraulic Tanks
60
2WD Traction Hydraulics
62
4WD Traction Hydraulics
63
Charge Pressure and Steering Hydraulics
64
Charge Pressure and Steering Hydraulics
65
Gear Pump Hydraulics
66
Gear Pump Hydraulics
67
Return Hydraulics
68
Return Hydraulics
69
Hydraulic Valve & Filter Mounting
70
Hydraulic Valve and Filter Mounting
71
Hydraulic Clamps
72
Front Lift Hydraulics
74
Wing Lift Hydraulics
75
Rear Lift Hydraulics
76
Rear Lift Hydraulics
77
Wing Reel Hydraulics
78
Front Reel Hydraulics
79
Rear Reel Hydraulics
80
Rear Reel Hydraulics
81
Lift Arms
82
Wing Lift Arms
84
Wire Harness and Controller Box
86
Five Inch Reel Assembly
88
Five Inch Reel Assembly
90
Seven Inch Reel Assembly
92
Seven Inch Reel Assembly
94
Down Pressure Spring
96
Front Roller
97
Rear Roller
98
Rear Roller
99
Brake Assemblies
100
Reel Valve
101
Front Wheel Motor
102
Rear Wheel Motor
103
Lift Valve
104
Lift Valve
105
Reel Motor
106
Reel Motor
107
Steering Valve
108
Rear Reel Valve
110
4WD Valve
111
Electrical Schematic
112
Electrical Schematic
114
Hydraulic Schematic
116
Hydraulic Schematic
118
O-Ring Chart
