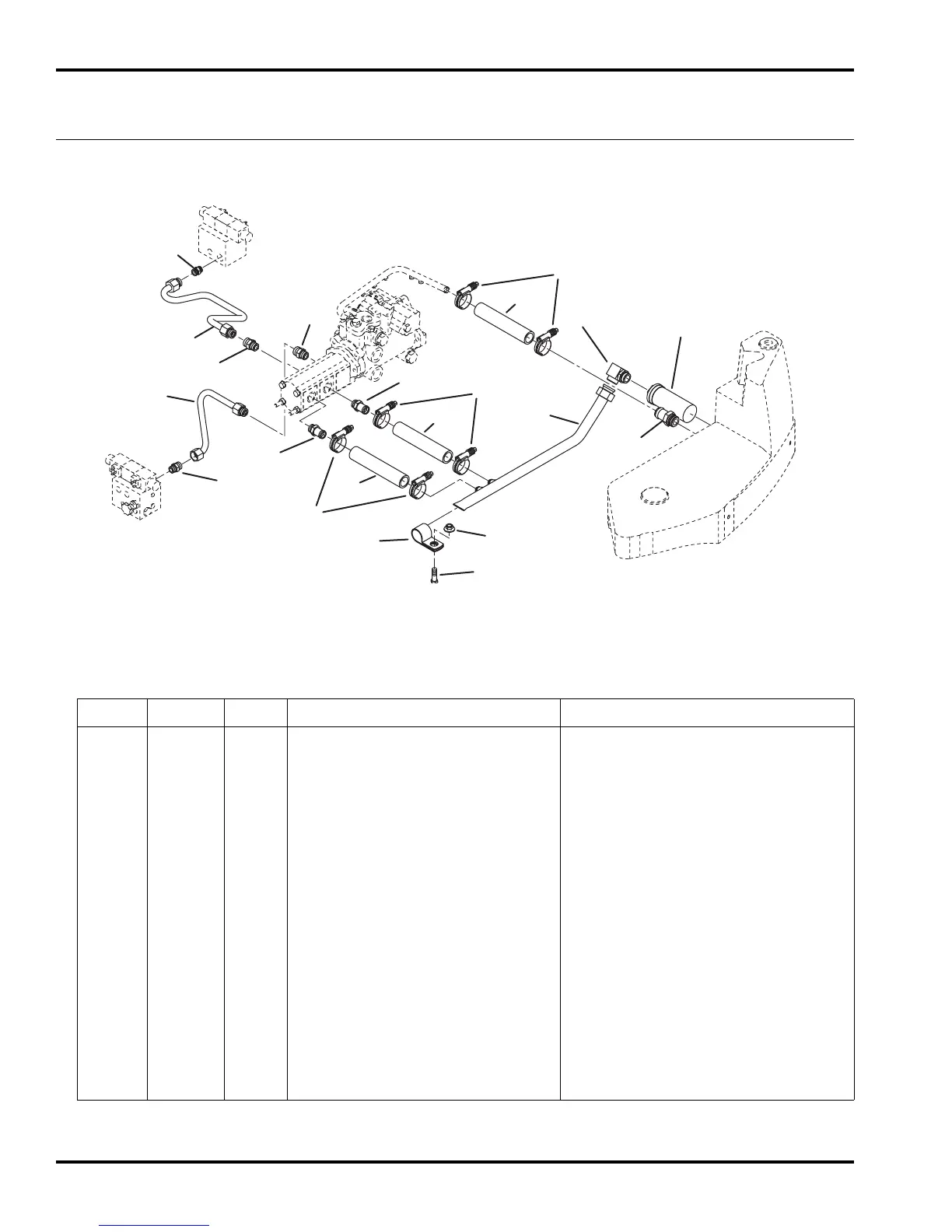

21.1 Gear Pump Hydraulics
5 Gang Units (LF 3400, LF 3800 and LF 3400 Turbo)
Item Part No. Qty. Description Serial Numbers/Notes
1
365959 1 Strainer, Tank Mounted
362743 1 • O-Ring
2 340090 1 Adapter, 90°
3 1003992 1 Tube, Gear Pump Inlet
4 445796 1 Nut, 3/8-16 Spiralock Flange
5 3001296 2 Fitting, Beaded Insert
6 3008745 3 Hose, Gear Pump Inlet
7 364190 1 Clamp, 1-1/2 I.D.
8 400264 1 Screw, 3/8-16 x 1-1/4” Hex Head
9 3008673 6 Clamp, Constant Torque
10 2810256 1 Hose, Pump To Front Reel Valve Front Reel Valve Port P
11 339933 1 Connector, Straight
12 1003284 1 Tube, Pump to Rear Reel Valve Rear Reel Valve Port P
13 339990 1 Adaptor, Straight
14 339989 1 Adaptor, Straight
15 339994 1 Adaptor, Straight
16 361689 1 Fitting, Barbed
