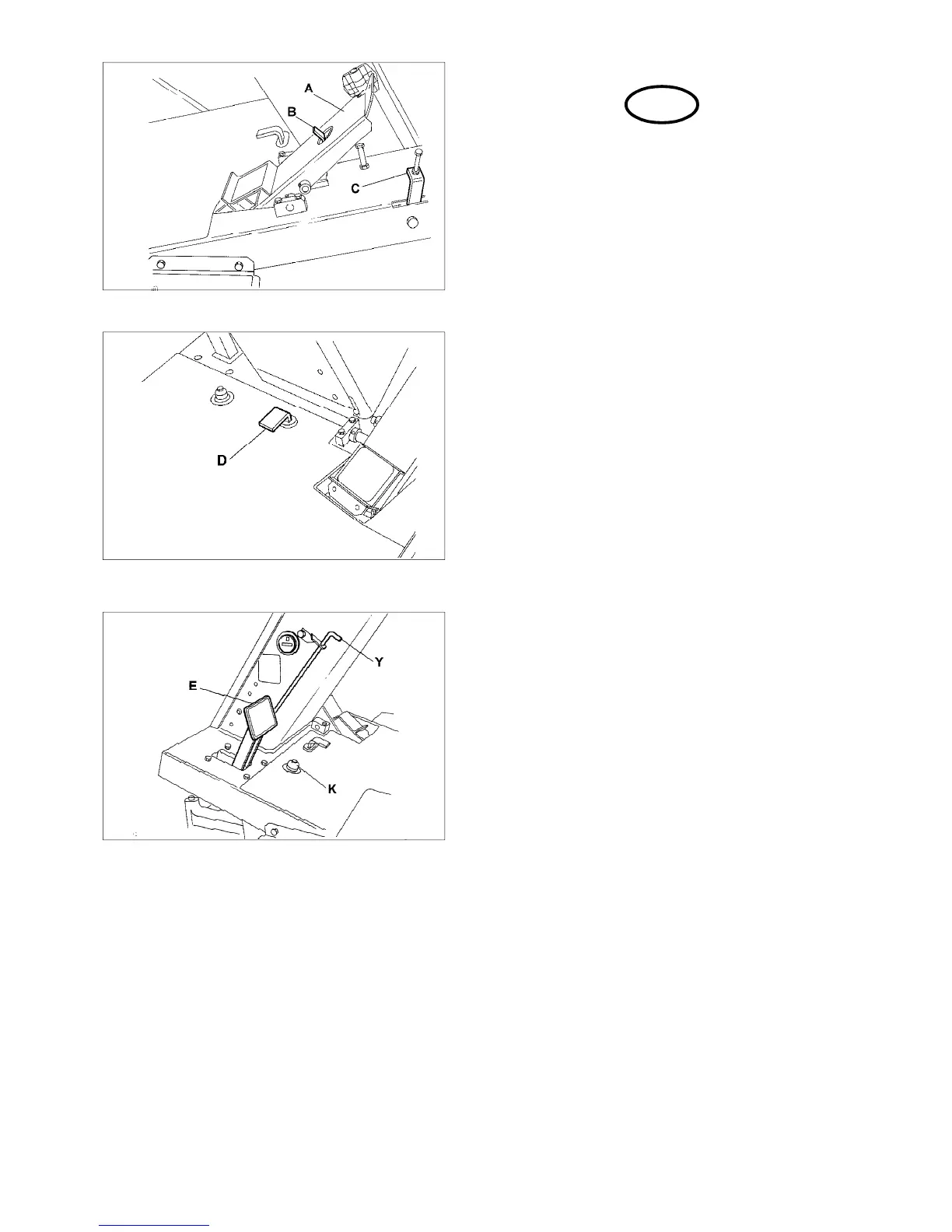

Fig.5
Fig.6
Fig.7
GB
A - FWD/REV PEDAL
Pushing down the top plate of the pedal moves
machine forward. Pushing down the rear plate
moves machine in reverse. Motions forward or
reverse are increased by more pressure. Pedal
automatically returns to the neutral position when
foot pressure is removed.
B - NEUTRAL LATCH
Has two functions:
1. The engine cannot be started when the Neutral
Latch is depressed.
2. The FWD/REV pedal will not work as described
if the Neutral Latch is not simultaneously de-
pressed.
C - SPEED LIMITER
Forward traveling speed is limited by the adjustable
Speed Limiter, shown in its least limiting position.
D - REEL TRANSPORT STOP (FRONT)
Depressing this pedal while lifting the cutting units
allows the cutting units to be raised for machine
transport.
E - BRAKES
Push this pedal forward until it locks to set parking
brake. Release parking brake by pushing the brake
pedal at the same time lever Y is pulled up.
K - UNIT START SWITCH
Operate this switch with the foot to start cutter decks
rotating. The PTO switch must be engaged first.
