GB-NL-F-28

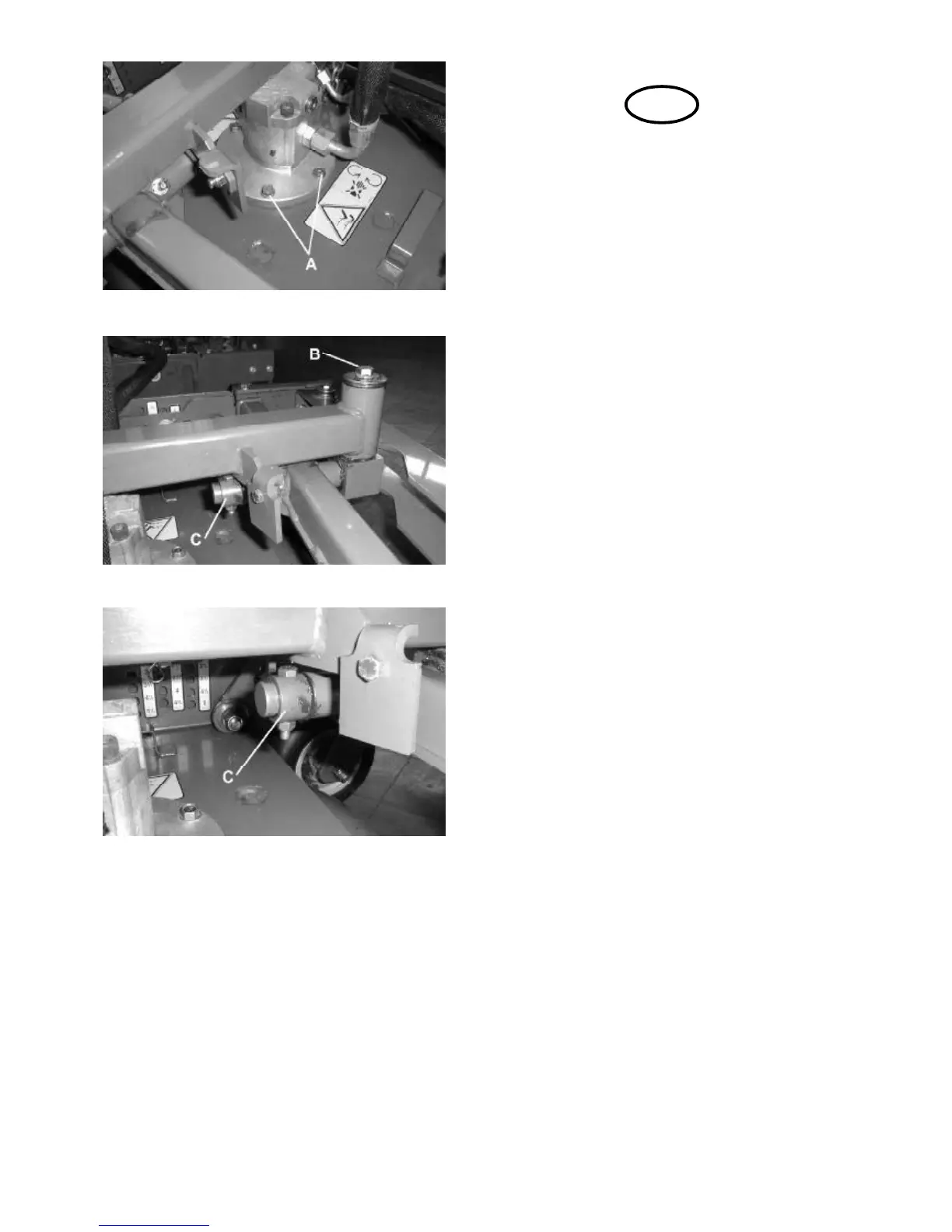

Fig.18
Fig.19
Fig.20
GB
ASSEMBLY OF CUTTING
UNITS AND MACHINE SET-
UP
CUTTER DECK SET-UP
1. Uncrate the five cutterdecks. There are two
types of cutterdecks: Three with movable
caster wheels for the front of the tractor and
two with fixed caster wheels for the sides of
the tractor.
2. Start the tractor and lower the lift arms fully.
Stop the tractor.
3. All cutterdecks are attached in the same way,
as follows:
a. Remove the six bolts A from the top of
the cutterdeck.
b. Mount the hydraulic motor onto the
deck using the six bolts removed.
Position with the centre hose (drain
hose) at the rear of the deck. Tighten
the bolts securely.
4. Move pivot shaft.
a. Remove bolt B and two washers
securing the pivot shaft to the tractor
arm, noting the order of assembly.
b. Remove the pivot shaft from the tractor
arm.
c. Remove collar C from the pivot shaft.
d. Install the pivot shaft in the deck as
shown. Replace collar C on the pivot
arm and secure with bolt and nut.
