GB-NL-F-30

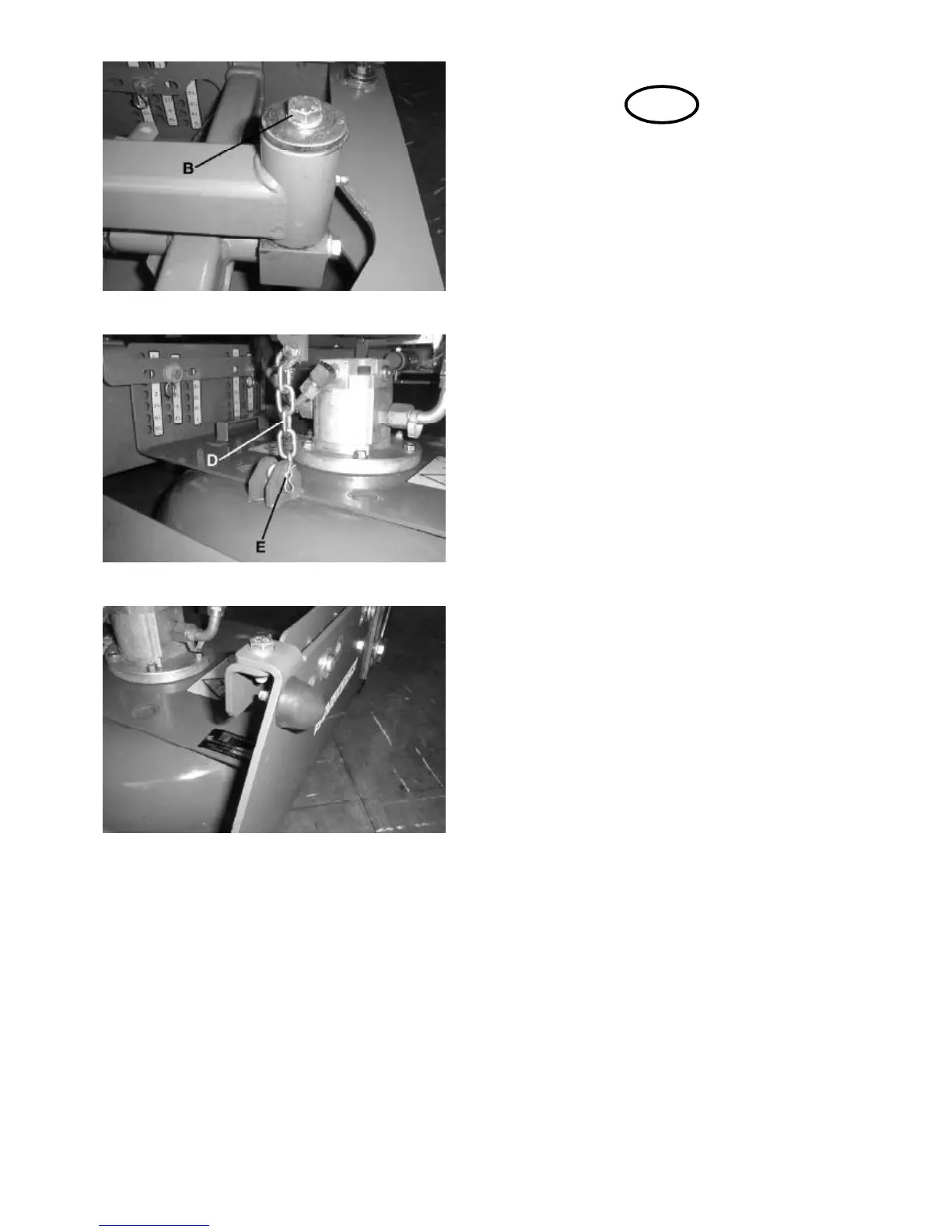

5. Attach the deck to the tractor.
a. Position the deck below the tractor arm,
with the pivot shaft at the front.
b. Line up the pivot shaft on the deck with
the arm and insert. Secure by installing
bolt B and washers as previously
assembled.
c. Attach bottom link of tractor arm chain
D to the deck with pin E. Secure pin
with cotter pin.
d. Repeat preceding steps for all five
cutterdecks.
6. Install bumper on centre cutterdeck.
a. Install the bumper on the long arm of
the bracket using the flanged nut
provided. Tighten securely.
b. Install the other arm of the bracket
under the bolt at the right rear corner of
the centre deck. Tighten securely.
GB
Fig.20a
Fig.20b
Fig.20c
