ECLIPSE

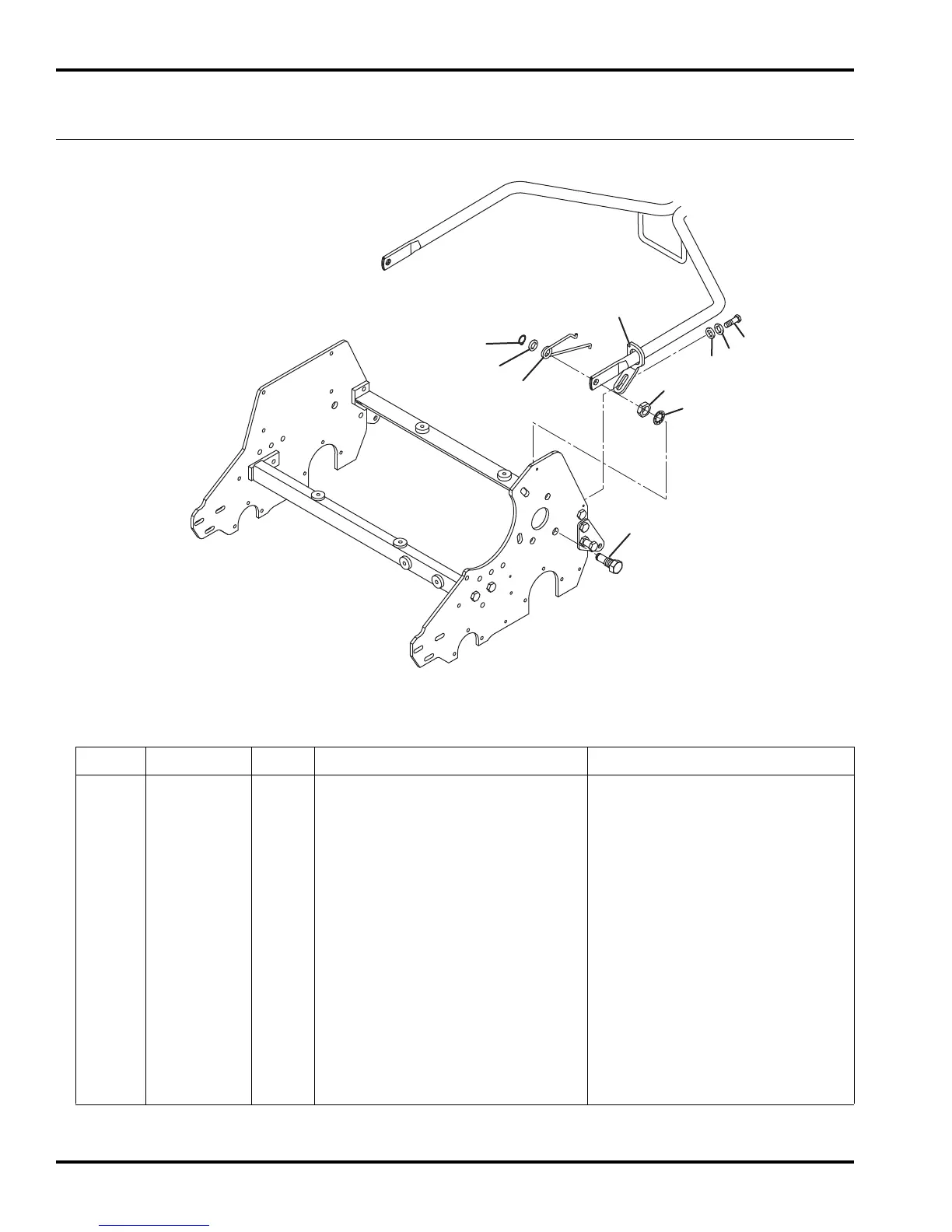

2.1 Handle Attach
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
2811559 2 Bolt, Handle Mount
2 447224 2 Lockwasher, 5/8” Internal Tooth
3 443828 2 Nut, 5/8-18 Hex Jam
4 4172521 1 Right Side Handle Stop
5 4172520 1 Left Side Handle Stop
6 2809900 1 Left Side Torsion Spring
7 2809901 1 Right Side Torsion Spring
8 455012 2 Flat Washer, 3/4
9 458006 2 Retaining RIng, 1/2 Truarc
10 400262 2 Screw, 3/8-16 x 1” Hex Head
11 446142 2 Lockwasher, 3/8 Heavy
12 453011 2 Flat Washer, 3/8
Fixed Head Frame Shown. Floating Head Similar
