11 ADJUSTMENTS
en-86
11.12ARMREST HEIGHT ADJUSTMENT ___________________________________________
The armrest has three available height settings for
operator convenience. To adjust armrest height:
1. Shut mower off and remove key.
2. Remove three bolts (V) from bracket on right side of
seat.
3. Raise or lower armrest as needed until another set
of holes in armrest bracket line up with seat bracket.
Assemble hardware (V).
4. After adjusting height, check three armrest wire
harness connectors for a tight connection to main
harness.

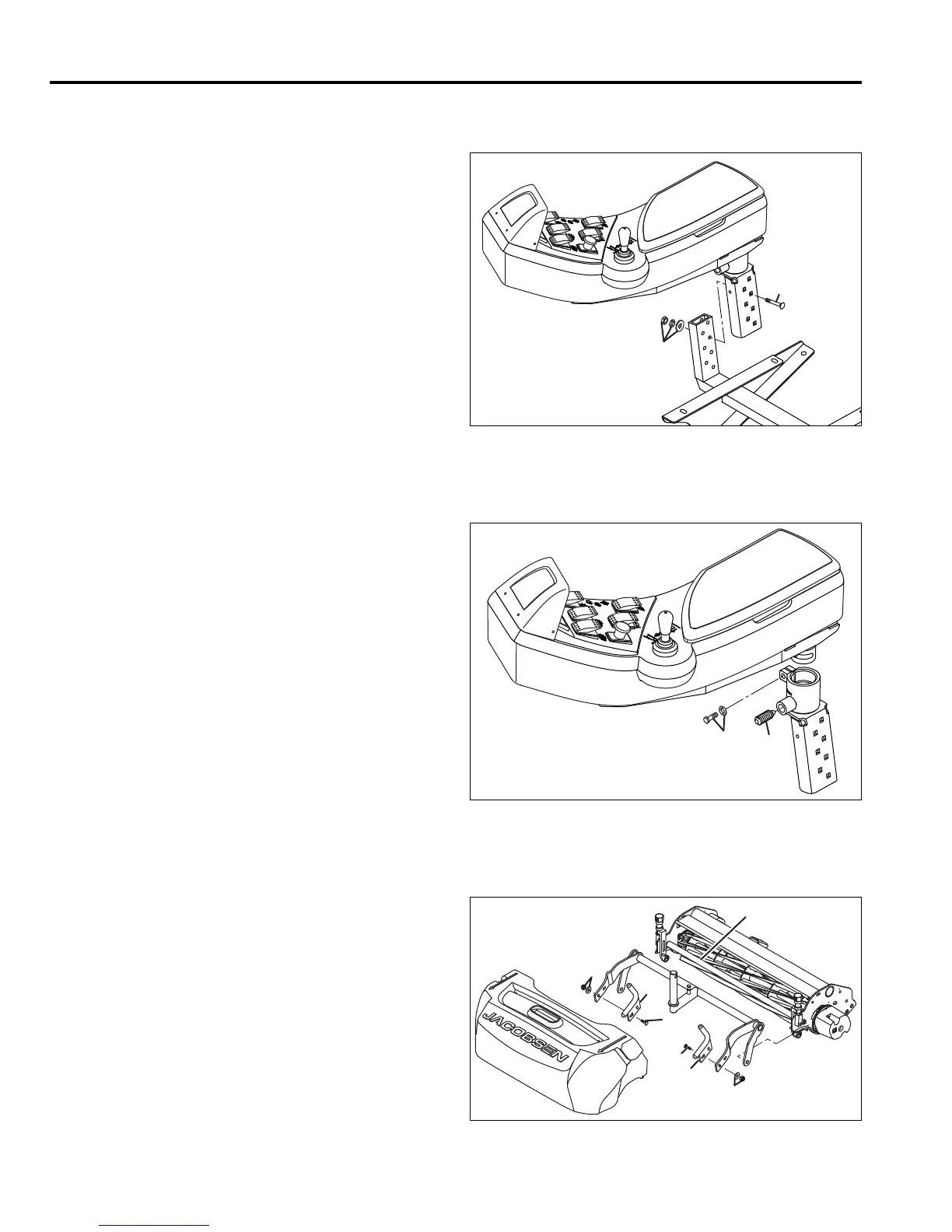

Figure 11K
11.13ARMREST PIVOT__________________________________________________________
1. Tighten or loosen pivot plunger (W) as required so
plunger button stops the armrest at both ends of
armrest pivot slots, and plunger body does not
contact armrest pivot. Do not use plunger to increase
pivot tension.
2. Adjust hardware (X) as required to obtain 2 to 6 lbs
(9 to 26.7 N) of force required, at visor end of
armrest, to pivot armrest. Do not overtighten pivot
hardware or leave too loose.
Figure 11L
11.14GRASS CATCHER YOKE ADJUSTMENT_______________________________________
1. Loosen hardware (AT).
2. Adjust yoke (AU) as required so lip of grass catcher
is resting on reel crossbar (AV).
3. Tighten hardware (AT).
Figure 11M
