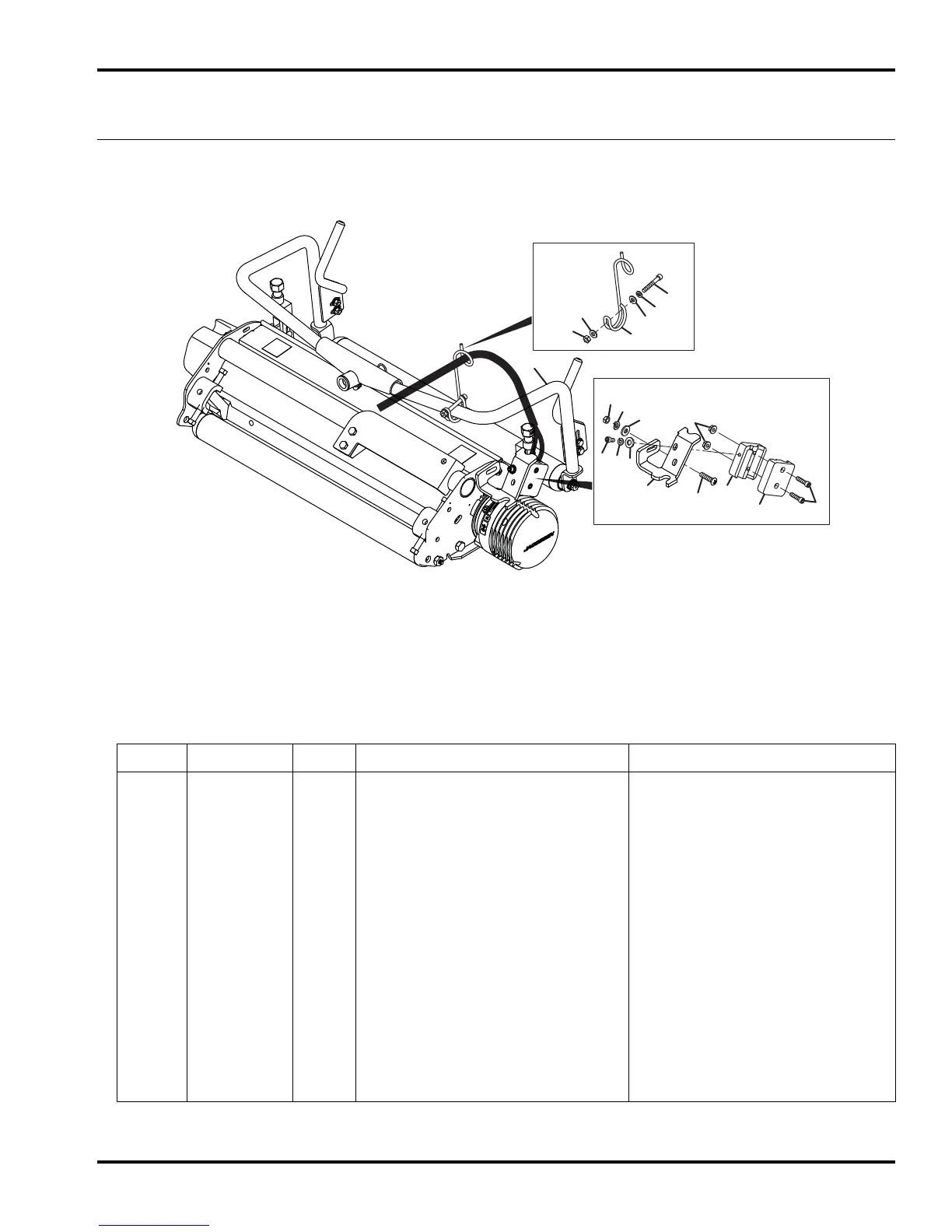

Jacobsen Eclipse series - Floating Head Motor Clamp

91
> Change from previous revision
7
8
8
9
10
10
11
B
1
2
3
4
5
6
7
7
12
8
8
ECLIPSE
Item Part No. Qty. Description Serial Numbers/Notes
1
4244463 1
Clamp, Front Cordset Connector
2 4244850 1 Clamp, Rear Cordset Connector
3 434029 2 Screw, 1/4-20 x 1” Hex Socket
4 445784 2 Nut, 1/4-20 Whizlock Flange
5 4246112 1 Bracket, Clamp
6 434011 1 Screw, 1/4-20 x 5/8” Socket Head
7 446130 3 Lockwasher, 1/4 Heavy
8 453023 4 Flat Washer, 1/4
9 434054 1 Screw, 1/4-20 x 1-3/4” Socket Head
10 443102 2 Nut, 1/4-20 Hex
11 4244893 1 Support, Cable
12 404022 1 Screw, 1/4-20 x 1” Truss Head
21.1 Floating Head Motor Clamp
Serial No. All
