JACOBSEN G-PLEX III Series: DN & DP
SAFETY AND OPERATORS MANUAL
9 ADJUSTMENTS

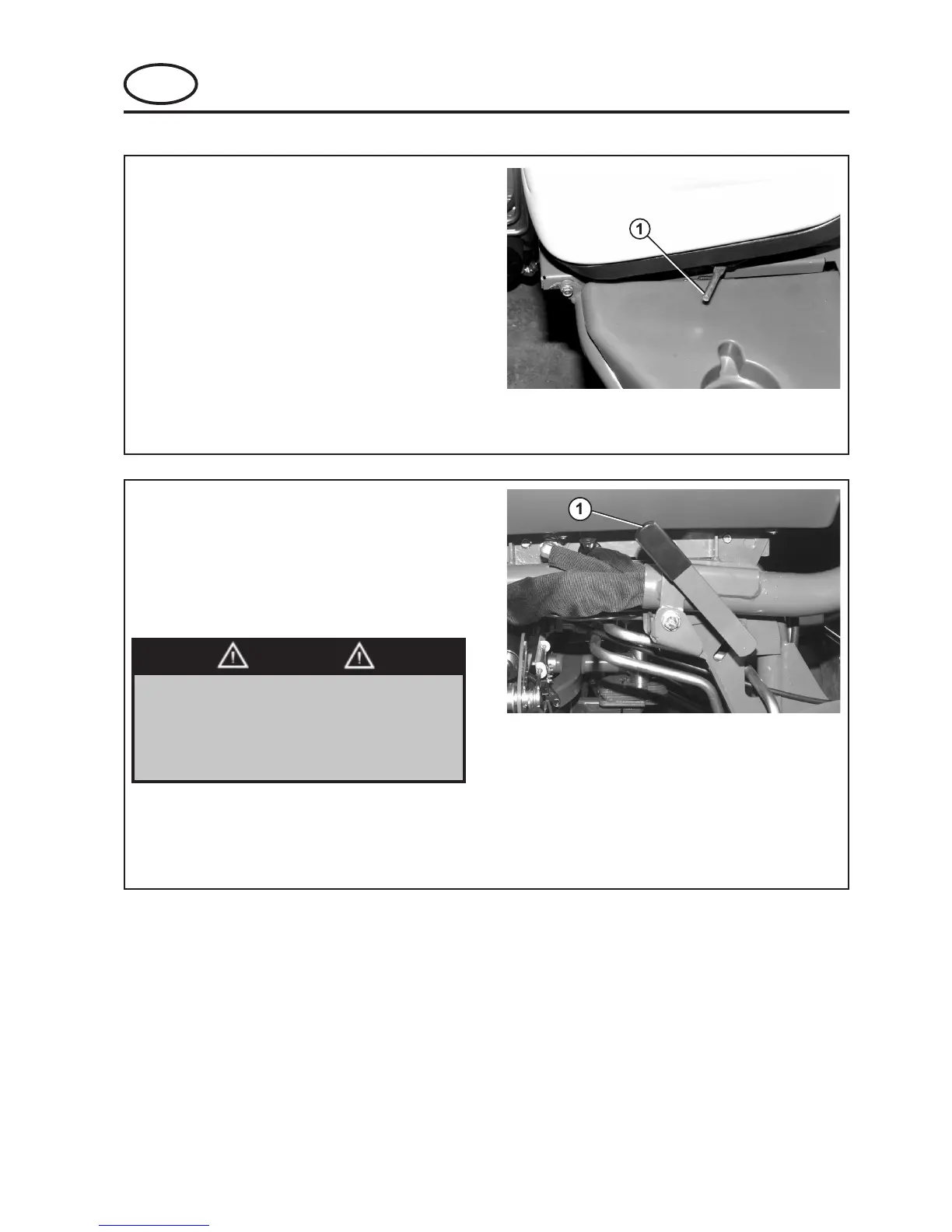

Figure 9.1.1
1. Seat Adjustment Lever
9.1 SEAT ADJUSTMENT LEVER
Pull out on the adjustment lever located under the
left side of the seat. Slide the seat to the desired
position and release the lever (See Fig. 9.1.1).
9.2 CONTROL ARM ADJUSTMENT
Support the control arm to avoid a sudden drop while
adjusting its height. Loosen the Locking Lever to
allow the steering wheel and control arm to be
adjusted up or down. Tighten the locking lever when
steering wheel is at the desired position (See Fig.
9.2.1).
Figure 9.2.1.
1. Control Arm Height Locking Lever.
DO NOT attempt to adjust the control arm
position while the machine is moving.
The operator may loose control, causing
possible injury to themselves or
bystanders.
WARNING
