JACOBSEN G-PLEX III Series: DN & DP
SAFETY AND OPERATORS MANUAL
10 LUBRICATION & MAINTENANCE

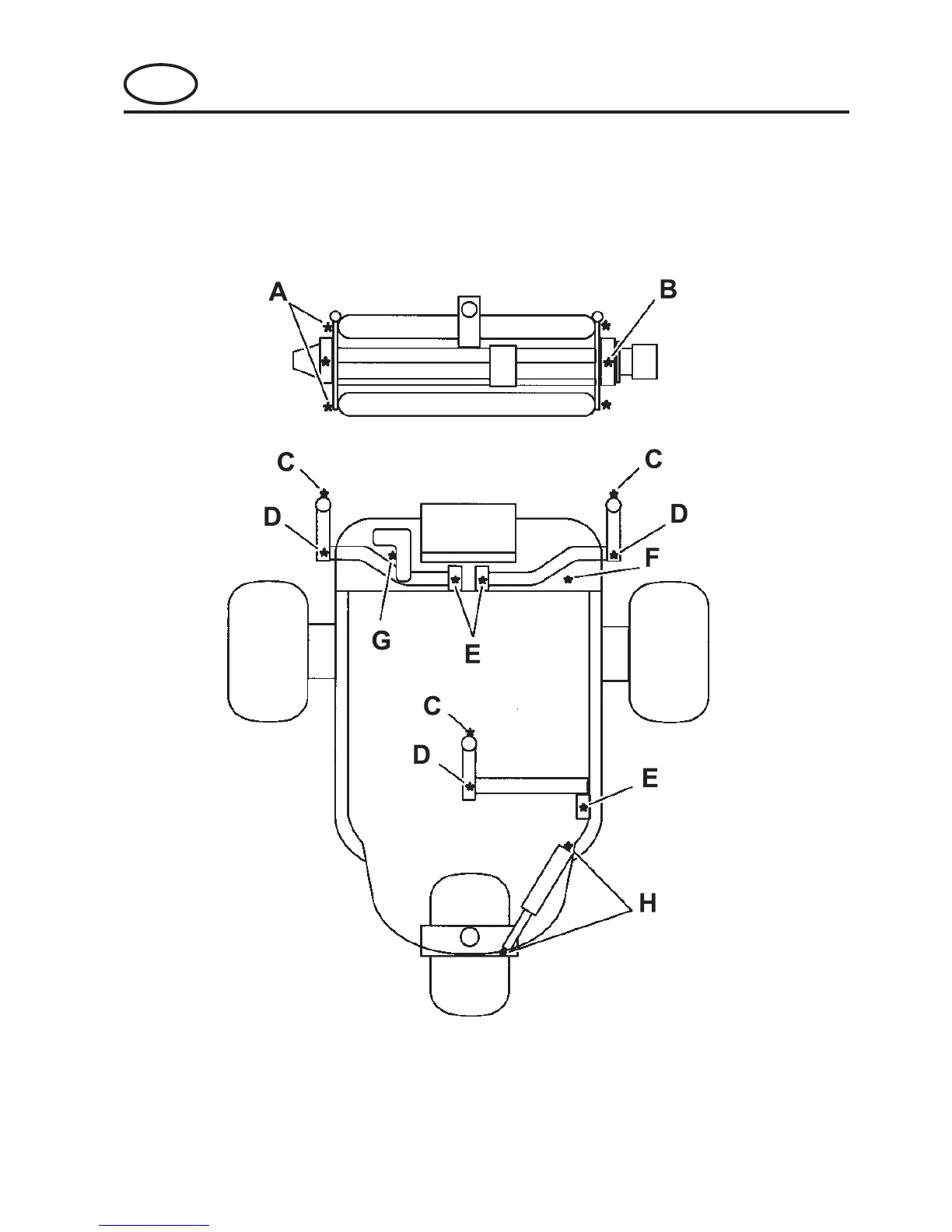

10.2 LUBRICATION DIAGRAM
Lubricate sparingly with a lithium based lubricant.
Excess lubricant my drop from the unit and cause turf damage.
Always wipe lubricators before and after lubrication.
* = Lubrication Point
A Cutting Unit Reel Bearings
B Cutting Unit Front & Rear Rollers
C Cutting Head Pivot
D Cutting Head Mount
E Lift Arm Pivot
F Mow / Speed Control Pivot
G Mow / Lift Pedal Pivot
H Steering Cylinder Pivots
