Jacobsen HR6010 User Manual

June 2011© Jacobsen HR6010 ROPS Operator Manual
Operating Instructions
Important
The following section locates, identifies and briefly describes the functions of all cab controls.
All operators should familiarize themselves with control location and function prior to operating
the tractor. Failure to do so may result in unsafe operation of the tractor and possible injury or
death to operators and bystanders.
If electrical options are ordered, there is one switch plate located in the cab. The following
switches are available and their functionality is described.

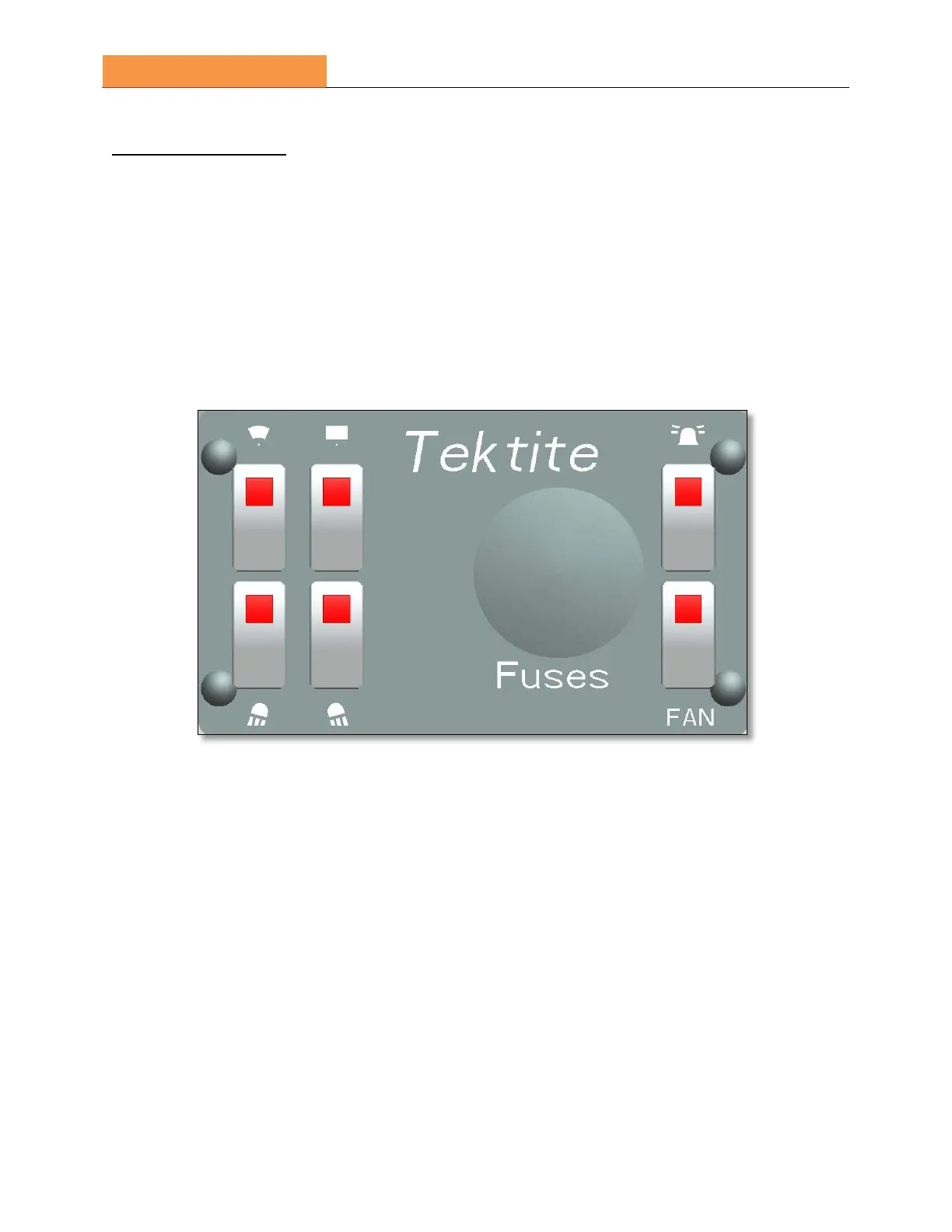

Cab Switch Plate
1. Front Wiper Rocker Switch (standard)
Low position: Off
High position: On
Note: indicator light activates when wiper is on.
2. Rear Wiper Rocker Switch (not available on all models)
Low position: Off
High position: On
Note: indicator light activates when wiper is on.
3. Front Work Light Rocker Switch (optional) or Head Light Switch
Low position: Off
High position: On
Note: indicator light activates when work lights are on.

Jacobsen HR6010 Specifications

General

Brand	Jacobsen
Model	HR6010
Category	Lawn Mower
Language	English
