ENGINE
4241262-Rev B 3-3
3
Component Location
Kubota V1505
See Figures 3-1 and 3-2.

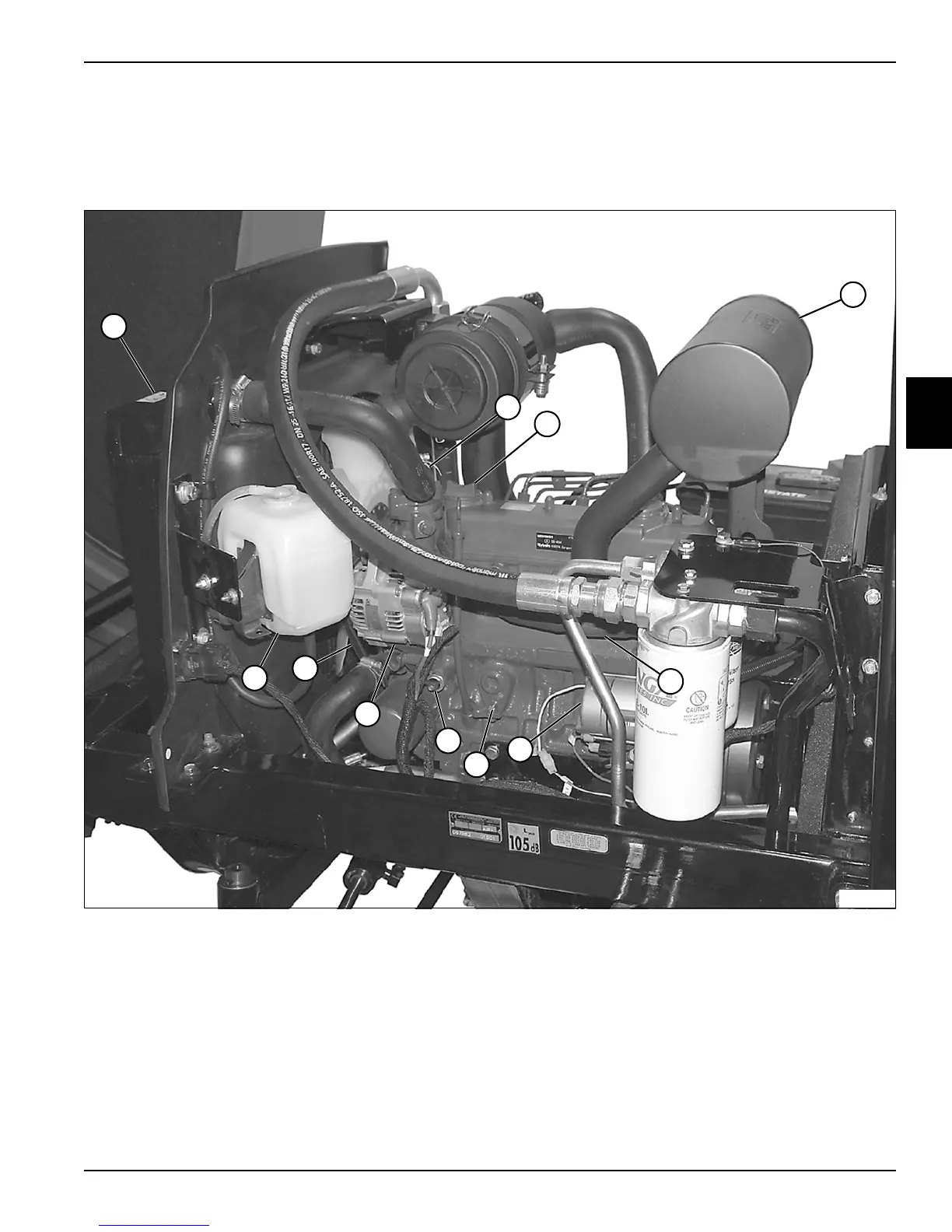

Figure 3-1: Component Location—Right Side
1 Radiator/Hydraulic Oil Cooler 7 Engine Coolant Drain Valve
2 Thermostat 8 Engine Oil Pressure Switch
3 Engine Oil Fill Cap 9 Alternator
4 Muffler 10 Fan Belt
5 Exhaust Manifold 11 Coolant Overflow Bottle
6 Starter Motor
3
4
TN3590
1
2
7
9
6
8
10
5
11
