8.11 ARMREST PIVOT __________________________________________________________
1. Tighten or loosen pivot plunger (W) as required so
plunger button stops the armrest at both ends of
armrest pivot slots, and plunger body does not
contact armrest pivot. Do not use plunger to increase
pivot tension.
2. Adjust hardware (X) as required to obtain 2 to 6 lbs
(9 to 26.7 N) of force required, at visor end of
armrest, to pivot armrest. Do not overtighten pivot
hardware or leave too loose.

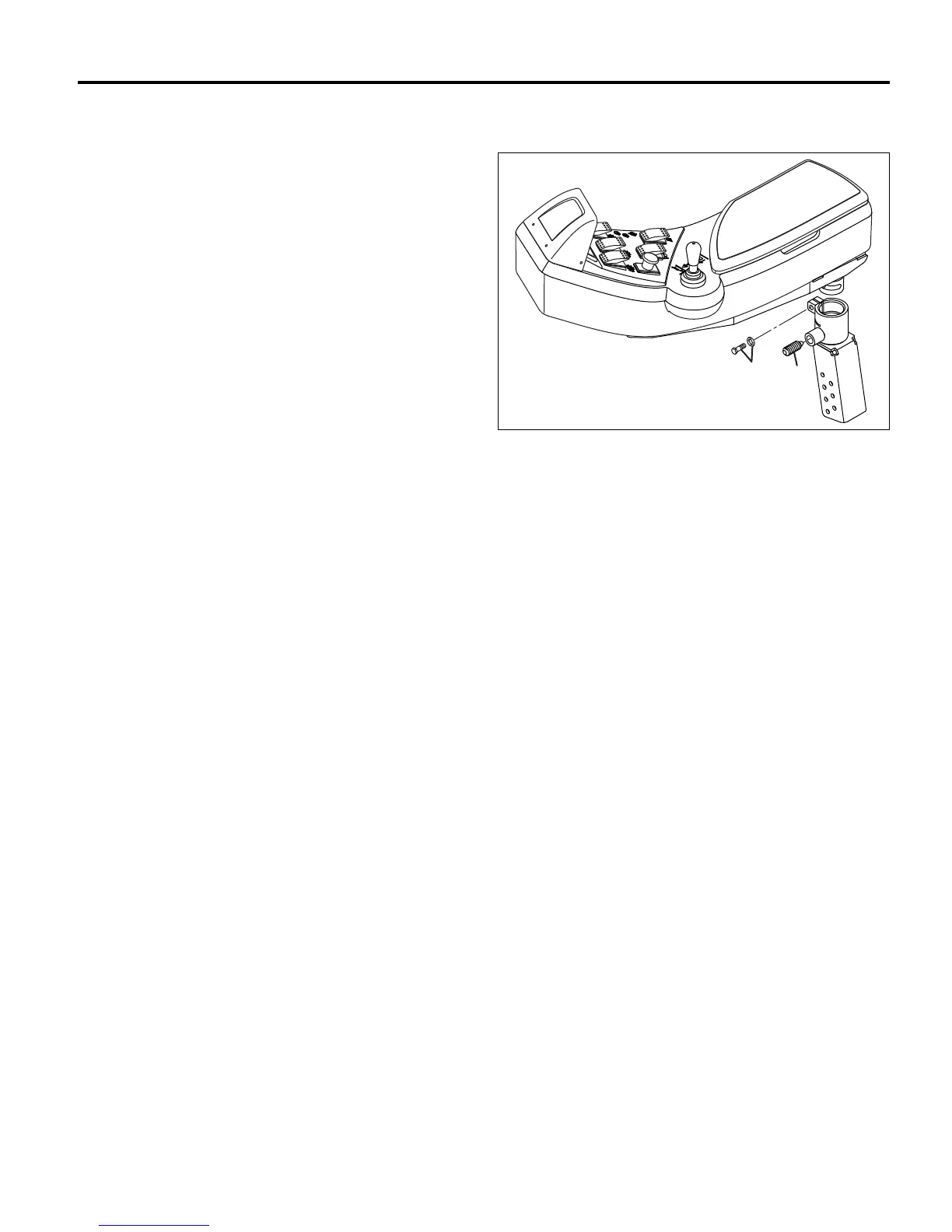

Figure 8K
W
X
