Jacobsen R-311T 69171 User Manual

93
> Change from previous revision
4
3
2
1
Left Wing
Deck Valve
Front
Deck Valve
Hydraulic
Tank
7
6
10
5
9
10
11
8
R-311T
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 1 Adapter, 90°
2 4192440 1 Hose, Front to Left Wing Deck Valve
3 2720559 1 Adapter, Tee
4 4199222 1 Hose, Left Valve to Oil Cooler
5 340077 1 Adapter, 90°
6 4195621 1 Hose, Oil Cooler to Return Filter
7 340089 1 Adapter, 90°
8 163917 1 Adapter, Beaded
9 4148897 1 Hose, Return Filter to Tank
10 326112 2 Clamp, Hose
11 339999 1 Adapter, Straight

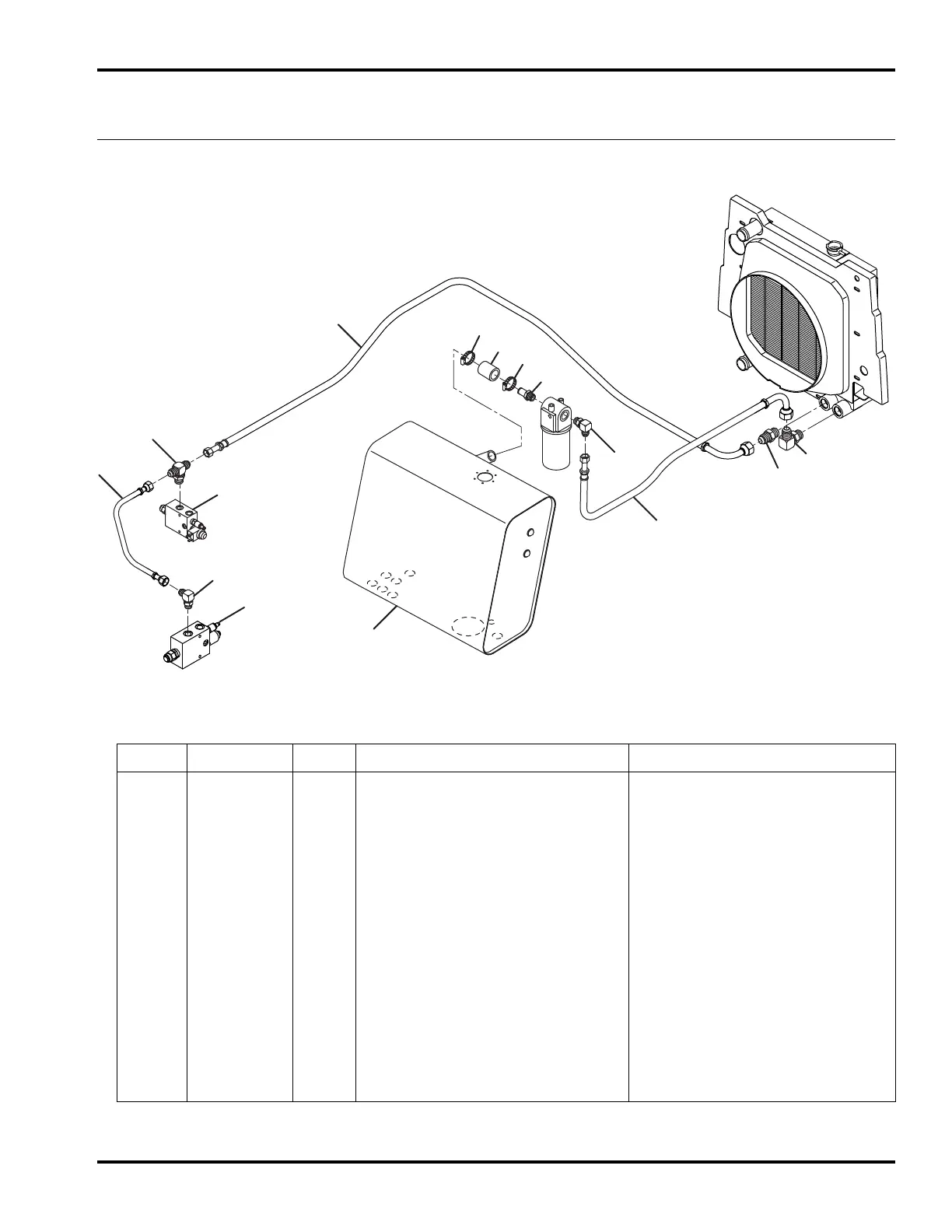

36.1 Oil Cooler Hydraulics
Serial No. All
