Jacobsen R311T-T4F User Manual

10 ADJUSTMENTS
71

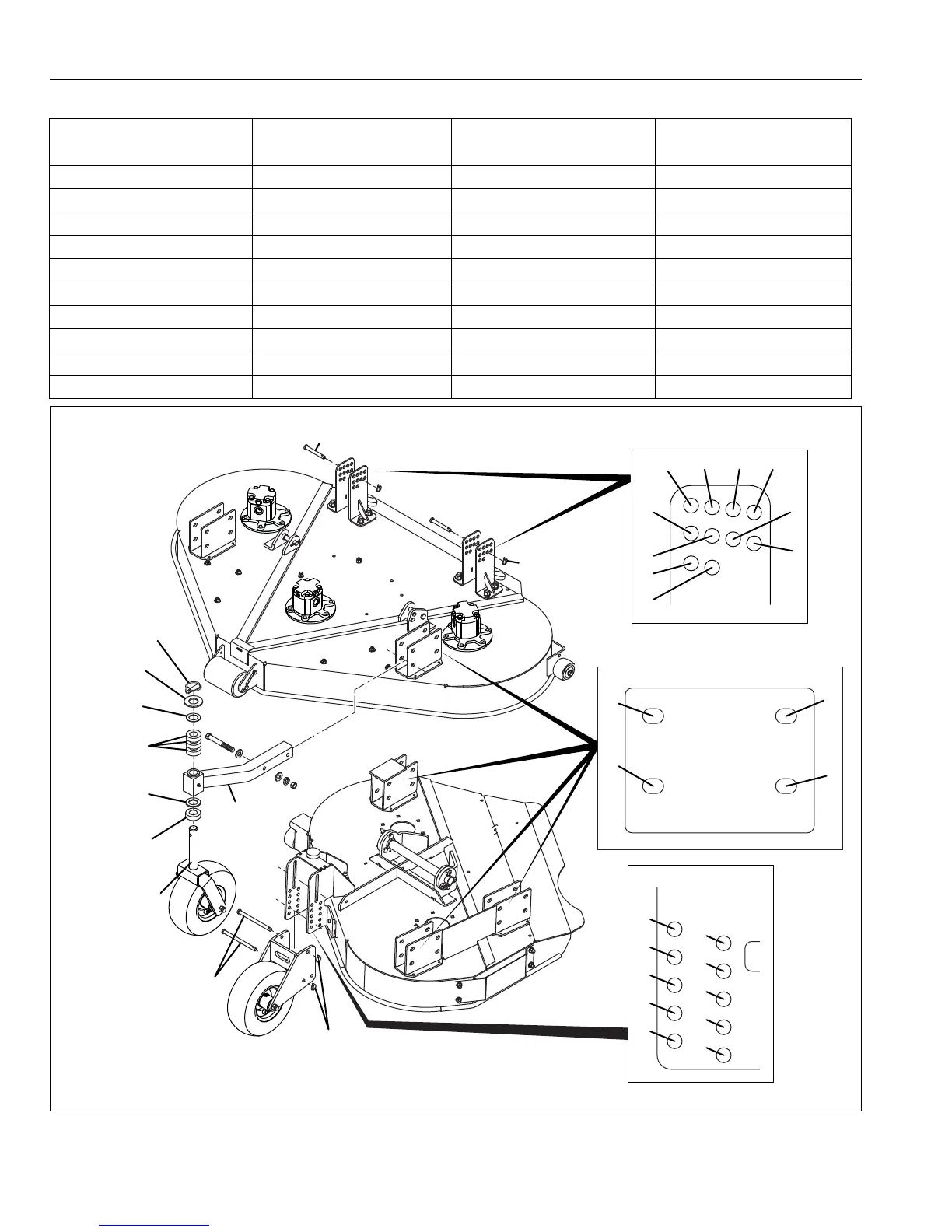

Height of Cut
Spacers Below Pivot
Block
Caster Arm Position Pin Mounting Position
1 inch (1.9 cm) 0 A 1
1-1/2 inch (3.8 cm) 1 A 2
2 inch (5.1 cm) 2 A 3
2-1/2 inch (6.3 cm) 3 A 4
3 inch (7.6 cm) 4 A 5
3-1/2 inch (8.9 cm) 0 B 6
4 inch (10.2 cm) 1 B 7
4-1/2 inch (11.4 cm) 2 B 8
5 inch (12.7 cm) 3 B 9
5-1/2 inch (13.3 cm) 4 B 10
1
2
3
4
5
A
B
A
B
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
Retaining
Ring Pin
Large
Washer
1/2 inch
(1.3 cm)
spacer
Snap
Pin
Clevis
Pin
Thrust
Washer
Thin
Spacer
Caster
Yoke
1/2 inch
(1.3 cm)
spacer
Caster
Arm
Snap
Pin
Front Deck HOC Plates
Caster Arm Deck Plates
Wing Deck HOC Plates
Clevis
Pin
