Jacques JEM-4 - Peripheral Connections

www | jacques.com.au
Document Number | JED-0492 Revision | 1.0 Page 10 of 18
PERIPHERAL CONNECTIONS

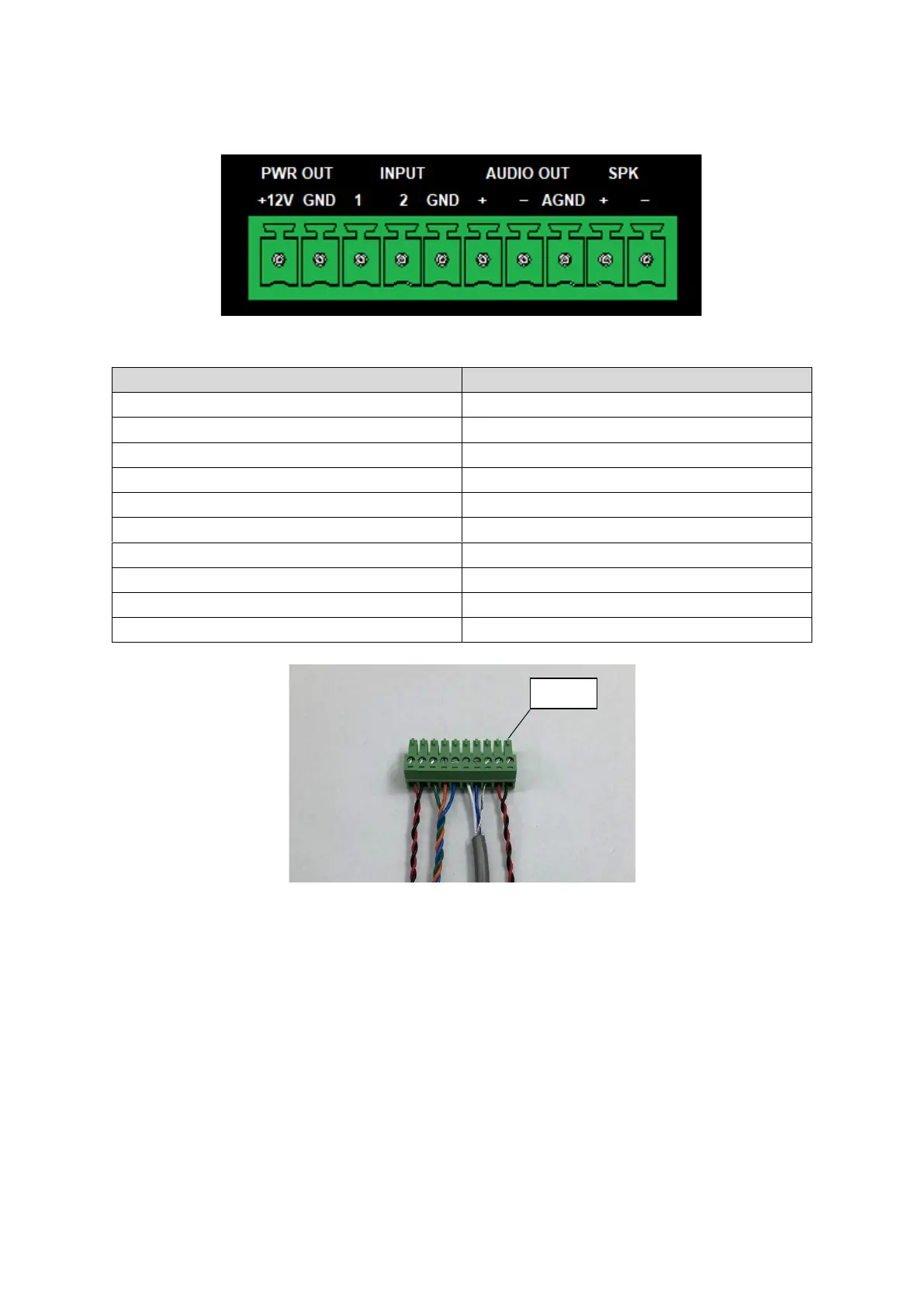

Figure 8: JIB-4000 Peripheral Connections
Pin
Signal
1
Speaker Negative
2
Speaker Positive
3
Audio Ground
4
Audio Input Negative
5
Audio Input Positive
6
Ground
7
Button input 1
8
Button input 2
9
Ground
10
+12 V Power Output
Figure 9: Peripherals connection mating plug
Pin 1
