Jacques JEM-4 - Relays Connections

www | jacques.com.au
Document Number | JED-0492 Revision | 1.0 Page 9 of 18
RELAYS CONNECTIONS

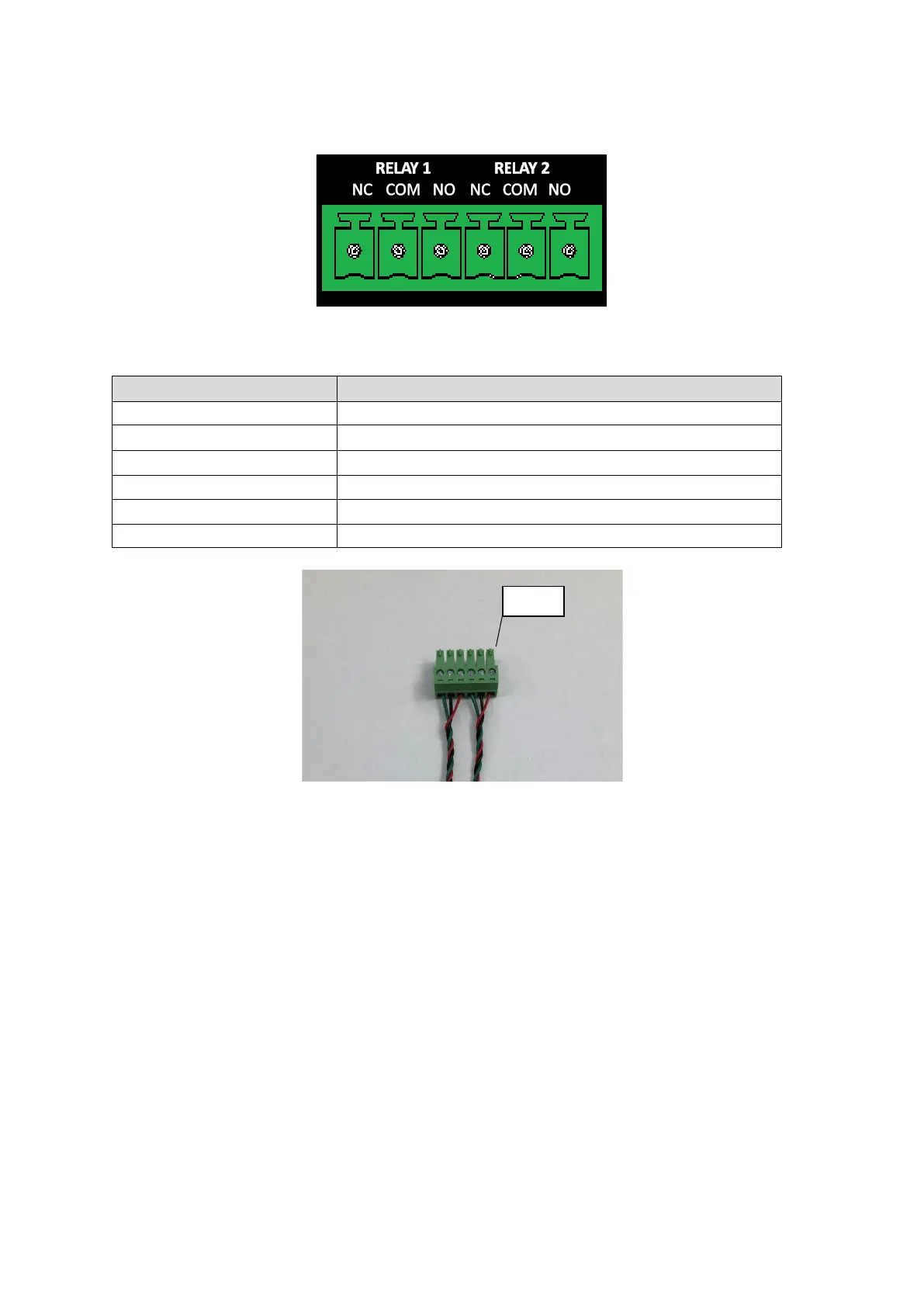

Figure 6: JIB-4000 Relay Rear Connections
Pin
Signal
1
Relay 2 Normally Open (NO) Contact
2
Relay 2 Common (COM) Contact
3
Relay 2 Normally Closed (NC) Contact
4
Relay 1 Normally Open (NO) Contact
5
Relay 1 Common (COM) Contact
6
Relay 1 Normally Closed (NC) Contact
Figure 7: Relay connection mating plug
Pin 1
