OVERVIEW

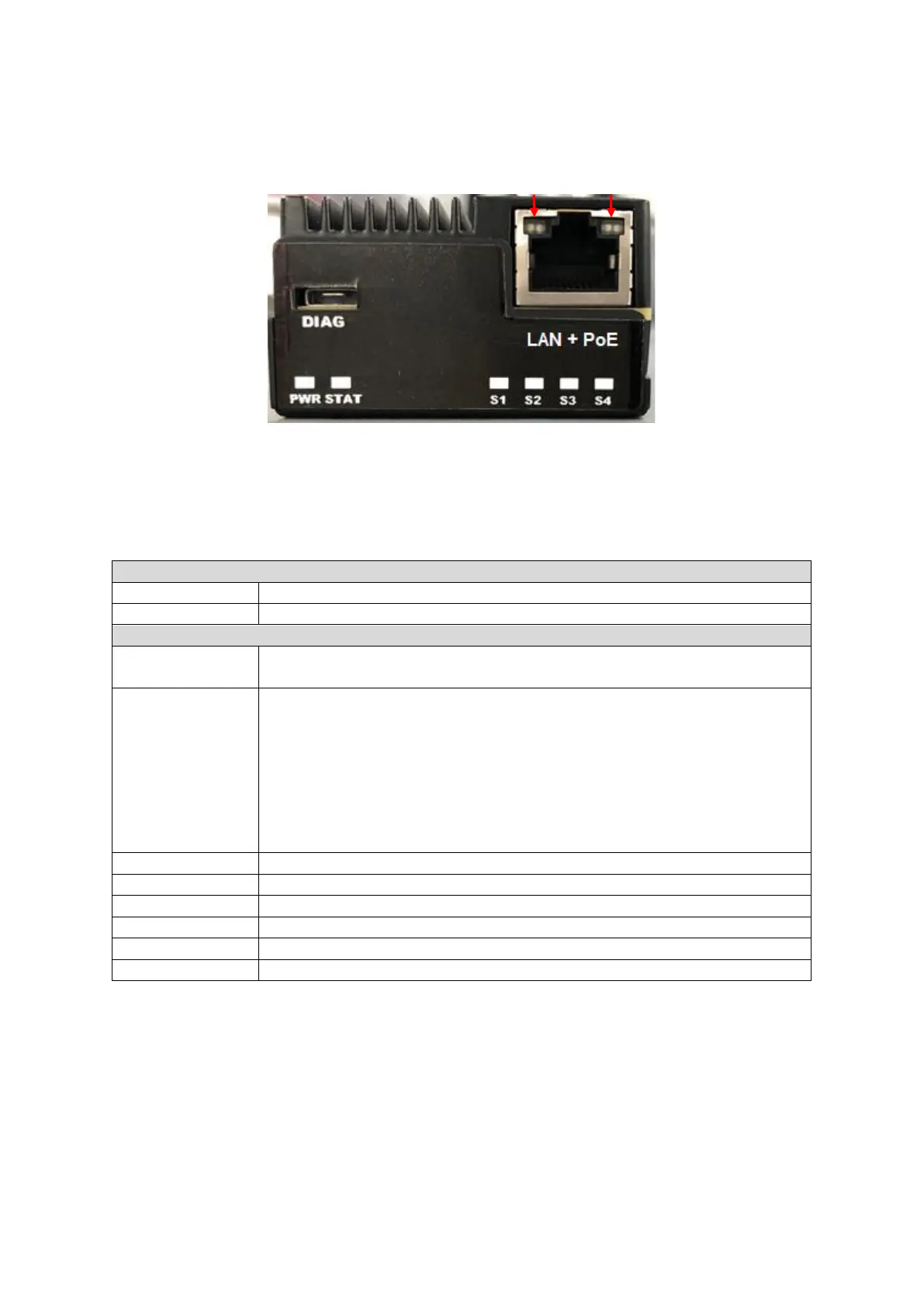

Figure 2: JIB-4000 Front View
The JIB-4000 product features a RJ45 port, LED indicators and a micro USB port on their front panel.
See below table for further description.
RJ45 port for Data and Power
Micro USB port intended for factory programming purposes
When lit, indicates the devices internal power rails (5 V d.c. and 12 V d.c.) are
operational.
Indicates the devices current operational status / mode.
Typical modes:
Green: Call connected
Green Flashing: Server disconnected
Red: Device is operating in ‘Recovery Mode’
When lit, indicates ethernet link is detected
When lit, indicates ethernet data (TX / RX) activity
When lit, indicates Relay 1 is activated
When lit, indicates Relay 2 is activated
