Jacuzzi 2003+ - J-330 & J-340 Control Operations

Page 17
Massage Selector #1 Controls
the Main Pump’s Water Flow.
Massage Selector #1 Controls
Pump 1. Seat Jets C And
Footwell Jets D Are Powered
by Pump 2.
Air Control Operation
Depress Air Controls A-C to
Open or Close Air Inlet to
Designated Jet Groups.
Air Control Operation
Depress Air Controls A-D to
Open or Close Air Inlet to
Designated Jet Groups.
J-330
Massage Selector Operation
Rotate Massage Selector 1 to
Divert Water Between Jet Groups
A&B or C.
J-340
Massage Selector Operation
Rotate Massage Selector 1 to
Divert Water Between Jet
Groups A-B.

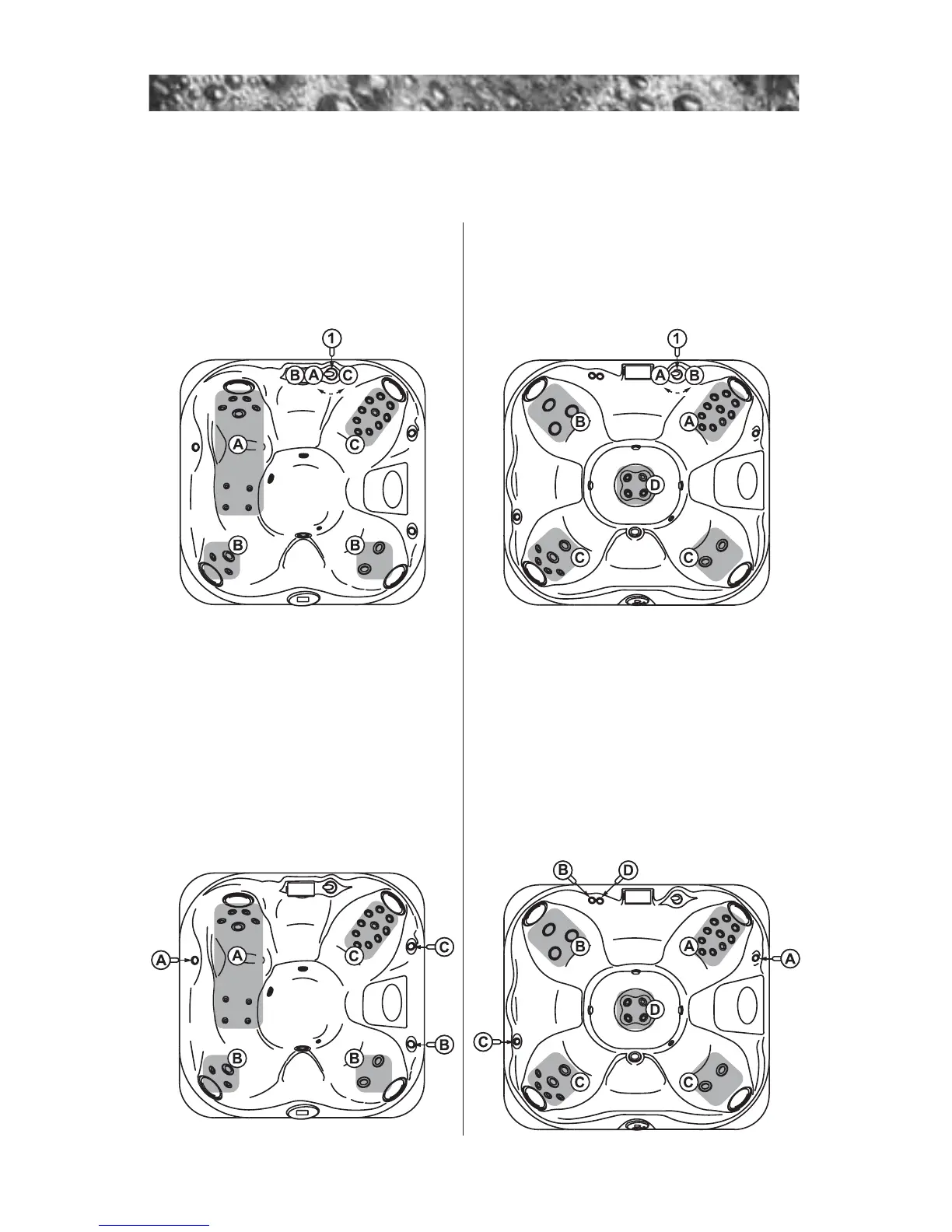

8.4 Jet/Air Controls Diagram
(J-330 & J-340 Models)
