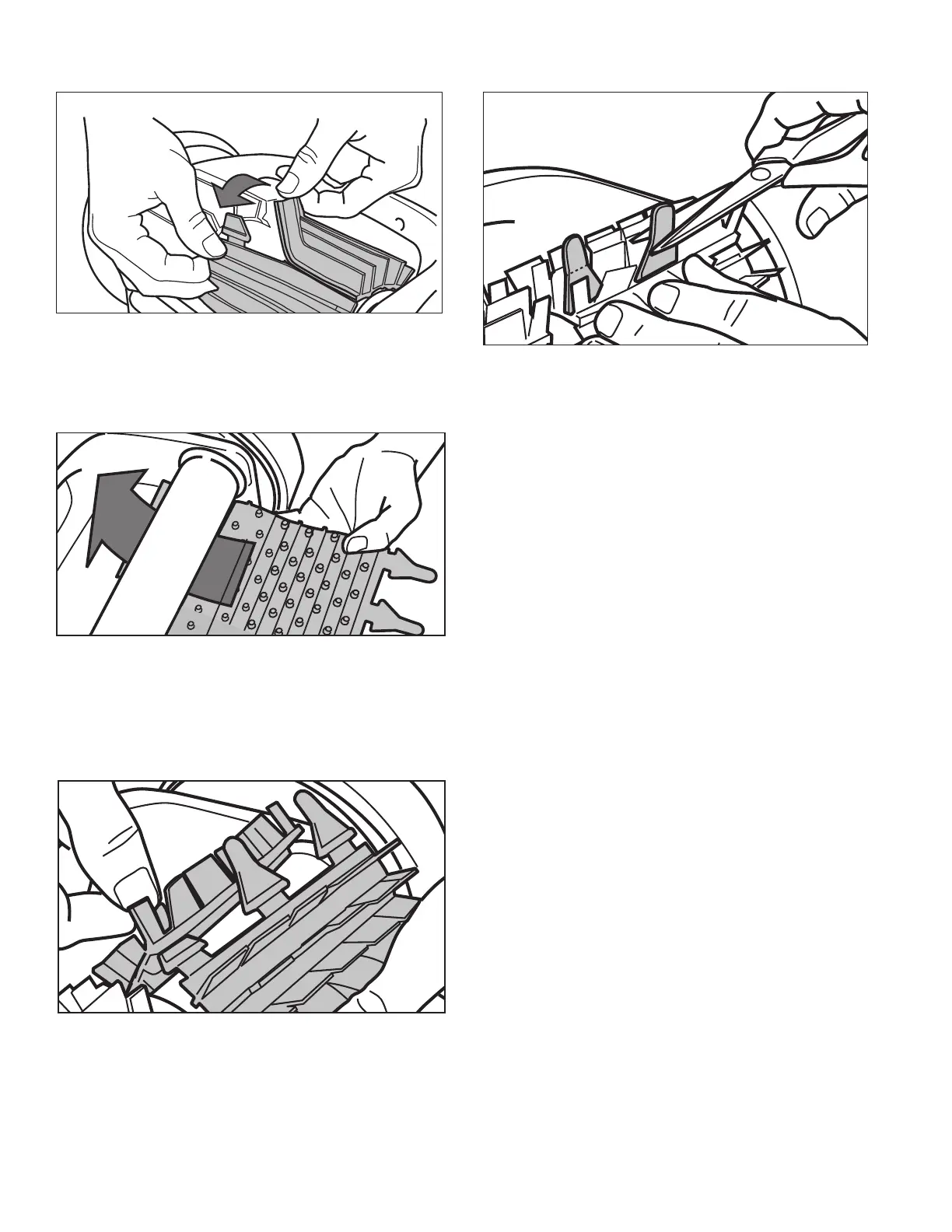

Figure 17. Undo the Tabs of the Brush
3. Position the new brush underneath the roller
with the bristles facing downwards (see Figure
18).
Figure 18. Position the New Brush on Roller
4. Thread each tab into the slot provided and
gently feed it through until the heel comes out
at the other side of the slot.(Figure 19).
4
Figure 19. Pull Tabs Through Each Slot
5. Use a pair of scissors to cut the tabs 3/4 inch
from the heel so that they are no higher than
the cleaning blade (Figure 20).
Figure 20. Cut Tabs
12
ROBOTIC CLEANER
