Jacuzzi ERIKA 48 - Page 15

15

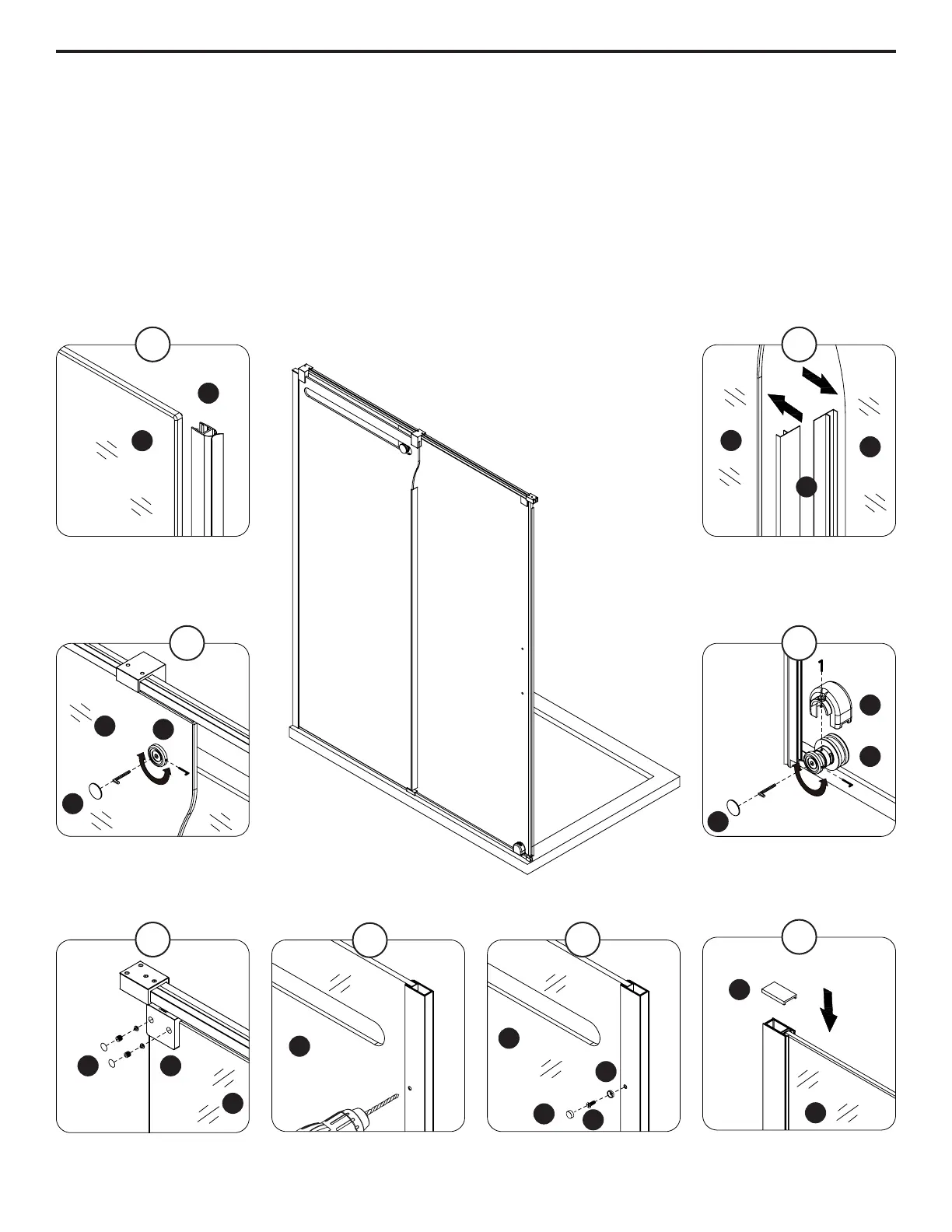

1. Install the magnetic seal strip (I) onto the door panel (J).
2. Install the 2 Vertical seal strips (R).
3-4. Adjusttheleveloftheglasspanelusingtheeccentricmechanismoftherollers.Theninstallthecap(JJ)
onto the door roller (H). Insert the roller cover (K) at the bottom roller.
5. Secure the support bar (F) to the door panel (J) using the auxiliary roller (E) and the cap (KK).
6-7. Drillthewalltrack(B)on3positionswithaø3mm(1/8in)drillbit.Levelthexedglasspanel(C)andxit
withthettings(MM),thescrew(DD)andthecap(LL).
8. Installthedecorativecap(Q)ontothexedpanel(C).
DOOR PANEL INSTALLATION
R
3
J
JJ
5
KK
2
4
C
J
K
JJ
H
H
6
C
MM
C
7
DD
LL
Φ3mm
1/8in
8
Q
C
J
E
J
1
I
