SHOWER REVERSIBILITY
BA

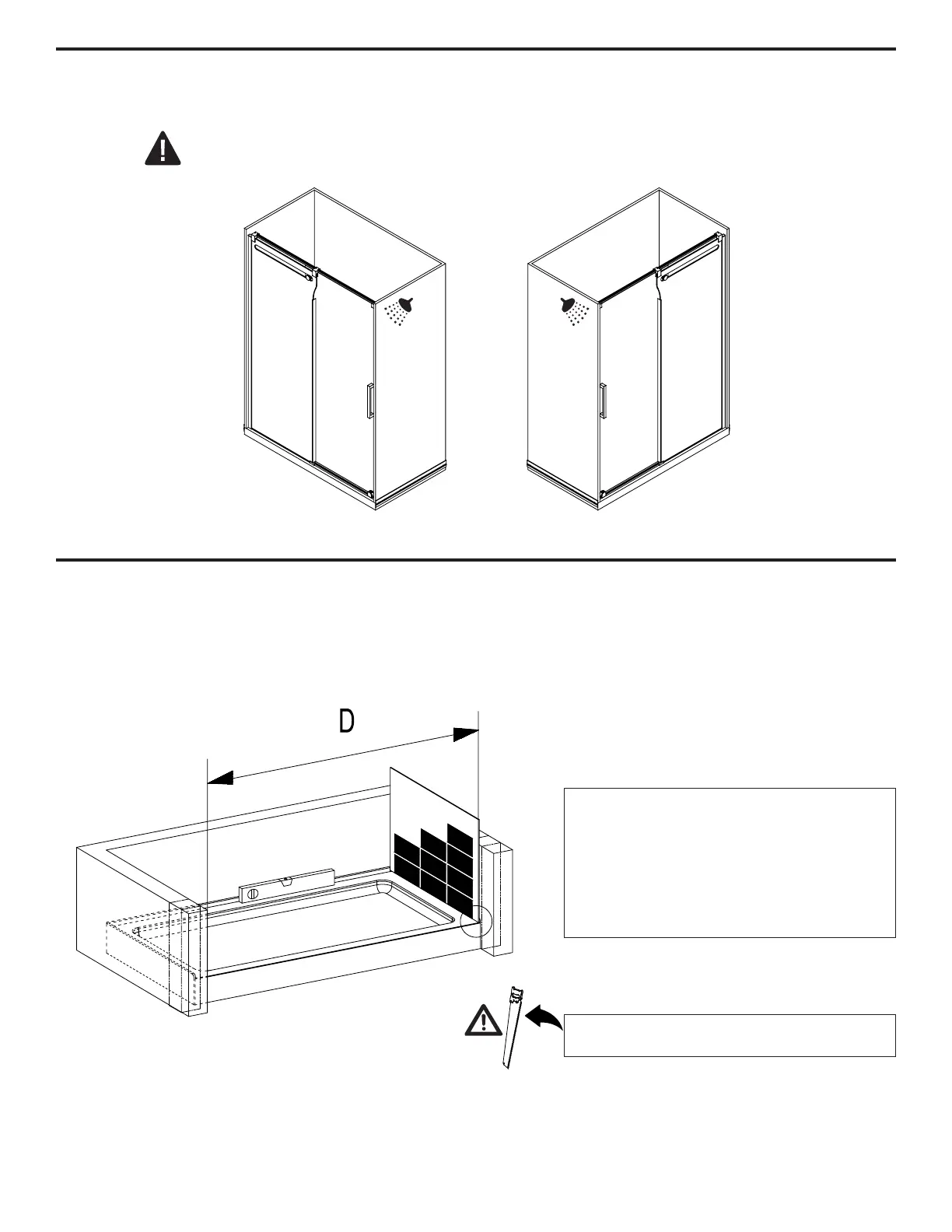

• This instruction is drawn up for an opening from right to left (see illustration A).
• For an installation from left to right (see illustration B), use the same instructions, but switch around the
panels: mirror effect.
WALL TO WALL MEASURES
• Measure the thickness of your tiles on either side before installing the metal tracks. A thicker tile will limit
your space to install the shower panels.
• Make sure to have a tile to tile distance (D) between 1173mm (46 3/16 in) min. and 1188mm (46 3/4 in)
max. (see image).
Make sure to have a distance (D) from the left side tile
to the right side tile:
D Min: 1173mm (46 3/16 in)
D Max: 1188mm (46 3/4 in)
Install the shower head on the door’s side! This will reduce the risk of leaking.
If D < 1173mm (46 3/16 in) you can cut the support
bar to adequate size. Only cut the side with no slot !
