Jacuzzi ERIKA 48 - Support Bar Installation

12

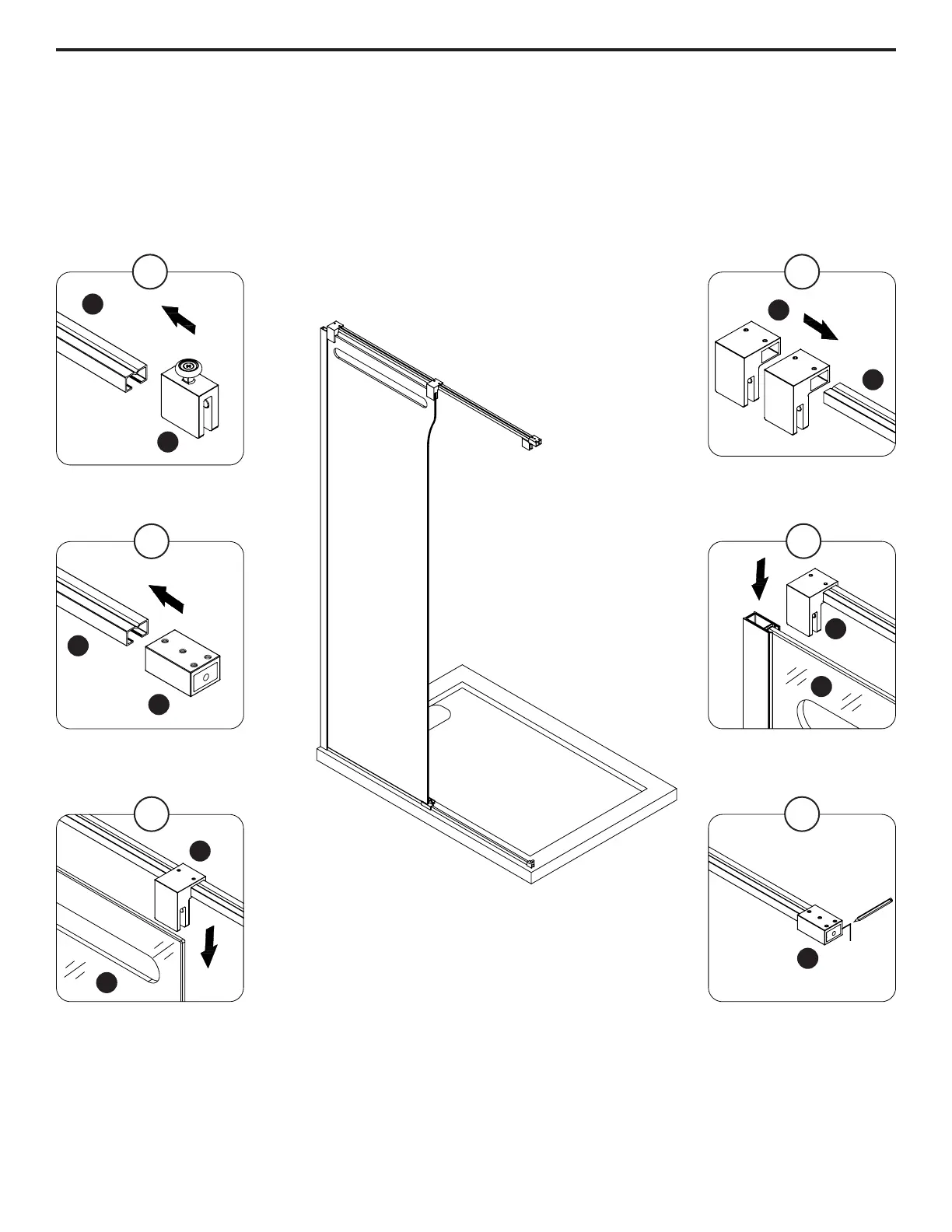

1-3. Slidetheauxiliaryroller(E),2xedpanel’sbrackets(G)andthesupportbar’sanchor(D)ontothesupportbar
(F).
4-5. Looselymountthesupportbar(F)ontoxedglasspanel(C)usingthebrackets(G)andlevelit.
6. Mark the outline of the support bar’s anchor (D) on the wall.
SUPPORT BAR INSTALLATION
E
1
F
G
2
F
3
F
D
4
C
G
5
G
C
6
D
