Jacuzzi ERIKA 48 - Wall Track Installation

9

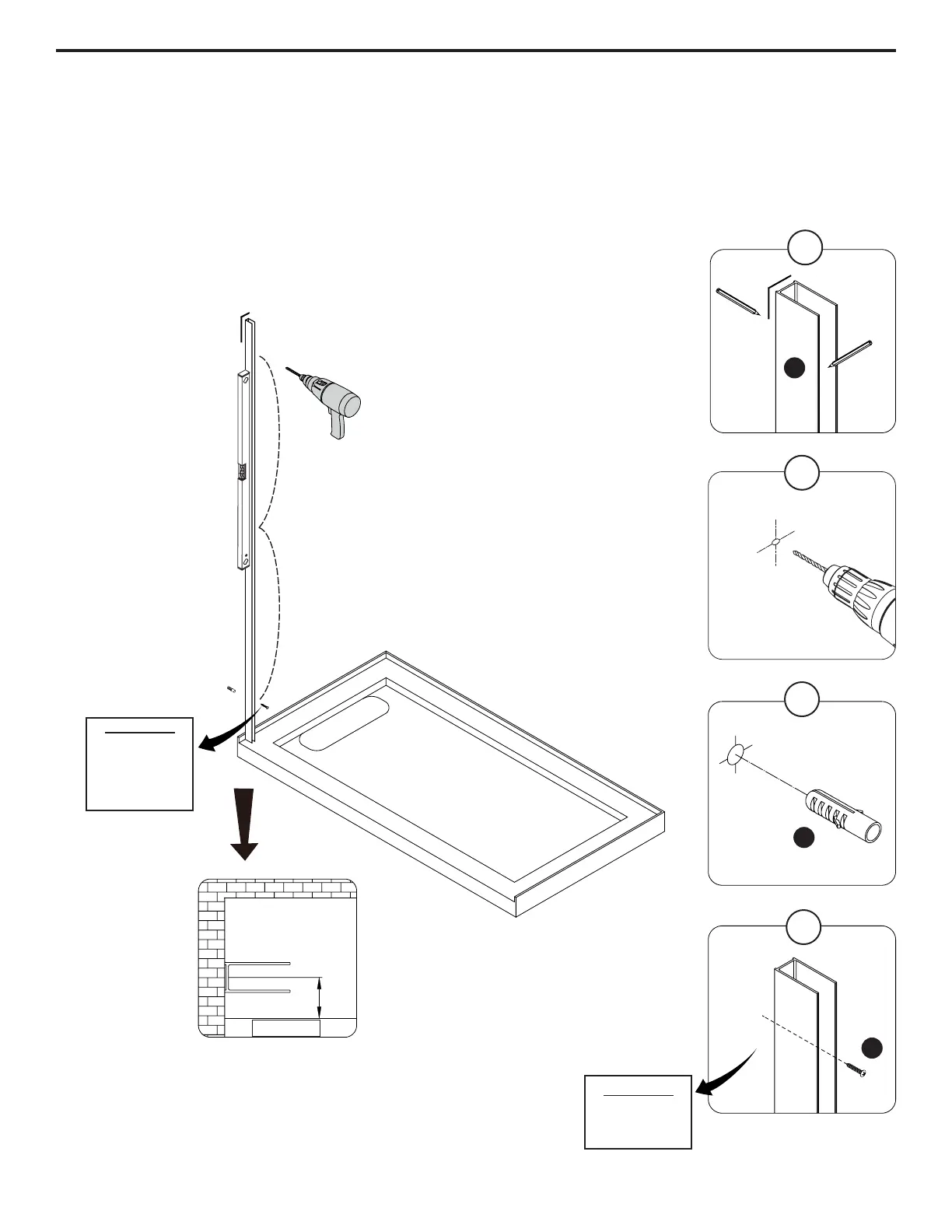

1. Level the track (B) and mark the track holes’ positions.
2. RemovethetrackanddrillpilotholesinthemarkedlocationswithaΦ8mm(5/16in)drillbit.
3. Insertthewallanchors(FF)usingarubbermalletuntilthewallanchorsareushwiththewall.
4. Replace and secure the track (B) with screws (EE). Do not overtighten.
WALL TRACK INSTALLATION
Helpful Hint
Make sure there
is a support stud
located behind the
drywall, behind the
tracks!
28mm
1 1/8in
Base edge
Φ8mm
5/16in
Helpful Hint
Do not overtighten!
This may crack the
acrylic or tile walls.
FF
EE
2
B
3
1
4
