65
J-300

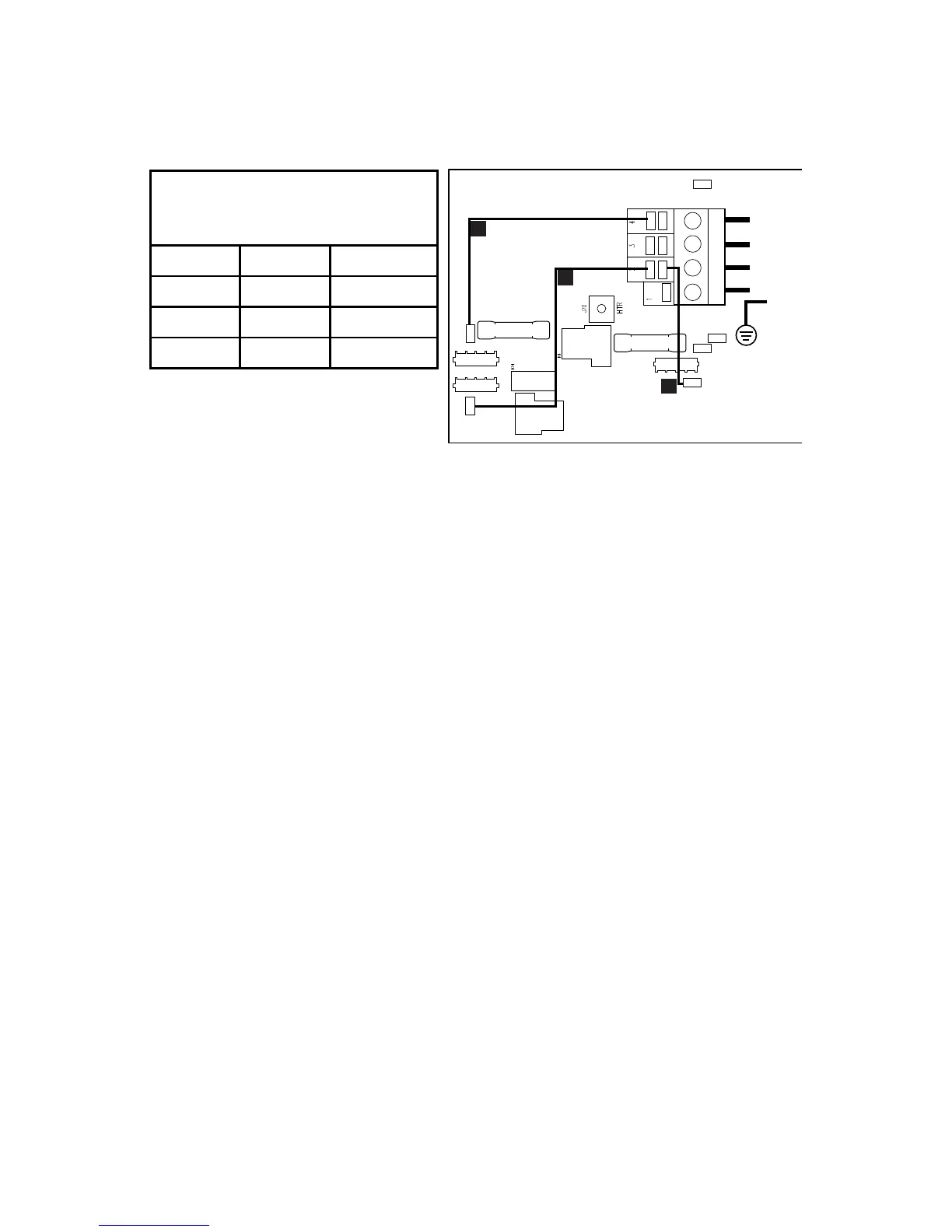

17.5 Three Service 50Hz Connection
Wiring for export models with a three service breaker. The jumper wiring
is shown below.
1
2
3
GRN
L3 BRN
L1 BRN
N1 BLU
L2 BRN
A
B
C
D
P1 2SPD
UV
A/V
30A (PMP 1)
30A (PMP 2)
J33
J36
J53
J41
J46
J47
J51
J59
J38
J44
J49
F4
F6
J35
J37
ALL MODELS
Three Service Jumper Wiring
(except the J315 and J325)
Wire From To
1 J38 J51
2 J59 J41
3 J37 J36
BREAKER TERMINAL
CONNECTIONS
L1 = Heater & Transformer
L2 = Pump 1 and other components
L3 = Pump 2
