Jacuzzi J - 425 - J-495 Massage;Waterfall Selector Diagram

Page 24
J-400

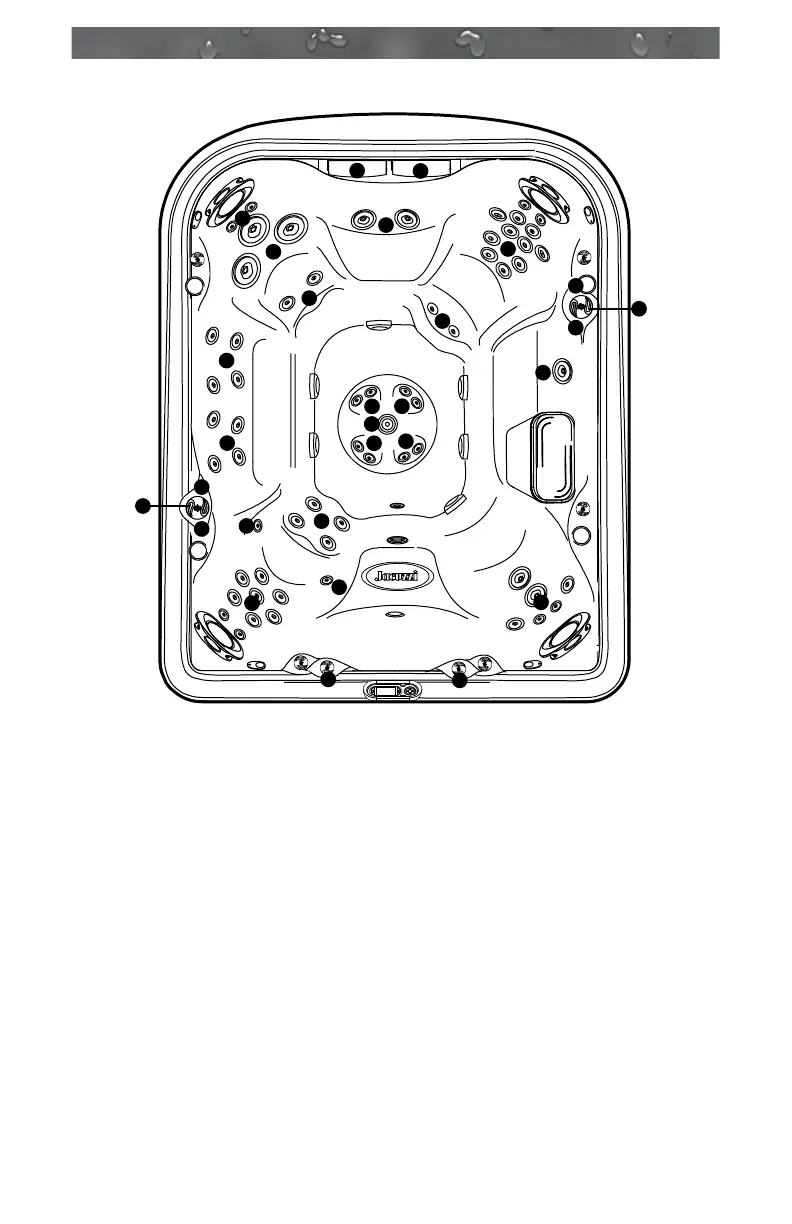

9.2 J-495 Massage/Waterfall Selector Diagram
b
3
3
5
4
1b
4
4
4
4
5
5
4
1b
1b
1b
1a
2a
2b
2b
a
2
2a
1a
1a
1a
1
b
a
Massage Selector (1)
• Massageselector1divertsjetspumpNº2outputbetweenjetsgroups
1a-1b.
Massage Selector (2)
• Massageselector2divertsjetspumpNº1outputbetweenjetsgroups
2a-2b.
Waterfall Selector (5)
• Waterfallselector(5)controlscirculationpumpoutputtowaterfall.
Jets Without Massage Selector Controls (4)
• Jets(4)arealwaysonwhenjetspump3isrunning.
Mass Aspiration Jet Flow Control Valve (3)
• Valve(3)controlsoutputtofootwellIXJetwhenjetspumpNº3is
running.
Spa operation subject to change without notice
