Jacuzzi J - 425 - J-425 Massage;Waterfall Selector Diagram

Page 39
J-400

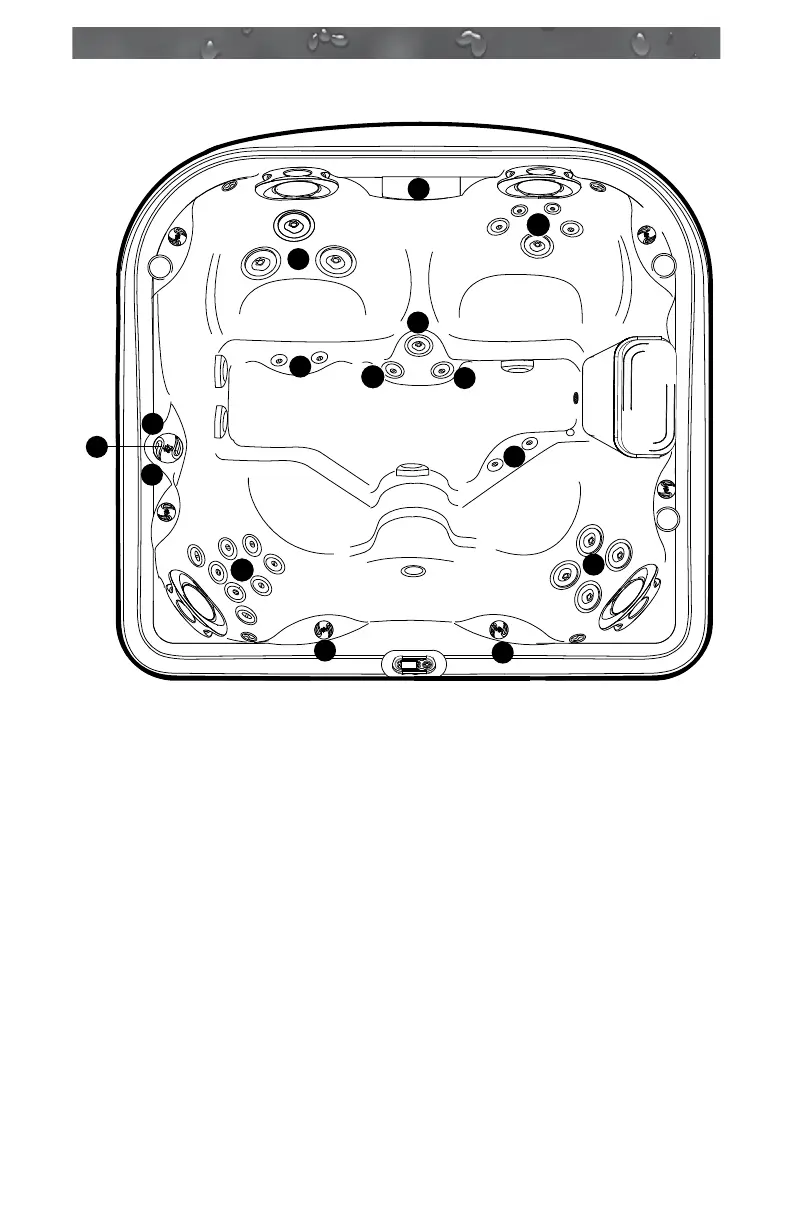

9.17 J-425 Massage/Waterfall Selector Diagram
1a
1b
1b
4
4
a
b
4
4
4
1
3
3
2
2
Massage Selector (1)
• Massageselector1divertsjetspumpNº1outputbetweenjetgroups
1a-1b.
Waterfall Selector (3)
• Waterfallselector(3)controlscirculationpumpoutputtowaterfall.
Mass Aspiration Jet Flow Control Valve (2)
• Valve(2)controlsoutputtofootwellIXJet.
Jets Without Massage Selector Controls (4)
• Jets(4)arealwaysonwhenjetspumpNº2isrunning.
Spa operation subject to change without notice
