73
a specific guide to maintaining water quality, consult the Jacuzzi®
system guide on water treatment and the relevant catalogue, and
contact your authorised Jacuzzi retailer.
CLEARRAY™ Water Purification System
The CLEARRAY water purification system is an exclusive tech-
nology that takes advantage of natural ultraviolet radiation to
eliminate bacteria, viruses and algae potentially present in the
hot tub water. Ultraviolet light, also known as UV-C or germi-
cidal light, neutralises these organisms, also breaking down the
DNA, so as to prevent reproduction.
The system is equipped with a power converter whose operation
is signalled by two LEDs: the green one indicates that the device is
powered, while the red one indicates that it is operating correctly.
WARNING!
DO NOT LOOK AT LIT BULB
SEVERE EYE DAMAGE
OR BLINDNESS CAN OCCUR
1
2
0
-
2
3
0
V
IMPORTANT: After one year, the quartz pipe must be clea-
ned and the lamp replaced.
If the UV timer has been programmed correctly (please refer
to the corresponding section), at the end of the allotted time
shown on the display, a message will appear indicating that a
new UV lamp needs to be installed and the timer reset.
UV lamp replacement and maintenance
of the quartz tube
To access the Clearray® device, it is necessary to remove the front
panel (or that of the audio system) and the right angle panel.
These operations should only be carried out by qualified
installers. Please read the instructions carefully before
carrying out any operations involving the opening of the
Clearray® device.
WARNINGS
Do not look towards the UV lamp if it is turned on: this
can cause severe eye damage!
Do not power or turn on the Clearray® device during
maintenance operations.
Improper use of the device can cause UV-C rays to es-
cape, which even in small amounts can damage your
skin and eyes.
Do not attempt to start damaged devices.
Disconnect the hot tub from the power supply.
Empty the hot tub if you intend to replace or clean
the quartz tube.
Allow the UV lamp to cool down before removing the
quartz tube.
Proceed as follows::

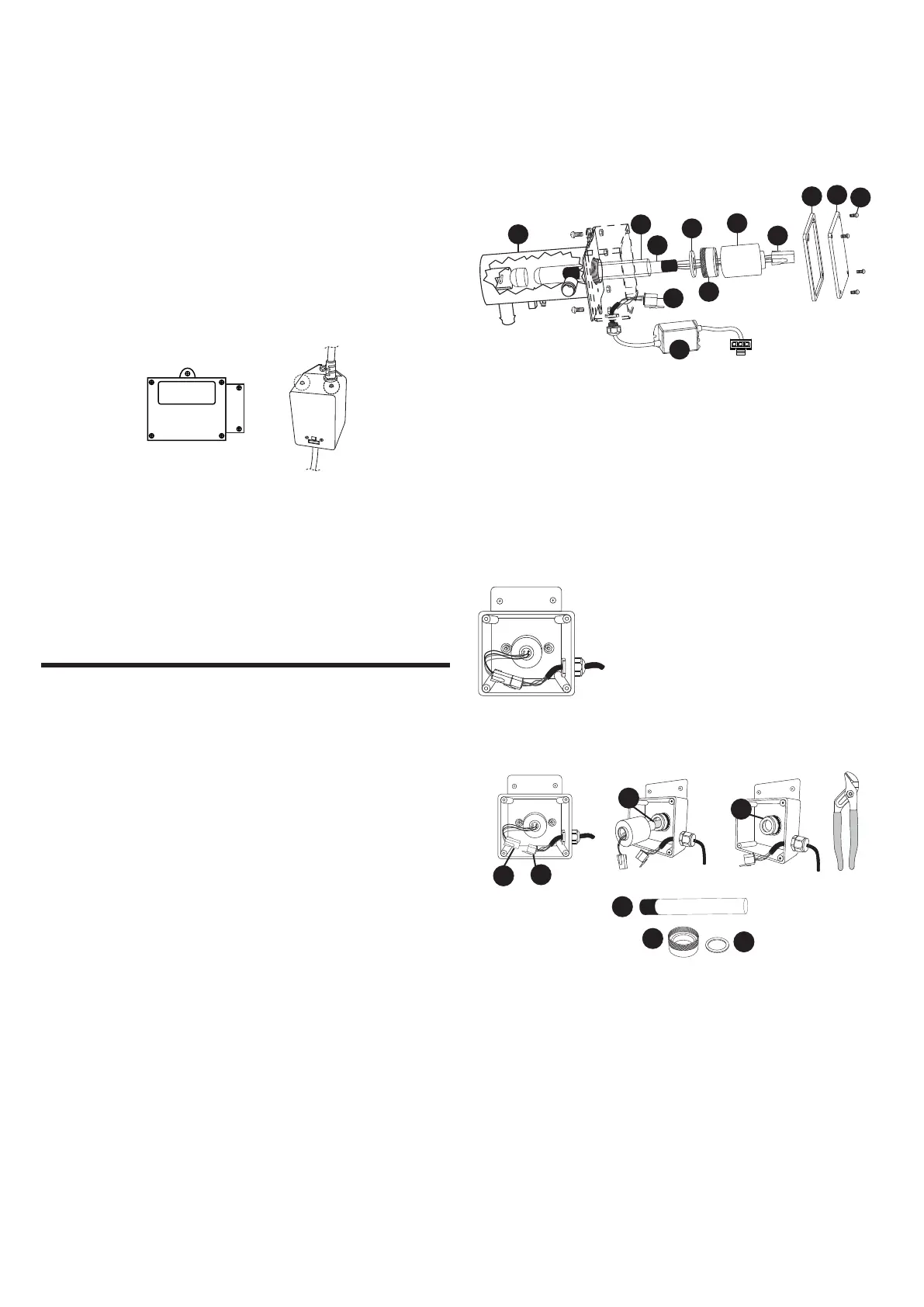

Note: the layout and connection of the device may vary from
model to model.
1
2
3
4
5
6
7
8
9
10
12
11
1- After disconnecting the hot tub from the electrical network
and emptying it, wait for the UV lamp to cool down.
Note: the hot tub must be emptied in case of maintenance
or replacement of the quartz tube.
It is not necessary to empty the tub when changing the UV
lamp.
2- Once the UV lamp has cooled down, remove the cover (9)
and the gasket (8) by removing the screws (10).
t
3- Disconnect the UV lamp connector (7) from the power supply
(11) .
7
11
3
8
5
2
4
Do not handle the UV lamp with bare hands; use a pair of
latex gloves to handle the UV lamp.
4- Gently pull out the lamp (3) from the quartz tube.
5-Unscrew the nut (5) using a suitable wrench if necessary.
Keep the washer (4) for the next step.
6- Now it is possible to proceed with cleaning or replacing the
quartz tube (please refer to the corresponding section).
7- Cleaning the quartz tube. Use a paper towel or a cotton
rag; if necessary, use a descaling product (such as those used
