Page 13
4. The electrical supply for this product must include a suitably rated switch
or circuit breaker to open all ungrounded supply conductors to comply
with Section 422-20 of the National Electrical Code/USA, ANSI/NFPA
70. The disconnecting means must be readily accessible to the spa’s
occupant but installed at least 5 feet (1.5m) from spa water.
5. The electrical supply for this product must include a suitably rated
isolating switch and circuit breaker to comply with local electrical
regulations. This RCD/GFCI circuit breaker must be installed at the
power supply in the house electrical box.
6. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC Article
680-42/USA.
7. For Australia/ New Zealand, the spa should be supplied through
a residual current device (RCD) with a rated tripping current not
exceeding 30mA (IEC 60335-2-60).
8. To gain access to the spa’s power terminal block, you will need to
remove the corner and center cabinet panels.

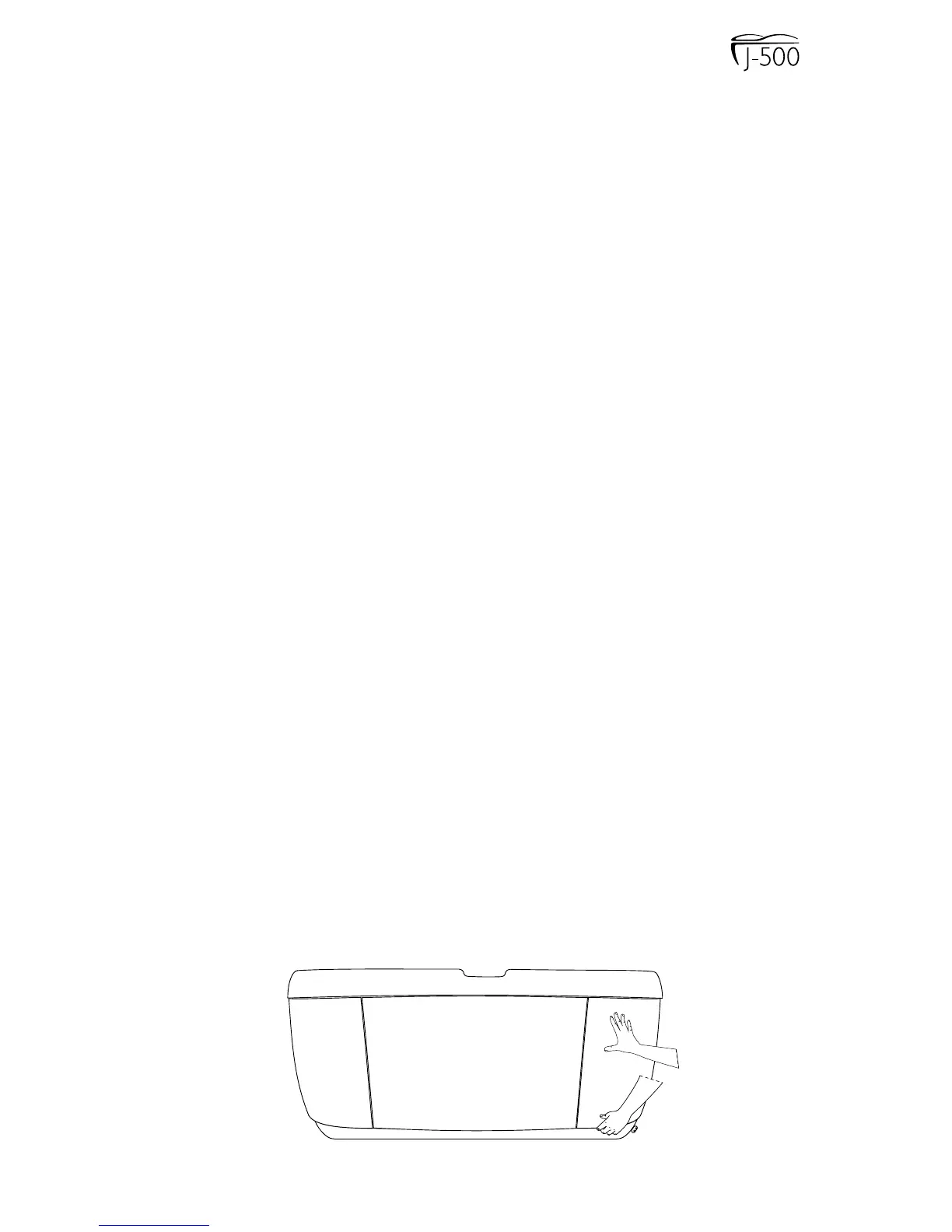

9. Grab one of the corner panels, from the bottom, where it touches the
bottom pan. Then gently pull the panel forward to unsnap it from the
holding clip, Figure 6.0a. Place the corner panel in a safe location
to prevent from damaging it. Repeat the steps to remove the other
corner panel.
10. Now you need to remove the center panel. Grab the sides of the
panel and gently pull the cabinet forward until all the clips have been
release then pull up to remove, Figure 6.0b. Place the panel in a safe
location to prevent from damaging it.
11. Select the power supply entrance you want to use, Figure 6.0c.
Make sure to install a 3/4" electrical tting and conduit through the
large opening provided in the bottom of the control box so you can
feed the cable through to the terminal block.
12. Then remove the door screws for the access door on the control box
(Figure 6.0d).
13. Connect wires to the terminal block (Figures 6.0d-6.0e). ALL WIRES
MUST BE SECURELY CONNECTED or equipment damage could
result!
14. Install the control access box door and reinstall the cabinet side
panels.
Figure 6.0a
Equipment Area
To Next Page
