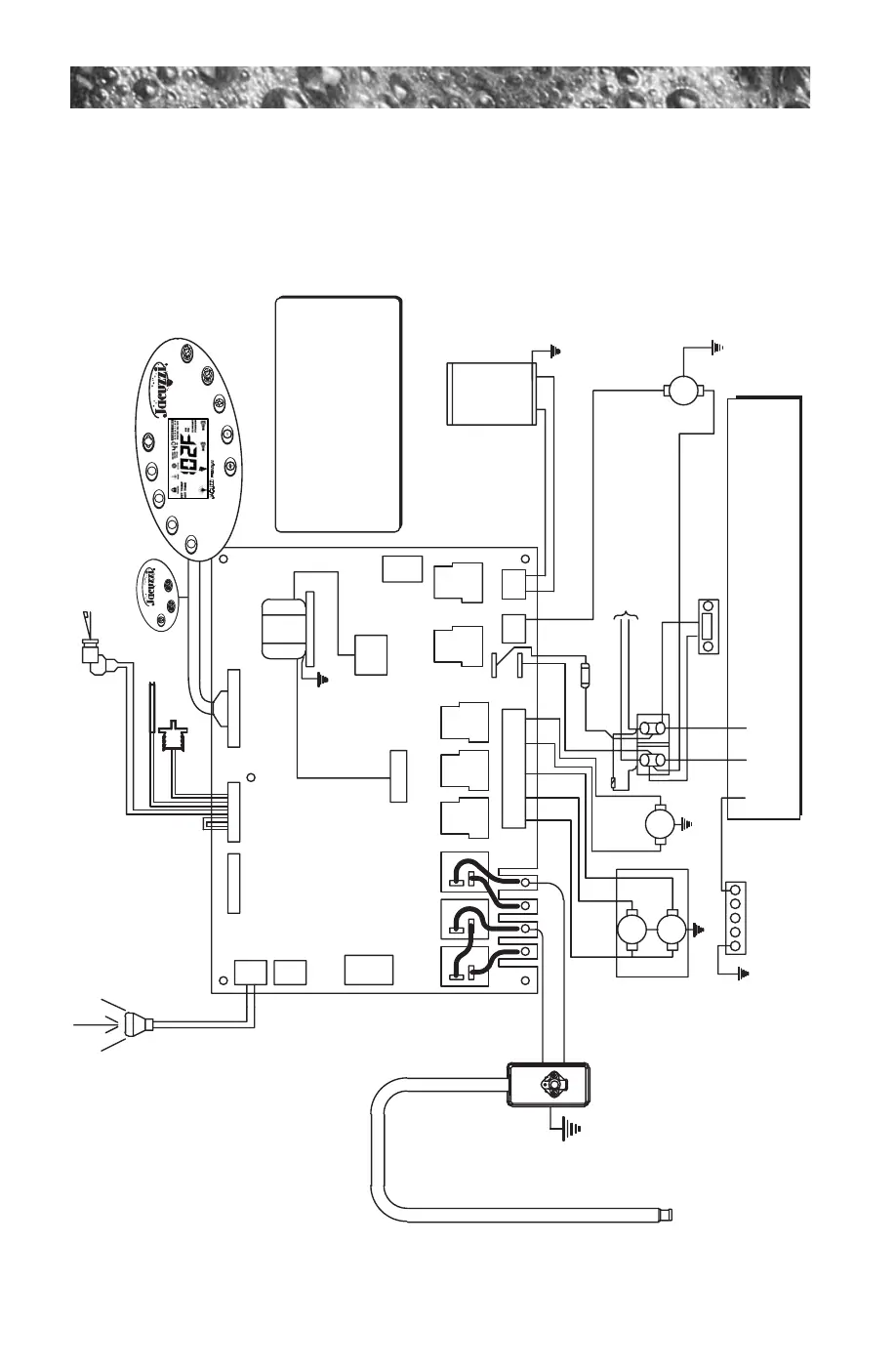

Power Input: 240 VAC, 60A / 50A / 30A
1 PHASE, 60Hz; USE MIN. 6 AWG COPPER
CONDUCTORS ONLY
Remote
Panel
Main Panel
Transformer T1
Flow
Switch
HI-Limit Freeze Sensor
Temperature
Sensor
Spa Light
Options Sensors LCD Panel
J8
J4
J3
TB5
TB2
TB1
TB3
PUMP 1
PUMP 2
TB1
TB6
TB4
TB3
J6 J7
K13
K1 K2 K3 K4 K5 K6
J1
J2
K7 K8
HEATER
5.5 kW
1
12 12
2
CD Ozone
(Optional)
13 5 810
WHT
WHT
WHT
WHT
LO
HI
HI
BLK
BLK
BLK
BLK
RED
RED
F1
30A, 250 V
SC-30
To Heater
Relays
STEREO
(Optional)
Z1
RED
GRN
BLK
CIRCULATION
PUMP
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received including
interference that may cause
undesired operation.
To Next Page
