Jacuzzi LCD Series User Manual

Power Input: 230-240 VAC, 40A / 30A / 20A 1-Phase, 50Hz; USE MIN. 6 AWG (10 mm
2
)
COPPER CONDUCTORS ONLY
J8
J3
TB7
TB1
TB1
TB6 TB5
TR4
TR2
J6 J7
OPTIONS SENSORS LCD PANEL
Spa Light
HEATER
2.7 kW
NNLL
1 2 3 1 2 1 2
From
TB1
NN
N
N
L
L
N
L
L
PUMP 2
To Heater Relays
HI
HI
LO
BLU
BRN
BLK
GRN
Circulation
Pump
F1 20A, 250V SC-20
This equipment was tested and found to be fully compliant with EN55014-1 (1997), EN55014-2 (1997), EN61000-3-2 (1995), EN61000-3-3 (1995), EN55022 Class B, and EN50082-1 (1992) Standards.
STEREO (Optional)
CD Ozone
(Optional)
2 1 2 1
Select
Cycle
Mode
Display
y
y
Remote Panel
Main Panel
Flow Switch
HI-Limit Freeze Sensor
Temperature Sensor
Page 44

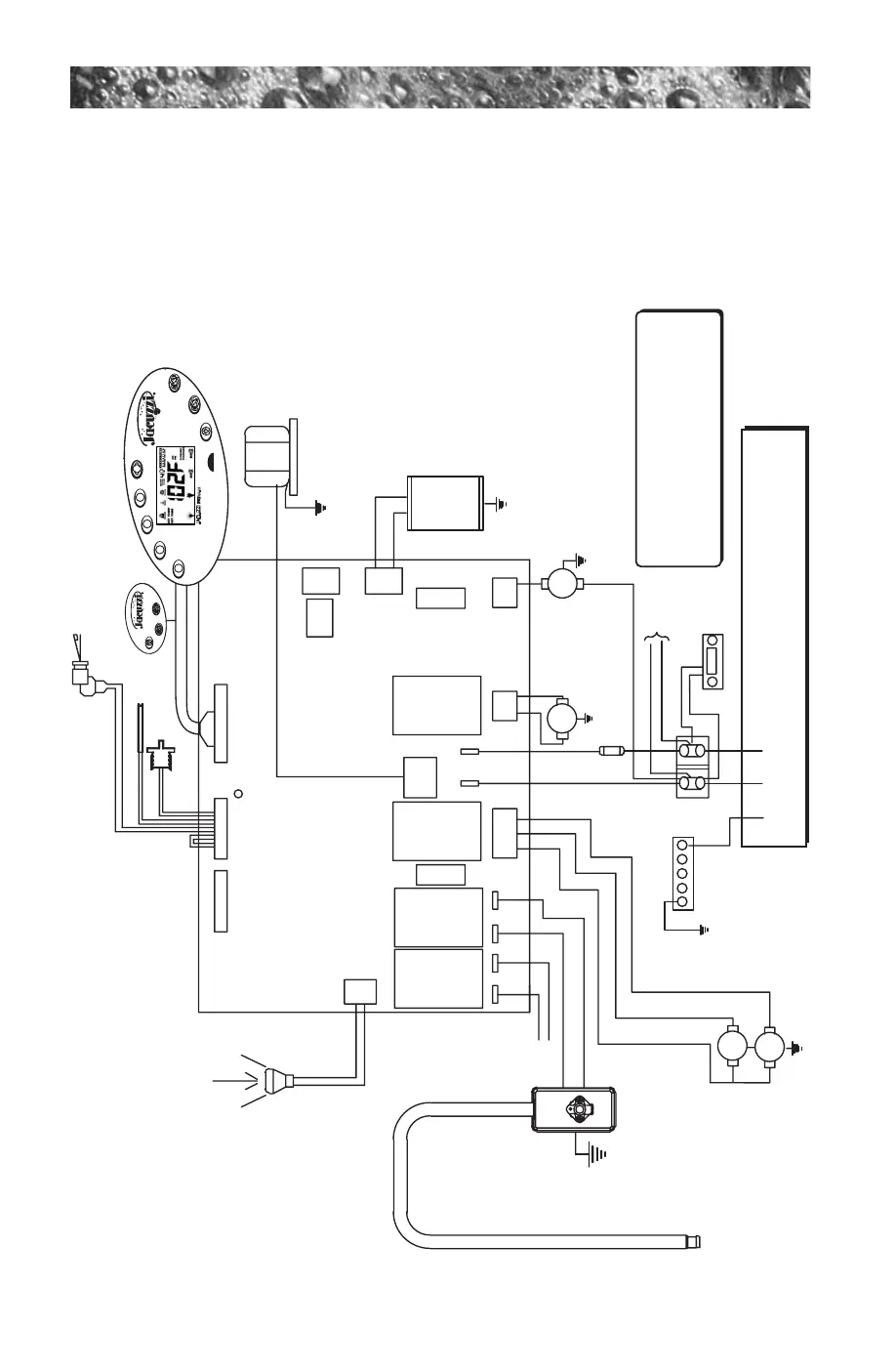

18.0 Wiring Diagram
J-350/J-360/J-370 Models (Export 50Hz)
