CONTROL PANEL
PUMP/MOTOR
120VAC 20A
Dedicated GFCI
Circuit Required
CONTROL BOX
120 VAC
PUMP
FOR MODELS
WITH IN-LINE
HEATER
OR
PUMP
PUMP/MOTOR
120VAC 15A
Dedicated GFCI
Circuit Required
G
G

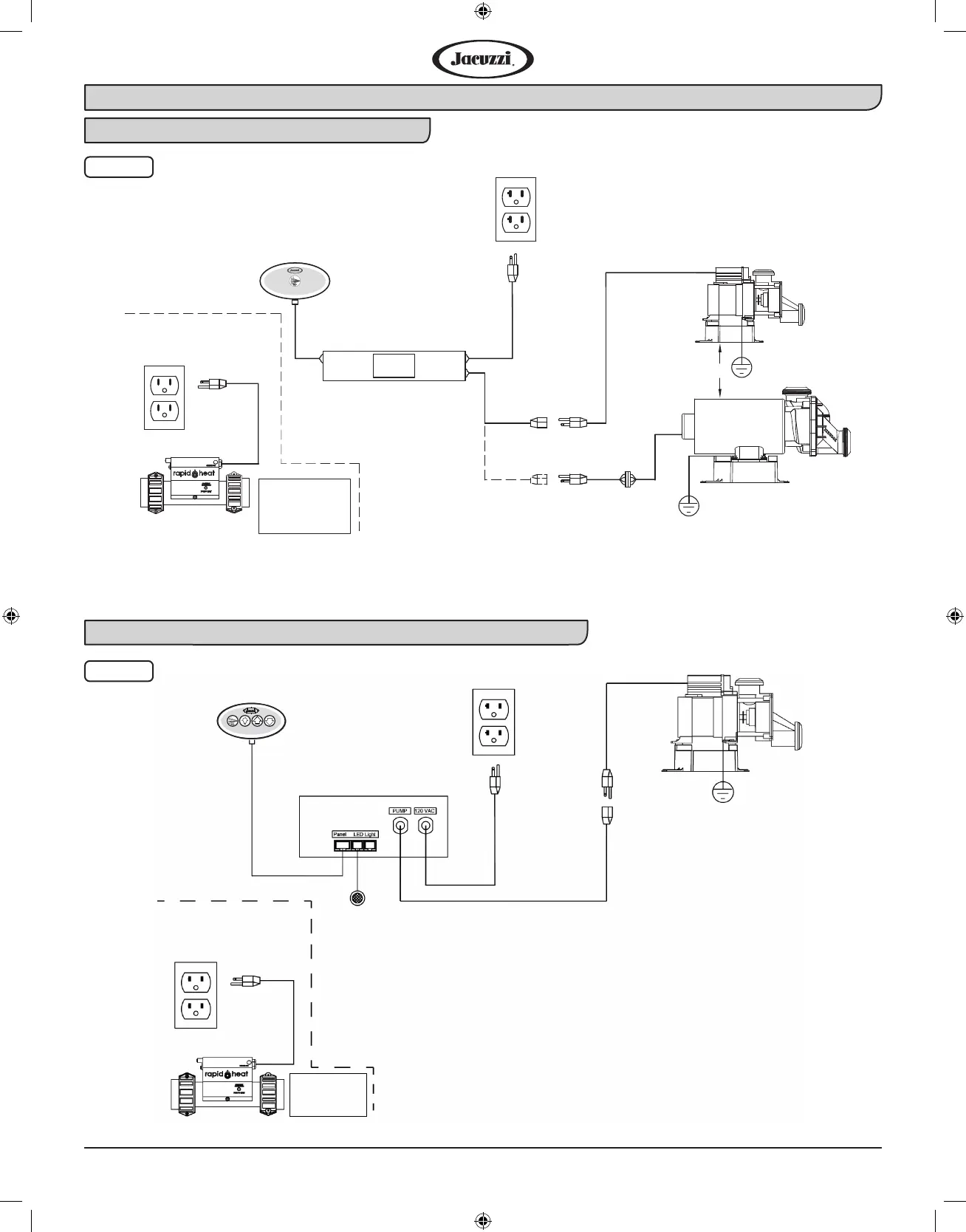

J2 Control Panel Whirlpool Schematic Diagram
CONTROL PANEL
120VAC
PUMP
PUMP/MOTOR
CONTROL BOX
120V 20A
Decidated GFCI
Circuit Breaker
120V 15A
Decidated GFCI
Circuit Breaker
FOR MODELS
WITH IN-LINE
HEATER
G
CHROMATHERAPY
LIGHTS
Reference Illustration for a Whirlpool System
Fig. 6
J2 Control Panel Whirlpool with Chromatherapy Schematic Diagram
Fig. 7
