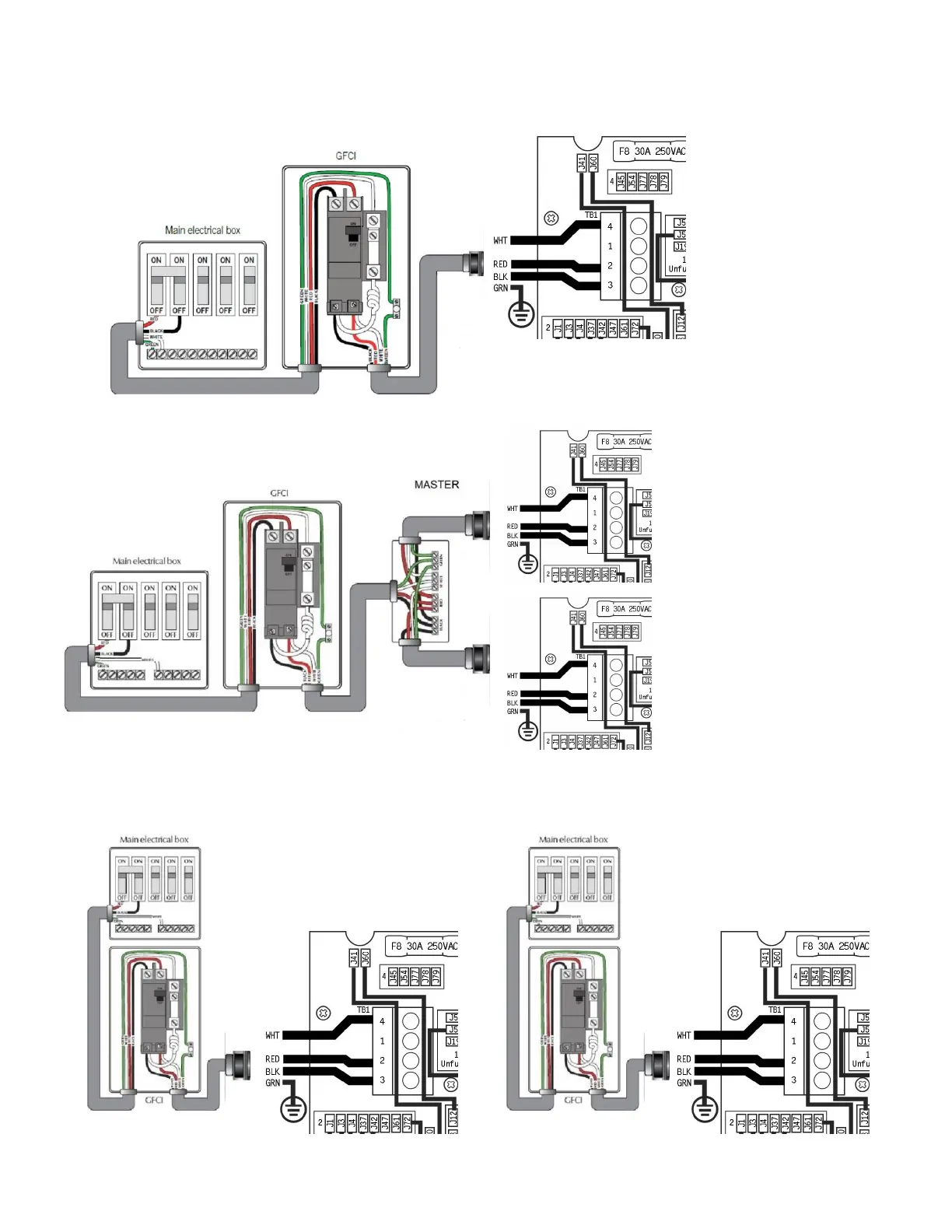

16.0 Typical Swim Spa Wiring Diagrams (240VAC - North America)
240 VOLT 60 HZ THREE PHASE GFCI WIRING
240 VOLT 60 HZ SINGLE PHASE GFCI WIRING
240 VOLT 60 HZ DUAL PHASE GFCI WIRING
